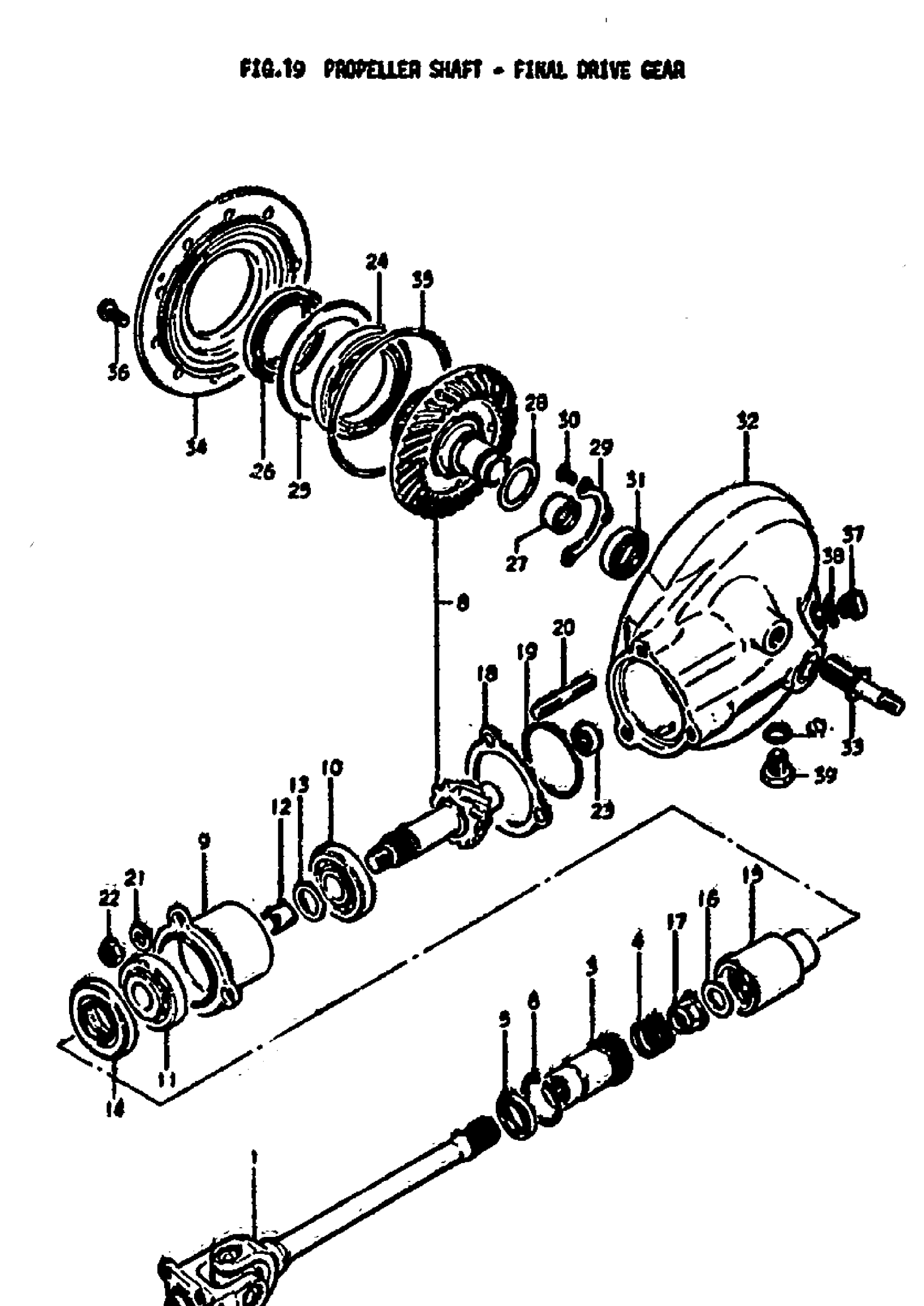

Suzuki GS850G (1979) PROPELLER SHAFT-FINAL DRIVE GEAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 27100-45100.

27100-45102

Unavailable

2

NO DESCRIPTION AVAILABLE | 8x16 This part replaces 09103-08031.

09103-08348

Unavailable

3

COUPLING, PROPELLER SHAFT

27171-45101

Unavailable

4

SPRING

09440-27005

Unavailable

5

OIL SEAL

09283-30026

$10.40

6

CIRCLIP

09381-40003

$4.64

7

NO DESCRIPTION AVAILABLE | INC. NO. 8~40; Includes Item(s) 8 - 40 This part replaces 27300-45820.

27300-45822

Unavailable

8

FINAL GEAR SET (NT:11/34) | NT:11/34 This part replaces 27300-45810.

27300-45811

Unavailable

9

HOUSING, DRIVE BEVEL GEAR

27441-45100

Unavailable

10

BEARING, REAR

09265-25013

$63.43

11

BEARING, REAR This part replaces 09265-25014.

09265-25024

$60.80

12

SPACER | 25.2x30x3.5

09180-25057

Unavailable

13

SHIM | 0~3)T:1.60

09181-25006

Unavailable

13

SHIM | 0~3)T:1.62

09181-25007

Unavailable

13

SHIM | 0~3)T:1.64

09181-25008

Unavailable

13

SHIM | 0~3)T:1.66

09181-25009

Unavailable

13

SHIM | 0~3)T:1.68

09181-25010

Unavailable

13

SHIM | 0~3)T:1.70

09181-25011

Unavailable

13

SHIM | 0~3)T:1.80

09181-25012

Unavailable

13

SHIM | 0~3)T:1.90

09181-25013

Unavailable

13

SHIM | 0~3)T:2.00

09181-25014

Unavailable

14

OIL SEAL

09283-32017

Unavailable

15

COUPLING, FINAL DRIVE GEAR

27172-45100

Unavailable

16

WASHER | 14x29x4

09160-14021

$6.63

17

NUT

09159-14010

$14.12

18

SHIM | 0~2)T:0.15

27445-45100

Unavailable

18

SHIM | 0~2)T:0.30

27445-45102

Unavailable

18

SHIM | 0~2)T:0.35

27445-45101

Unavailable

18

SHIM | 0~2)T:0.40

27445-45103

Unavailable

19

O RING

09280-63004

$4.75

20

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

21

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

22

NUT

09159-10027

$3.10

23

BEARING

09263-24012

$44.63

24

BEARING, RH

09262-70001

$140.93

25

SHIM | 0~2)T:0.35

27327-45100

Unavailable

25

SHIM | 0~2)T:0.40

27327-45102

Unavailable

25

SHIM | 0~2)T:0.50

27327-45103

Unavailable

25

SHIM | 0~2)T:0.60

27327-45104

Unavailable

26

OIL SEAL

09289-70001

$51.76

27

BEARING, LH

09263-35004

$73.18

28

SHIM | 0~1)T:1.35

27326-45104

Unavailable

28

SHIM | 0~2)T:1.25

27326-45100

Unavailable

28

SHIM | 0~2)T:1.20

27326-45101

Unavailable

28

SHIM | 0~2)T:1.10

27326-45103

Unavailable

28

SHIM | 0~2)T:1.05

27326-45102

Unavailable

29

HOLDER, BEARING

27329-45100

Unavailable

30

SCREW This part replaces 02112-06128.

02112-06127

$1.84

31

OIL, SEAL

09283-30028

$9.60

32

CASE, FINAL GEAR

27450-45102

Unavailable

33

STUD BOLT

09108-10025

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 27460-45101.

27460-45103

Unavailable

35

O RING

09280-00014

Unavailable

36

BOLT This part replaces 01517-08258.

01550-08257

$2.81

37

PLUG This part replaces 09247-14012.

09247-14026

$3.76

38

GASKET

09168-14004

$1.83

39

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

40

GASKET

09168-14004

$1.83
