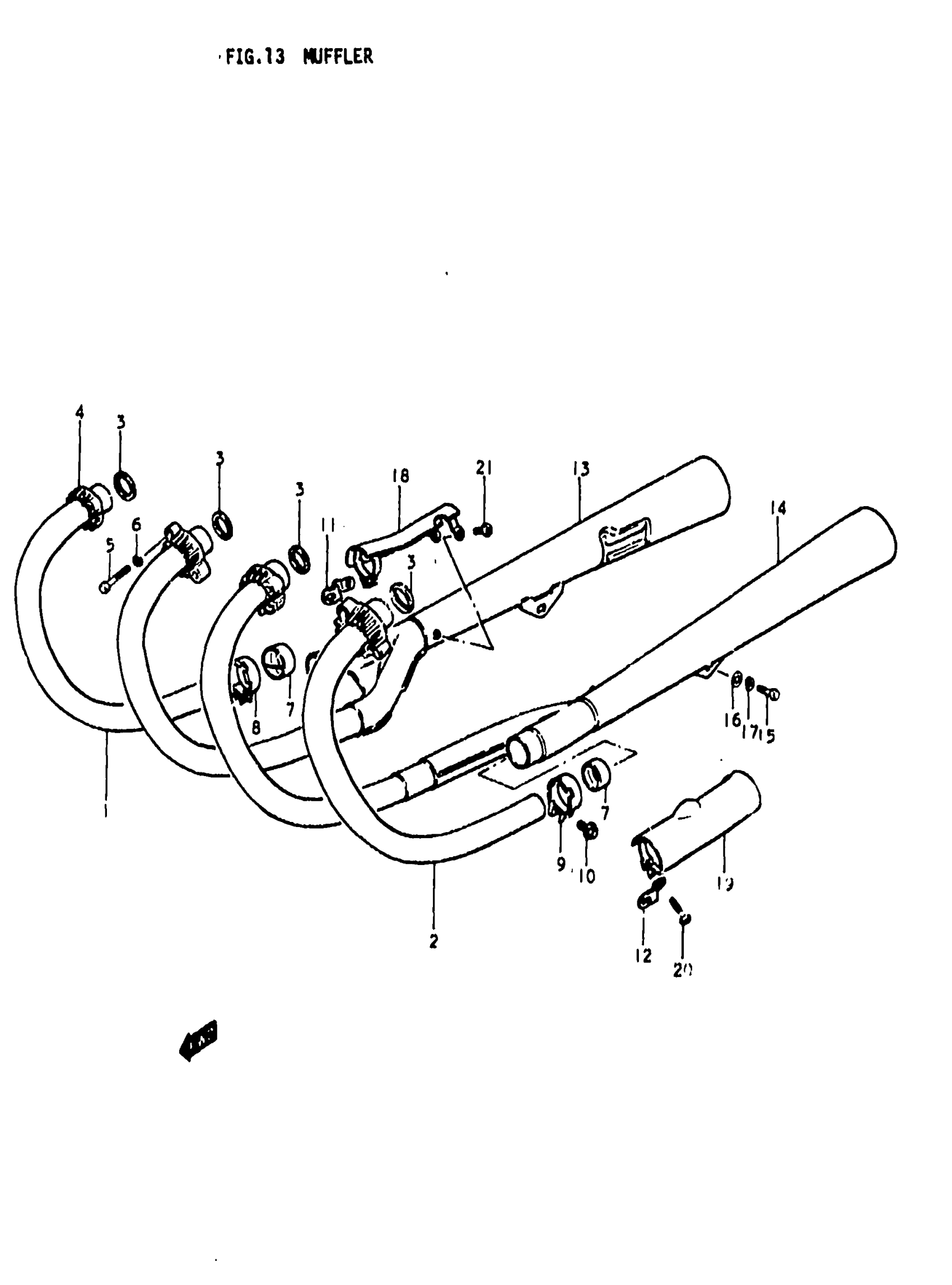

Suzuki GS850G (1979) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-45000

Unavailable

2

PIPE, EXHAUST LH

14160-45000

Unavailable

3

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

4

CLAMP

14182-44000

Unavailable

5

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

CONNECTOR, MUFFLER

14771-44010

Unavailable

8

CLAMP, CONNECTOR LH This part replaces 09402-41701.

09402-41702

Unavailable

9

CLAMP, CONNECTOR LH

09402-41702

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

PLATE, CONNECTOR RH

14475-45000

Unavailable

12

PLATE, CONNECTOR LH

14485-45000

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14310-45100.

14305-45101-H01

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 14340-45100.

14306-45101-H01

Unavailable

15

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

COVER, MUFFLER RH

14780-45000

Unavailable

19

COVER, MUFFLER RH

14790-45000

Unavailable

20

SCREW This part replaces 02112-05208.

02112-05207

$1.97

21

SCREW This part replaces 02112-05068.

09125-05122

$2.06
