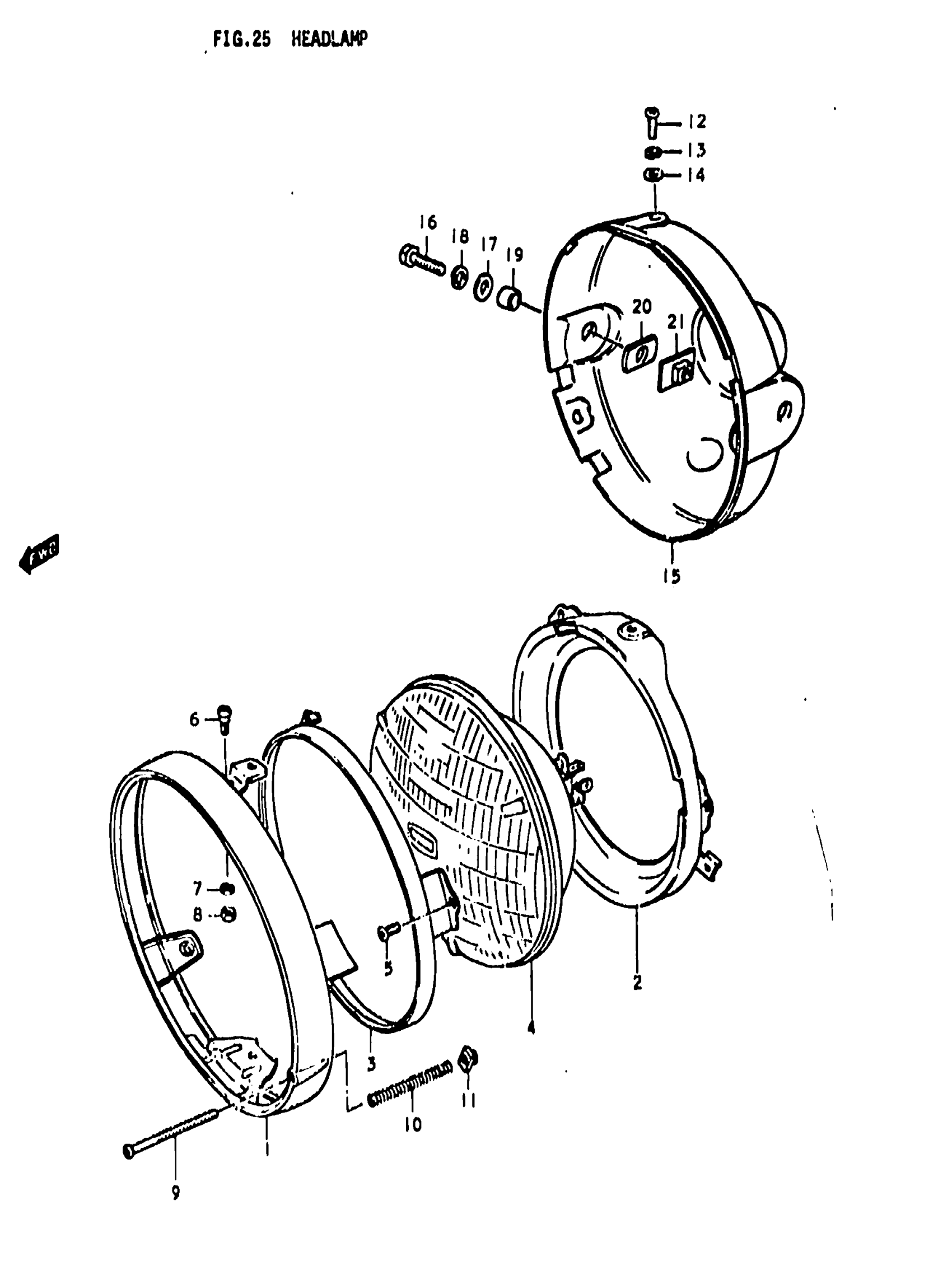

Suzuki GS850G (1979) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | KOITO; Includes Item(s) 1 - 11

35100-47610

Unavailable

1

RUM

35111-45030

Unavailable

2

RING, MOUNTING

35130-45030

Unavailable

3

RING

35127-45030

Unavailable

4

UNIT, SEALD BEAM | 12V, 50/40W

35121-31610

Unavailable

5

SCREW This part replaces 02111-04087.

02112-04087

$1.49

6

SCREW

35181-15611

$3.37

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT This part replaces 08310-11048.

08310-00047

$2.23

9

SCREW This part replaces 35151-45030.

35151-45900

$3.65

10

SPRING

35154-31900

$5.32

11

NUT

35152-15611

$3.25

12

SCREW This part replaces 09125-05022.

09125-05115

$3.20

13

WASHER This part replaces 09162-05003.

09162-05002

$1.49

14

WASHER

09169-06021

$2.36

15

HOUSING, HEADLAMP

51811-45002-291

Unavailable

16

BOLT

01204-08257

$1.96

17

WASHER This part replaces 08322-21088.

08322-01087

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

SPACER | 8x15.2x7 This part replaces 09180-08030.

09180-08187

$2.65

20

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

21

PLATE

51860-45000

$4.43
