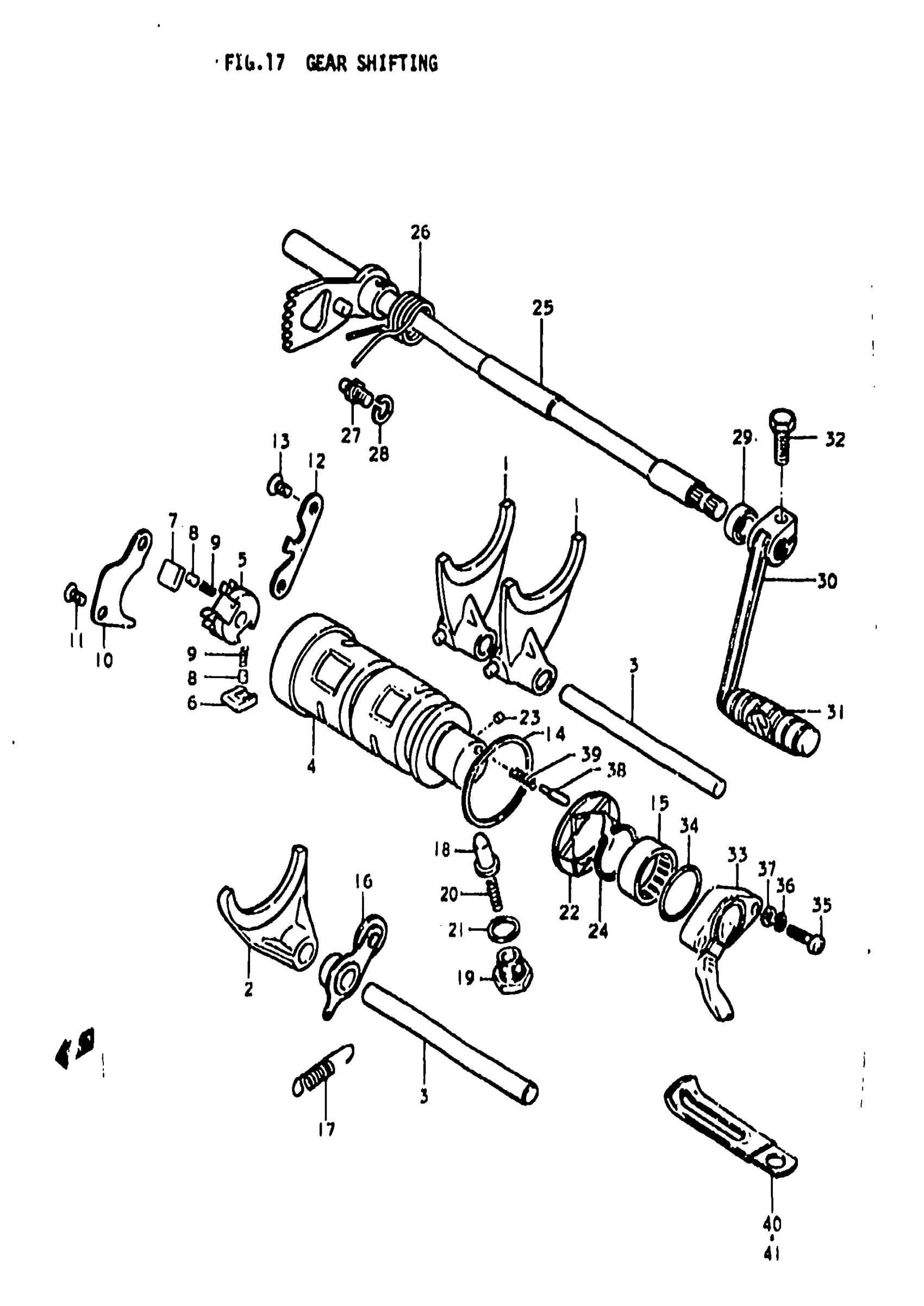

Suzuki GS850G (1979) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, DRIVEN GEAR SHIFTING | 4TH & 5TH

25211-34000

Unavailable

2

FORK, DRIVE GEAR SHIFTING | 3RD

25231-45100

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, GEAR SHIFTING

25310-45101

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER, PAWL

25331-11001

$6.38

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

WASHER | 40x45x1

09160-40001

Unavailable

15

BEARING

09263-25018

$21.39

16

STOPPER, CAM

25350-45100

Unavailable

17

SPRING

09443-09006

Unavailable

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, STOPPER

25354-30000

$9.17

20

SPRING

09440-06018

Unavailable

21

GASKER

09168-14004

$1.83

22

PLATE, STOPPER

25381-45000

Unavailable

23

PIN This part replaces 06211-04063.

04221-04069

$2.12

24

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

$1.49

25

NO DESCRIPTION AVAILABLE This part replaces 25510-45100.

25510-45101

Unavailable

26

SPRING This part replaces 09444-26012.

09444-26013

$3.10

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 31 This part replaces 25600-45100.

25600-45130

Unavailable

31

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

32

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

33

BODY, SWITCH This part replaces 37720-45011.

37720-45100

$101.35

34

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

35

SCREW This part replaces 02112-05208.

02112-05207

$1.97

36

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

37

WASHER This part replaces 08322-21058.

08322-01057

$2.13

38

CONTACT, SWITCH

09209-05011

$2.20

39

SPRING

09440-04010

$1.54

40

CLAMP | L:50 This part replaces 09404-06401.

09404-06039

$1.74

41

CLAMP | L:52 This part replaces 09404-08401.

09404-08420

$3.16
