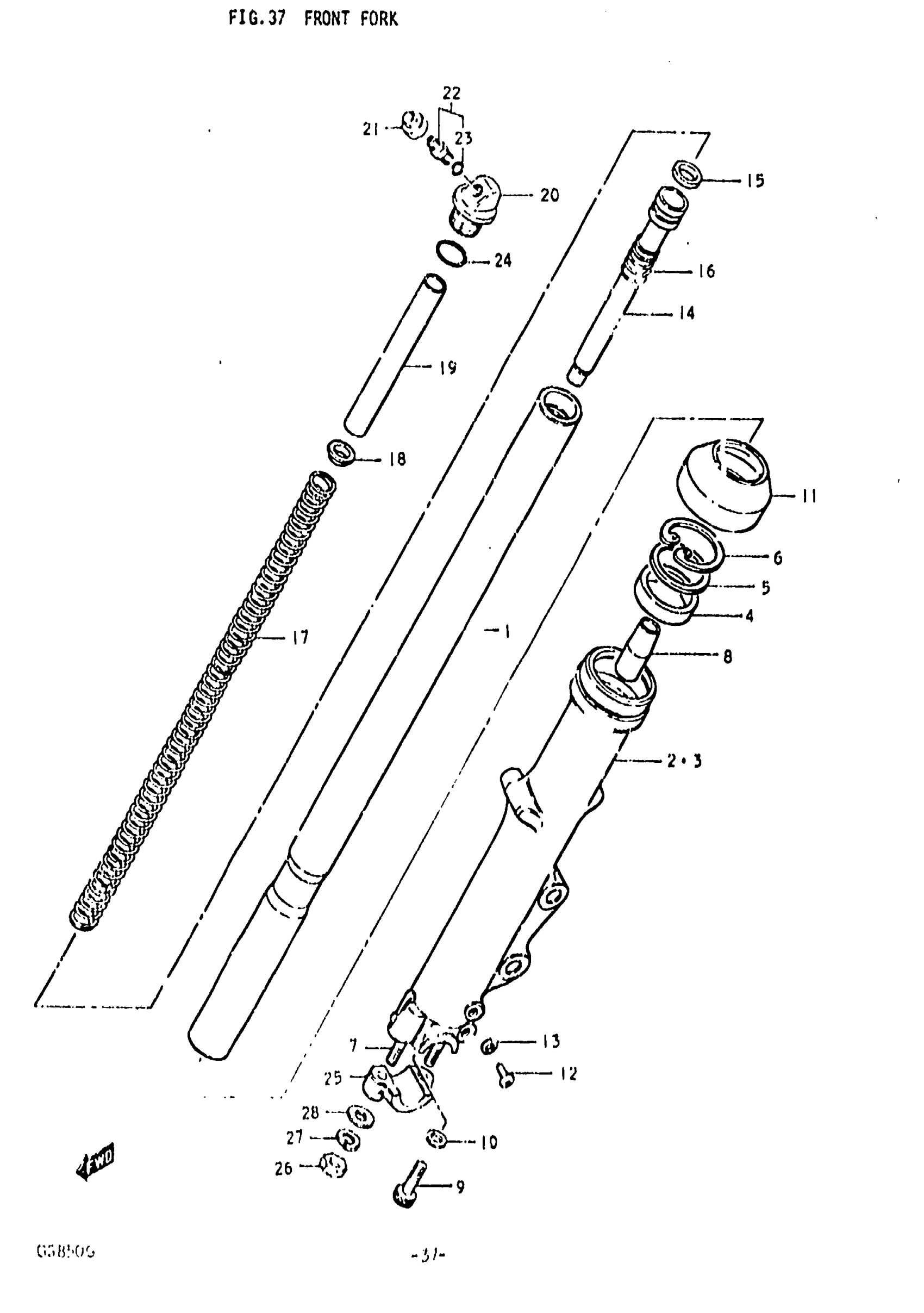

Suzuki GS850G (1979) FRONT FORK Diagram

#

Description
Price

0

DAMPER ASSY, RH This part replaces 51103-45100.

51103-45101

Unavailable

0

DAMPER ASSY, LH | Includes Item(s) 1 - 28 This part replaces 51104-45100.

51104-45101

Unavailable

1

INNER TUBE

51110-45100

Unavailable

2

OUTER TUBE, RH

51130-45100

Unavailable

3

OUTER TUBE, LH

51140-45100

Unavailable

4

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

5

WASHER

51158-49000

Unavailable

6

RING, OIL SEAL STOPPER

51156-49000

Unavailable

7

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

8

PIECE, OIL LOCK

51195-38010

Unavailable

9

BOLT

51147-16510

$4.34

10

GASKET

51148-41310

$2.26

11

DUST SEAL This part replaces 51173-49001.

51173-49002

$16.96

12

SCREW This part replaces 02111-04087.

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

CYLINDER

51146-49000

Unavailable

15

FISTON RING

51196-49000

$7.78

16

SPRING

51177-49000

Unavailable

17

SPRING

51171-49000

Unavailable

18

GUIDE, SPRING

51172-38010

Unavailable

19

SPACER

51176-45100

Unavailable

20

CAP, UPPER

51351-41211

Unavailable

21

CAP, VALVE

51294-49000

Unavailable

22

VALVE

51293-49001

Unavailable

23

O RING

51117-41211

Unavailable

24

C RING

51117-16310

Unavailable

25

HOLDER, AXLE

51132-49000

Unavailable

26

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER This part replaces 08322-21088.

08322-01087

$2.13
