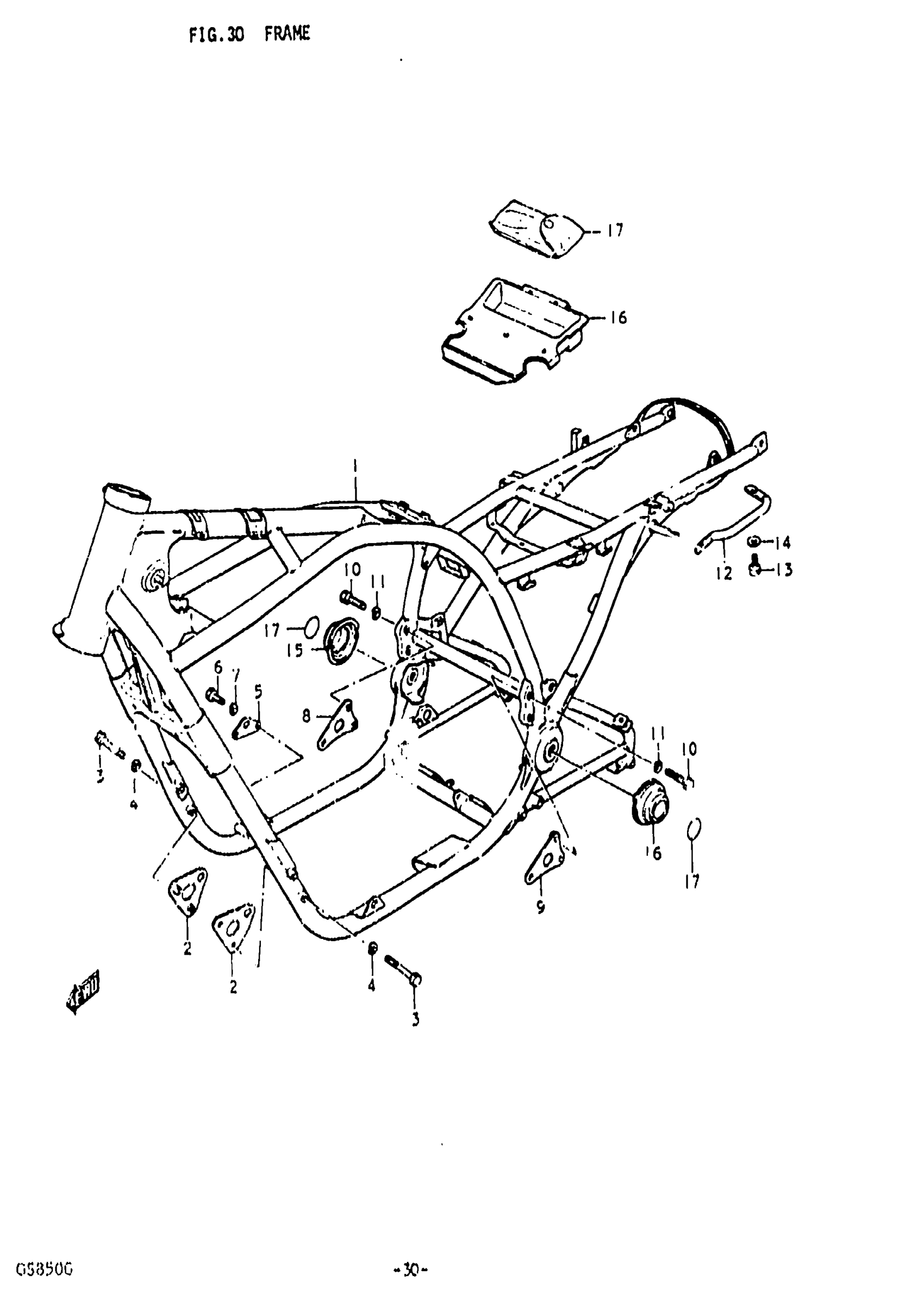

Suzuki GS850G (1979) FRAME Diagram

#

Description
Price

1

FRAME

41100-45100-019

Unavailable

2

PLATE, NO.1 (BLACK) This part replaces 41910-45100-019.

41910-45101-019

Unavailable

3

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, ENGINE MOUNTING NO.2

41993-45000-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, ENGINE MOUNTING NO.3 RH

41970-45100-019

Unavailable

9

PLATE, ENGINE MOUNTING NO.3 LH

41980-45100-019

Unavailable

10

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

GRIP, FRAME HANDLE This part replaces 41610-49000.

41610-34200

Unavailable

13

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

COVER, RH

47191-45100

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 47291-45100.

47291-45101

Unavailable

17

TAPE This part replaces 68143-45100.

68143-45101

Unavailable

18

HOLDER, TOOL This part replaces 41551-45100.

41551-45102

Unavailable

19

TOOL ASSY This part replaces 09800-00199.

09800-21025

Unavailable
