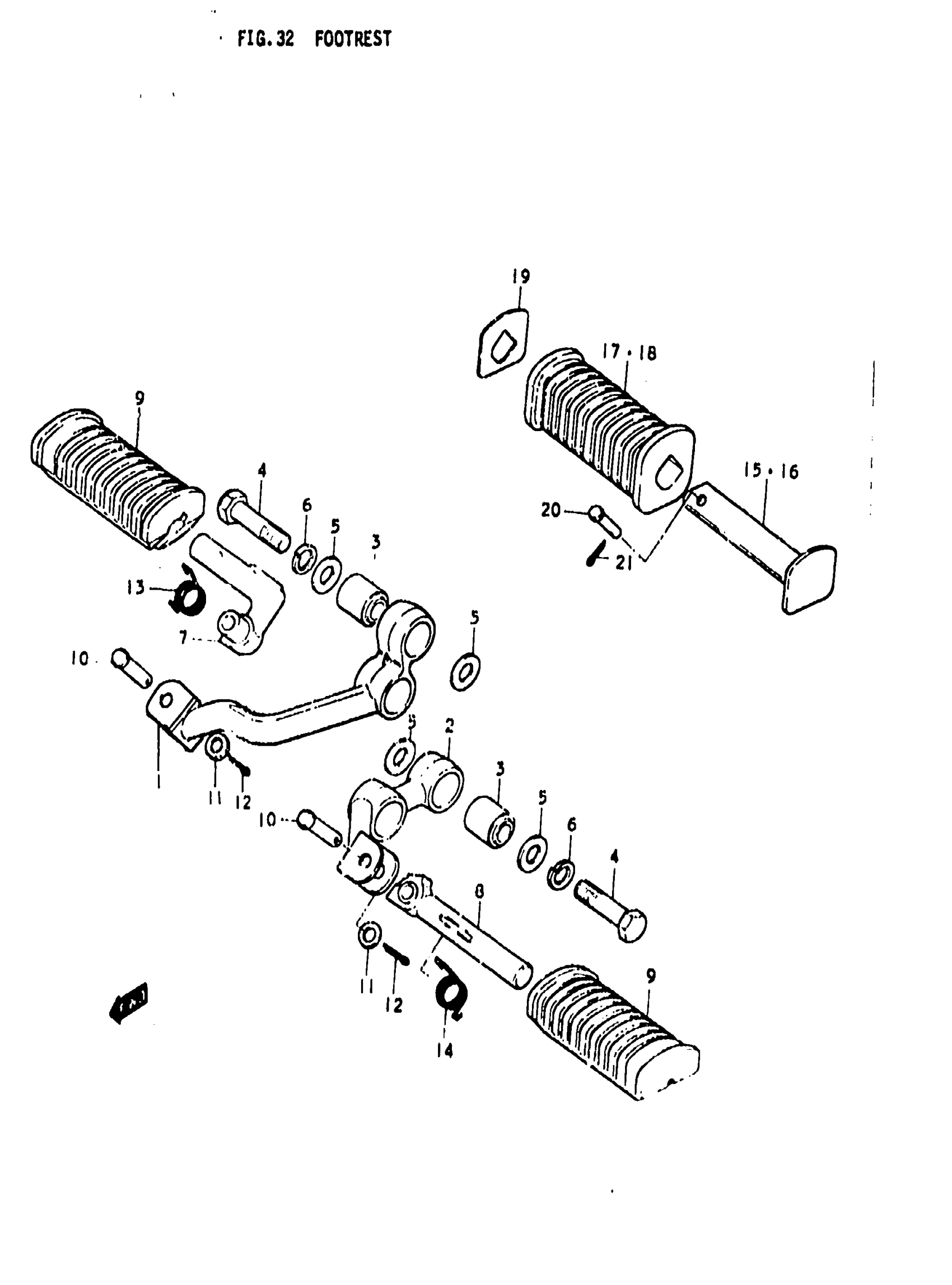

Suzuki GS850G (1979) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-45100-019

Unavailable

2

BAR, FRONT FOOTREST LH

43520-45010-019

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

7

BAR, FRONT FOOTREST NO.2 RH

43516-45010

Unavailable

8

BAR, FRONT FOOTREST NO.2 LH

43526-45010

Unavailable

9

RUBBER

43551-45010

Unavailable

10

PIN

09200-08029

Unavailable

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

SPRING, RH This part replaces 09448-19007.

09448-19010

Unavailable

14

SPRING, LH This part replaces 09448-19008.

09448-19011

Unavailable

15

BAR, PILLION RH This part replaces 43610-45000.

43610-45001

Unavailable

16

BAR, PILLION LH This part replaces 43620-45000.

43620-45001

Unavailable

17

RUBBER This part replaces 43612-45000.

43612-45001

Unavailable

18

RUBBER This part replaces 43622-45000.

43612-45001

Unavailable

19

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

20

PIN

09200-06010

$1.72

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
