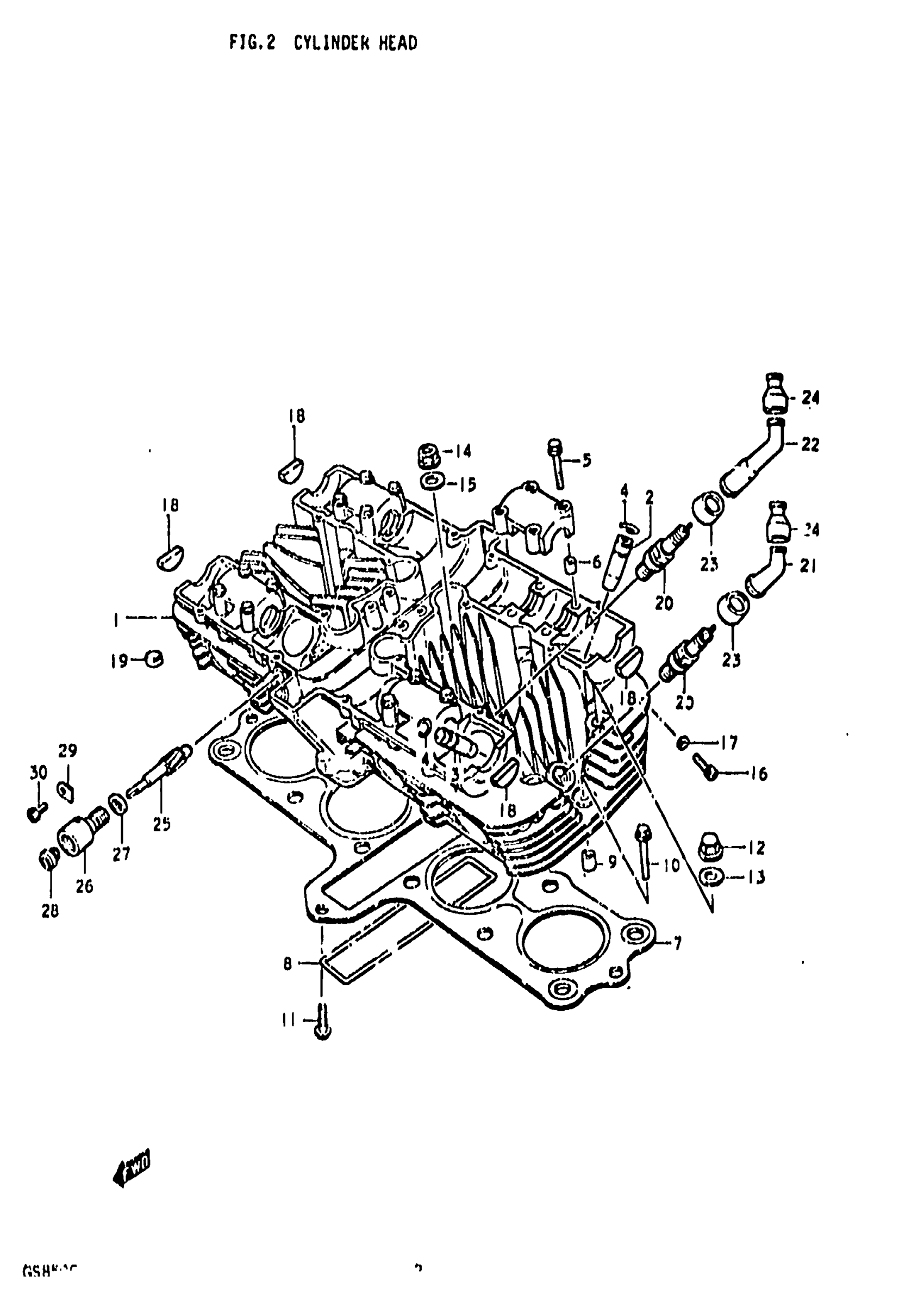

Suzuki GS850G (1979) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-45820

Unavailable

2

GUIDE, INTAKE VALVE This part replaces 11115-45722.

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE This part replaces 11116-45722.

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET This part replaces 11141-49002.

11141-49410

Unavailable

8

O RING

09280-99003

Unavailable

9

PIN

04211-11189

$1.78

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

11

BOLT This part replaces 01517-06308.

01550-06307

$2.69

12

NUT

09159-10026

$6.20

13

GASKET

09168-10017

$3.04

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

15

WASHER | 10.5x22x2.3

09160-10039

$2.26

16

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

17

GASKET

09168-05010

$1.71

18

PLUG, CYLINDER HEAD SIDE

09241-23002

$6.17

19

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.37

20

SPARK PLUG | NGK, B-8ES

09482-00091

$3.01

20

SPARK PLUG W24E | ND, W24ES This part replaces 09482-00092.

09482-00247-111

Unavailable

21

CAP, SPARK PLUG (S)

33510-43010

$24.99

22

CAP, SPARK PLUG (L)

33510-45010

$24.99

23

SEAL, PLUG

33541-69010

$4.37

24

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

25

GEAR, TACHO. DRIVEN (NT:10) | NT:10 This part replaces 26431-45001.

26431-45002

$48.23

26

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

27

SEAL BANO

26451-45000

$5.05

28

O, SEAL This part replaces 09289-05001.

09289-05002

$8.43

29

PLATE, GEAR SLEEVE

26449-33000

$4.35

30

SCREW

09128-05101

$1.49
