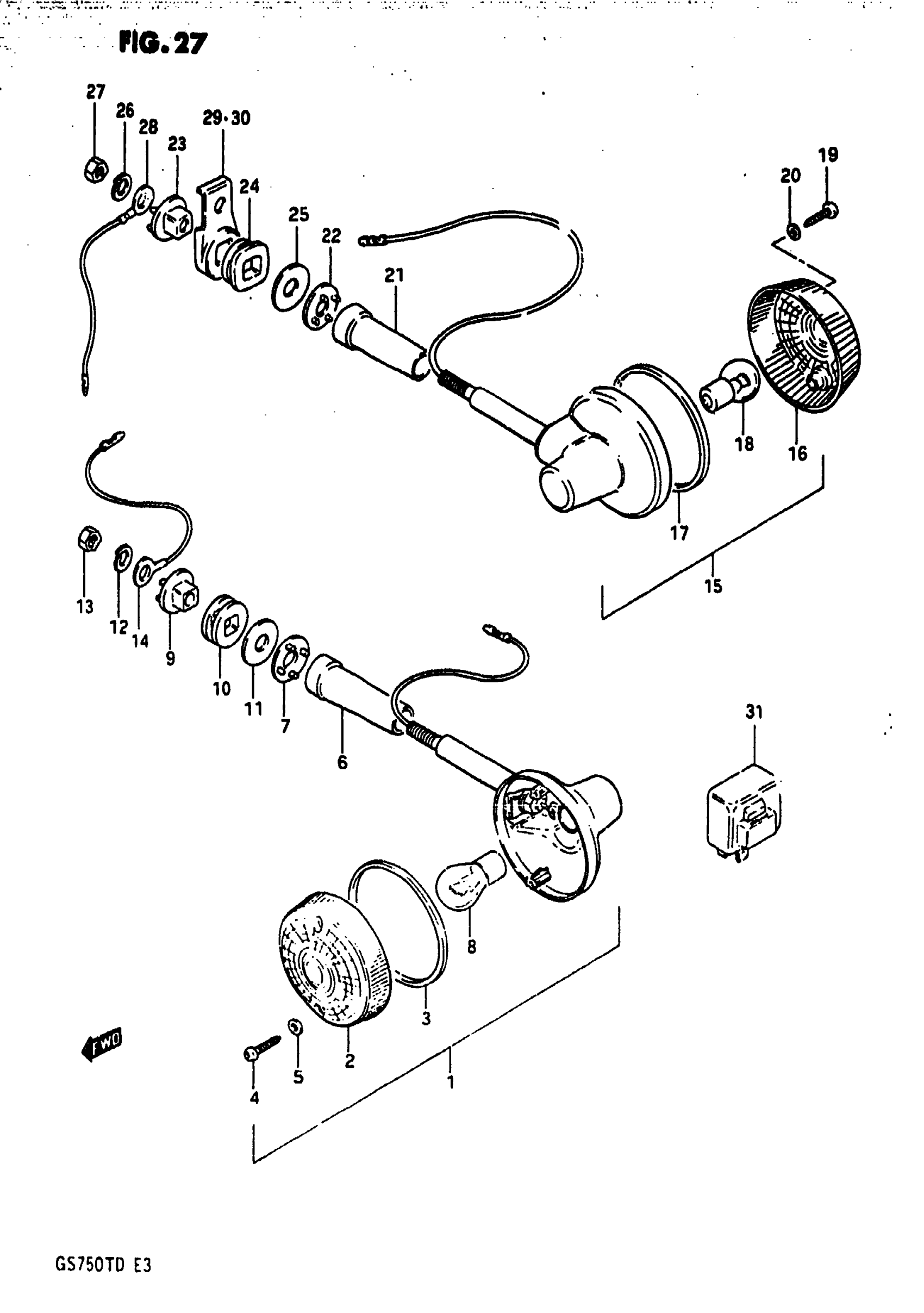

Suzuki GS750T (1983) TURN SIGNAL LAMP (MODEL Z) Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 7

35603-47230-999

Unavailable

2

LENS

35612-28620

$8.46

3

GASKET

35613-28620

$4.28

4

SCREW This part replaces 03211-04208.

03211-04207

$0.49

5

GASKET

35627-43010

$2.29

6

COVER, STAY

35617-47230

Unavailable

7

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

8

BULB (12V, 23W)

09471-12006

$3.64

9

SPACER

35695-32401

$4.26

10

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$5.99

11

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

13

NUT This part replaces 08310-12108.

08310-00107

$2.19

14

LEAD WIRE, EARTH

36660-33000

$4.26

15

LAMP, REAR TURN SIGNAL | Includes Item(s) 16 - 22

35603-45230

Unavailable

16

LENS

35612-28620

$8.46

17

GASKET

35613-28620

$4.28

18

BULB (12V, 23W)

09471-12006

$3.64

19

SCREW This part replaces 03211-04208.

03211-04207

$0.49

20

GASKET

35627-43010

$2.29

21

COVER, STAY

35657-45230

Unavailable

22

CUSHION This part replaces 35665-47210.

35668-47290

Unavailable

23

SPACER

35695-32401

$4.26

24

CUSHION

09320-15004

$5.17

25

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

27

NUT This part replaces 08310-12108.

08310-00107

$2.19

28

LEAD WIRE, EARTH

36862-44000

$6.22

29

BRACKET, RH

35621-45910

Unavailable

30

BRACKET, LH

35641-45910

Unavailable

31

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$90.45
