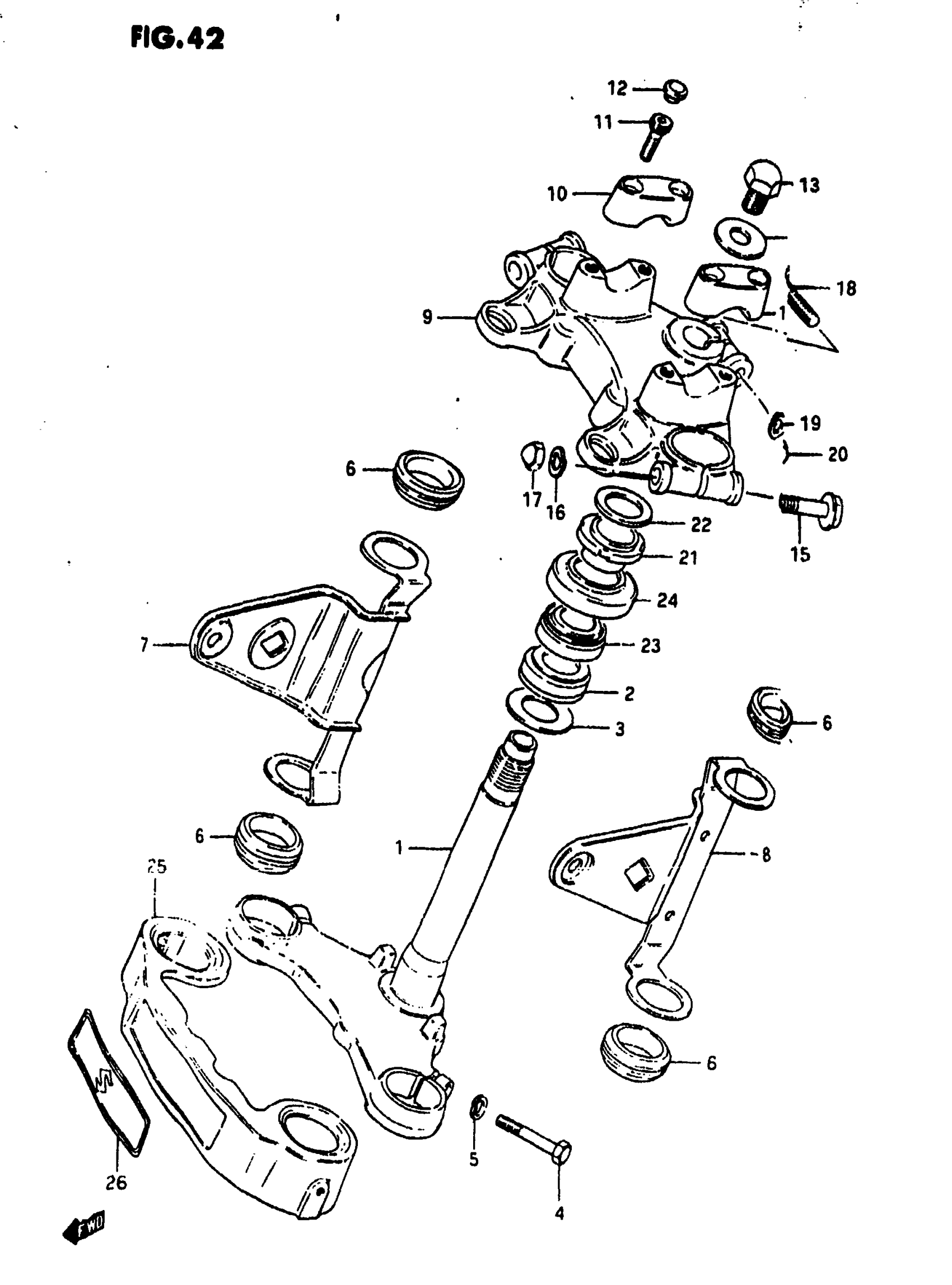

Suzuki GS750T (1983) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM SET | Includes Item(s) 2 - 3 This part replaces 51401-34811.

51400-44870

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

BOLT This part replaces 01107-10408.

01500-10407

$3.55

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

7

BRACKET, HEAD LAMP RH

51530-34230

Unavailable

8

BRACKET, HEAD LAMP LH

51540-34230

Unavailable

9

STEM HEAD, STEERING | BLACK

51311-34200-291

Unavailable

10

CLAMP, HANDLE BAR UPPER | BLACK

56211-34300-291

Unavailable

11

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

12

CAP

09250-06004

$1.49

13

BOLT

09104-12013

$4.11

14

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

15

BOLT This part replaces 01517-10558.

01550-10557

$3.91

16

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

17

NUT

09145-10002

Unavailable

18

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

NUT This part replaces 08313-11085.

08313-1008B

$2.80

21

NUT, STEERING STEM

51631-34200

Unavailable

22

WASHER

09160-18002

$2.38

23

BEARING, UPPER

09265-25008

Unavailable

24

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

25

COVER, FRONT FORK

51871-34501

Unavailable

26

EMBLEM, FRONT FORK COVER | MODEL Z

68211-34500

Unavailable

26

EMBLEM, FRONT FORK COVER | MODEL D

68211-34510

Unavailable
