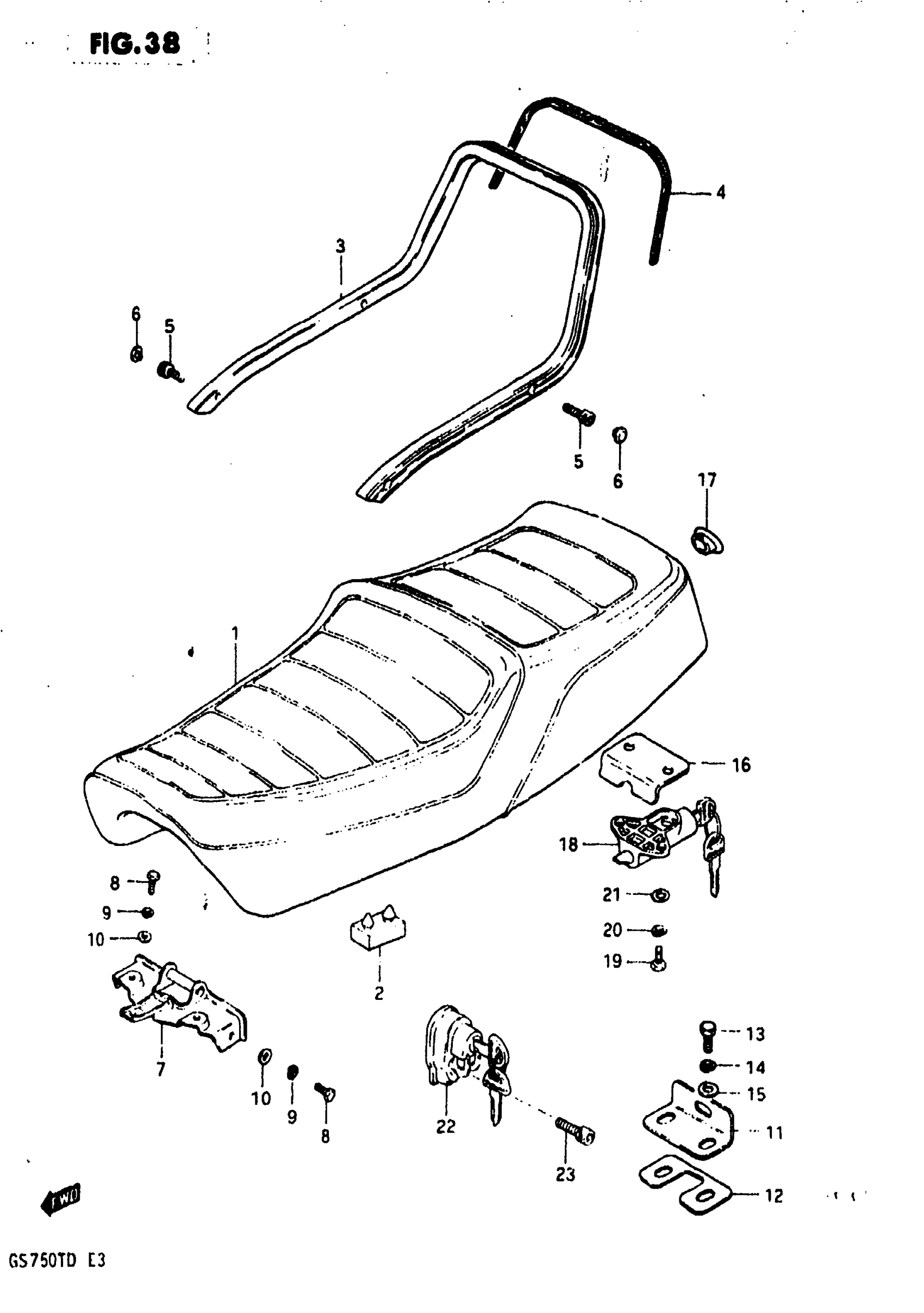

Suzuki GS750T (1983) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | MODEL Z This part replaces 45100-45950-47T.

45100-45950-48H

Unavailable

1

SEAT ASSY (BLACK) | MODEL D

45100-45950-48H

Unavailable

2

CUSHION

09321-08006

$2.90

3

HANDLE, PILLION RIDER | MODEL Z

46211-45950

Unavailable

3

HANDLE, PILLION RIDER | MODEL D

46210-45950

Unavailable

4

RUBBER | MODEL D

46214-34410

Unavailable

5

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

$4.32

6

CAP

09250-06004

$1.49

7

PLATE, SEAT FRONT

45210-45950

Unavailable

8

BOLT This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

STRIKER, SEAT LOCK

45213-34400

Unavailable

12

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

$1.83

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

GUIDE, PLATE

45128-34400

Unavailable

17

GROMMET

45522-45950

Unavailable

18

LOCK SET, SEAT

95700-47820

Unavailable

19

BOLT This part replaces 01107-06208.

01500-06207

$2.28

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

LOCK SET, HELMET

95700-34210

Unavailable

23

BOLT This part replaces 09106-05008.

07130-0525B

$2.52
