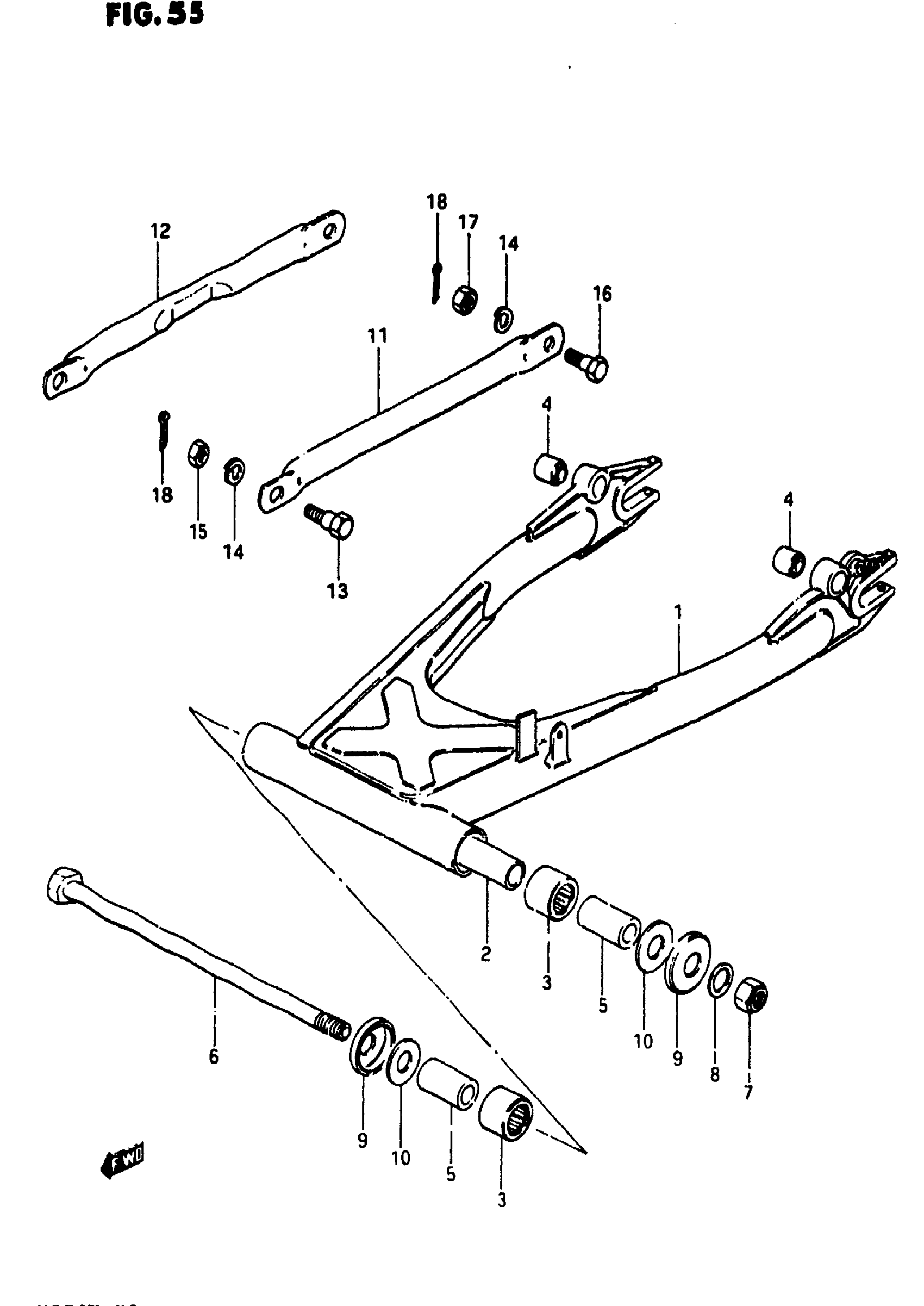

Suzuki GS750T (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-45880-019

Unavailable

2

SPACER

61281-45001

Unavailable

3

BEARING

09263-22017

$22.58

4

BUSHING, REAR

09319-10008

$7.40

5

SPACER

61251-45001

$17.37

6

SHAFT, PIVOT

61211-45400

Unavailable

7

NUT This part replaces 08319-21148.

08319-2114A

$3.96

8

WASHER This part replaces 08322-11148.

08322-01147

$1.91

9

COVER, DUST SEAL

61262-45002

$7.97

10

WASHER

09160-14020

$2.19

11

TORQUE LINK, REAR(BLACK) | MODEL Z This part replaces 64311-44000-019.

64311-44200-019

Unavailable

12

TORQUE LINK, REAR | MODEL D

64311-44200-019

Unavailable

13

BOLT, FRONT

09111-10010

Unavailable

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

NUT This part replaces 08310-22108.

08310-00107

$2.19

16

BOLT, REAR

09101-10003

Unavailable

17

NUT This part replaces 08310-11108.

08310-00107

$2.19

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
