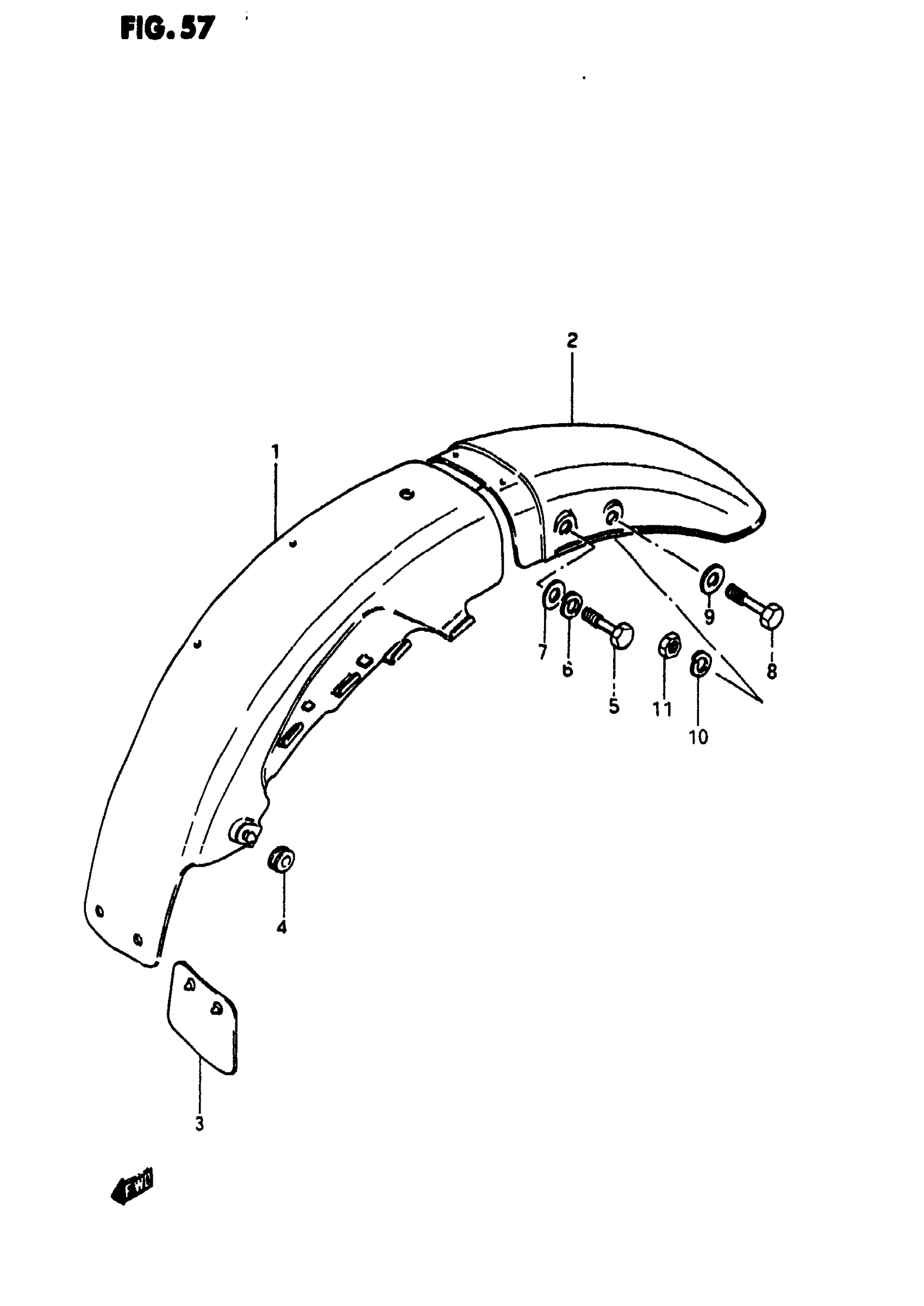

Suzuki GS750T (1983) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49110.

63112-49004

Unavailable

2

FENDER, REAR

63110-45900

Unavailable

3

MUD GUARD, REAR FENDEWR

63411-31900

Unavailable

4

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER

09160-06019

$1.49

8

BOLT, REAR

01204-08207

$2.30

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

NUT This part replaces 08310-22088.

08310-00087

$2.13
