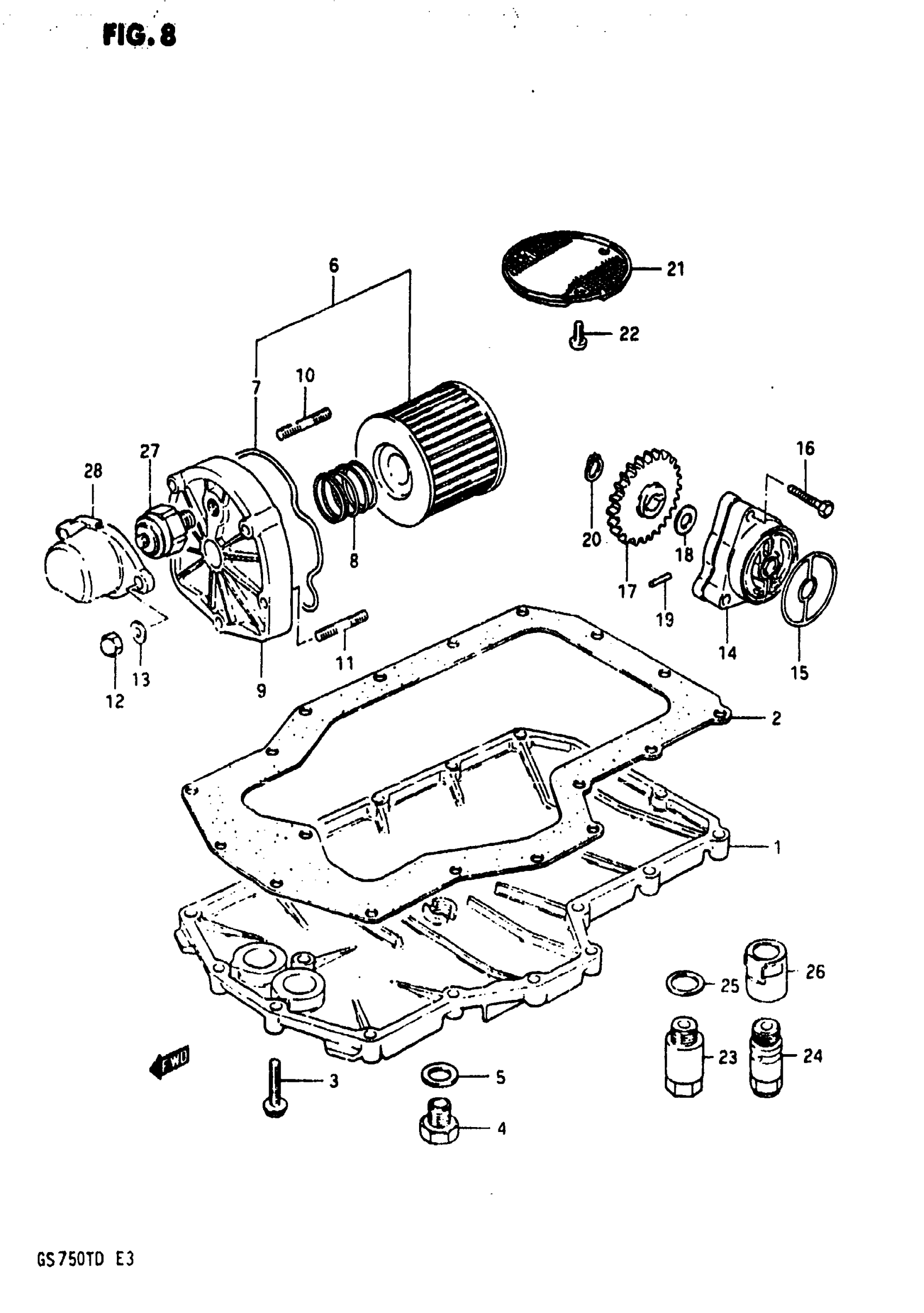

Suzuki GS750T (1983) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 11511-45400.

11511-45401

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 11511-45411.

11511-45401

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-45400.

11489-45400-H17

Unavailable

3

BOLT | MODEL Z This part replaces 01517-06258.

01550-06257

$2.30

3

BOLT | MODEL D This part replaces 01517-06255.

01550-0625A

$1.97

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET

09168-14004

$1.83

6

FILTER SET, ENGINE OIL

16510-45040

$5.96

7

O RING

16518-49200

$6.26

8

SPRING

09440-32004

$2.92

9

CAP | MODEL Z

16531-45400

Unavailable

9

CAP | MODEL D

16531-45430

Unavailable

10

STUD BOLT This part replaces 01421-06308.

01421-06307

$2.62

11

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.85

12

NUT, LICENSE HOLDER | MODEL Z This part replaces 08313-11068.

08313-10067

$1.84

12

NUT | MODEL D This part replaces 08313-11065.

08313-1006A

$1.84

13

WASHER | MODEL Z This part replaces 08322-21068.

08322-01067

$2.13

13

.WASHER | MODEL D This part replaces 08322-21065.

08322-0106B

$2.26

14

PUMP, ENGINE OIL

16400-49220

Unavailable

15

O RING This part replaces 16491-49200.

16491-31300

$13.90

16

BOLT (6X32)

09103-06045

$2.53

17

GEAR, DRIVEN (NT:29)

16331-45000

Unavailable

18

WASHER

08221-10185

$2.15

19

PIN

09261-04009

$1.56

20

CIPCLIP

08331-31109

$1.78

21

STRAINER, ENGINE OIL (H:7) | MODEL Z

16520-45400

Unavailable

21

STRAINER, ENGINE OIL (H:10) | MODEL D

16520-45500

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84

23

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 16440-45400.

16440-45902

Unavailable

24

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 16440-45900.

16440-45902

Unavailable

25

WASHER | MODEL Z

08212-16221

Unavailable

26

GUIDE, REGULATOR | MODEL D

16449-45400

Unavailable

27

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

$25.13

28

COVER, OIL PRESSURE SW. | MODEL Z This part replaces 37821-45401.

37821-45410

Unavailable

28

COVER, OIL PRESSURE SW. | MODEL D

37821-45410

Unavailable
