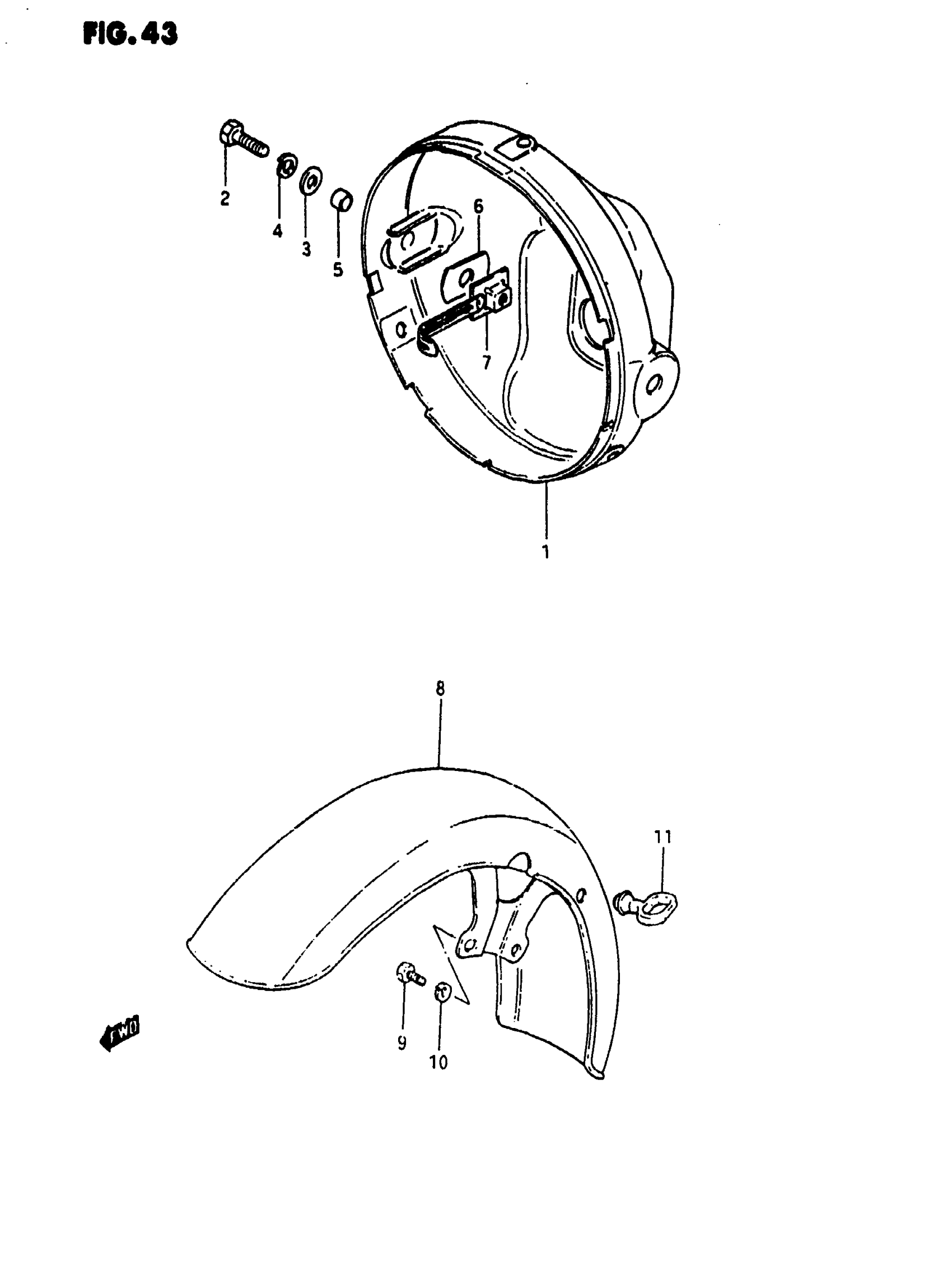

Suzuki GS750T (1983) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEADLAMP (BLACK) | MODEL Z This part replaces 51811-34500-291.

51811-34501-019

Unavailable

1

HOUSING, HEADLAMP (BLACK) | MODEL D

51811-34501-019

Unavailable

2

BOLT

01204-08257

$1.96

3

WASHER This part replaces 08322-11088.

08322-01087

$2.13

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE,HEADLAMP This part replaces 51820-45000.

51820-45001

$5.50

8

FENDER, FRONT

53110-45920

Unavailable

9

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
