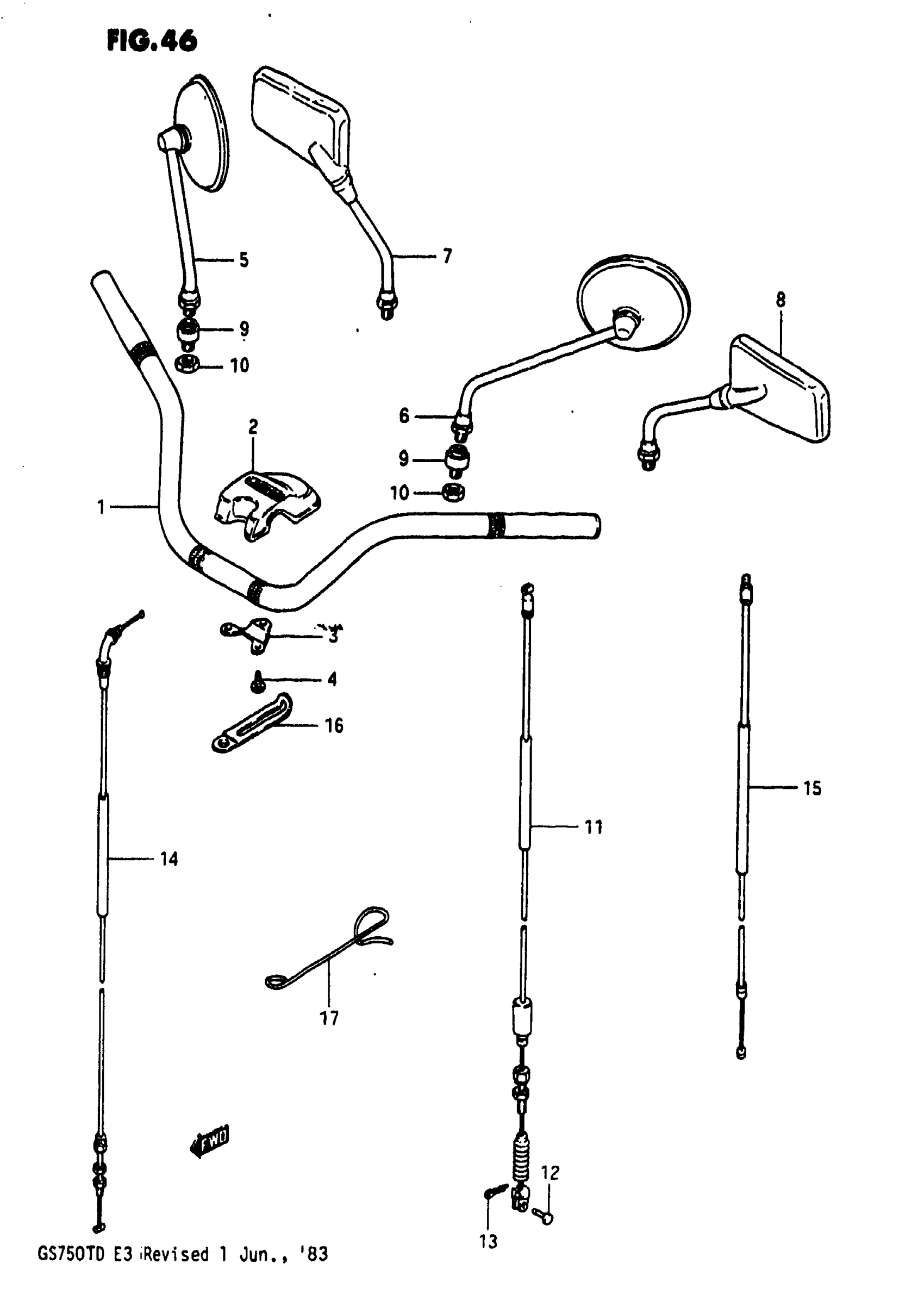

Suzuki GS750T (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-45900

Unavailable

2

COVER

56171-45900

Unavailable

3

BRACKET, HEAD COVER

56175-39001

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 09132-04020.

09132-04026

Unavailable

5

MIRROR ASSY,RR | MODEL Z This part replaces 56500-45101.

56500-38AB2

$357.02

6

MIRROR ASSY,RR | MODEL Z This part replaces 56600-45101.

56500-38AB2

$357.02

7

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 56500-47200.

56500-47202

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 56600-47200.

56600-47202

Unavailable

9

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

10

NUT This part replaces 08310-22108.

08310-00107

$2.19

11

CABLE, CLUTCH

58200-45401

Unavailable

12

PIN

09200-06011

Unavailable

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

CABLE, THROTTLE | MODEL Z This part replaces 58300-44231.

58300-44232

Unavailable

14

CABLE, THROTTLE | MODEL D

58300-44232

Unavailable

15

CABLE,STARTER | MODEL Z This part replaces 58410-45940.

58410-47X00

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 58410-45931.

58410-45X01

Unavailable

16

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

17

CLAMP, CLUTCH CABLE

58626-45101

Unavailable
