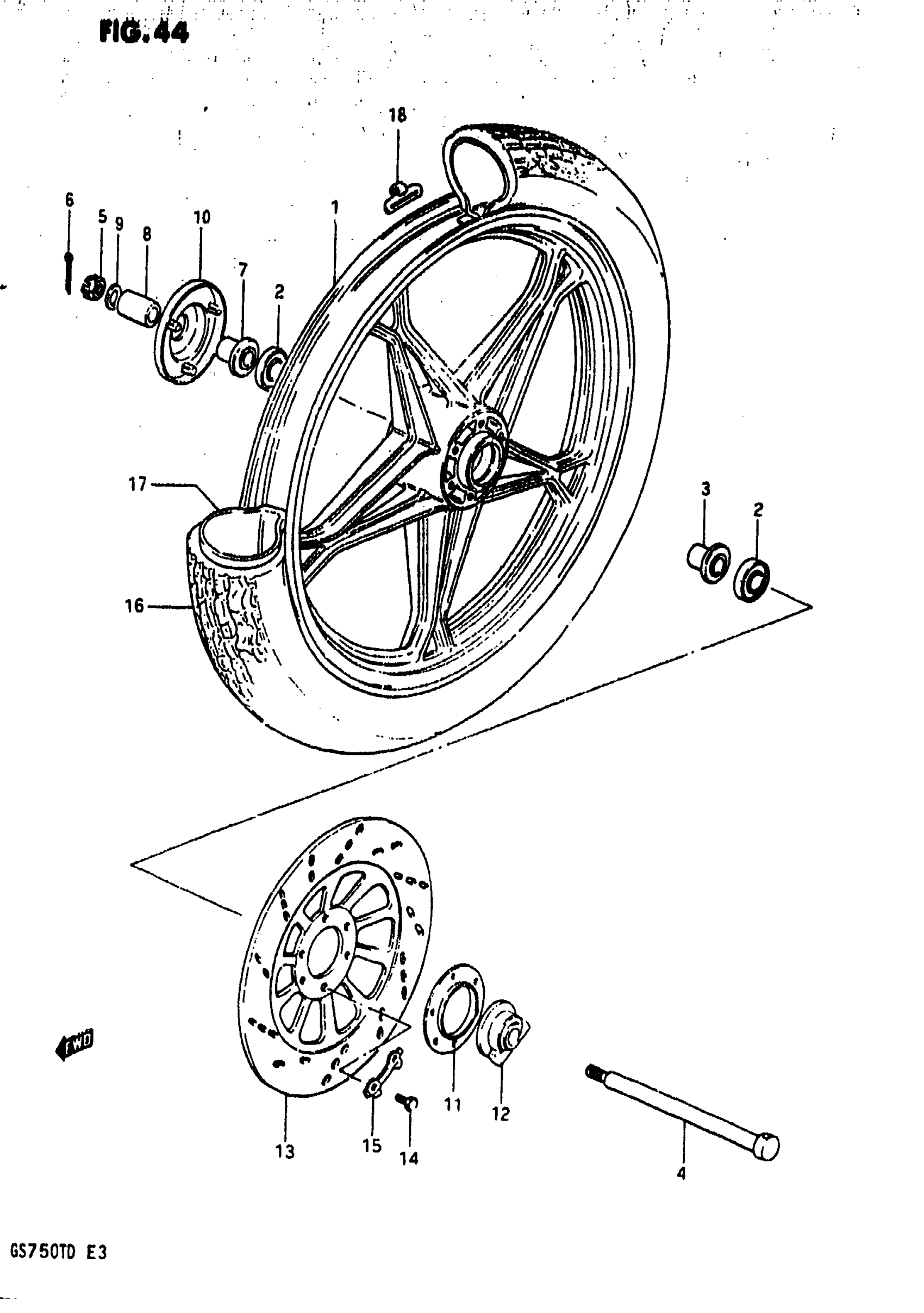

Suzuki GS750T (1983) FRONT WHEEL (MODEL Z) Diagram

#

Description
Price

1

WHEEL (1.85-19) | BLACK

54111-45300-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING

54740-18402

Unavailable

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

COVER, RH

54871-45000

$8.98

11

DUST SEAL, GEAR BOX

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-18401.

54600-18403

Unavailable

13

DISK, FRONT BRAKE

59221-34550

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE, FRONT (3.25H19) | IRC

55100-45910

Unavailable

16

TIRE, FRONT (3.25H19) | DUNLOP

55100-45950

Unavailable

17

TUBE This part replaces 55200-15010.

55200-44611

$33.73

18

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

18

BALANCER (30G)

55412-45100

Unavailable

18

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
