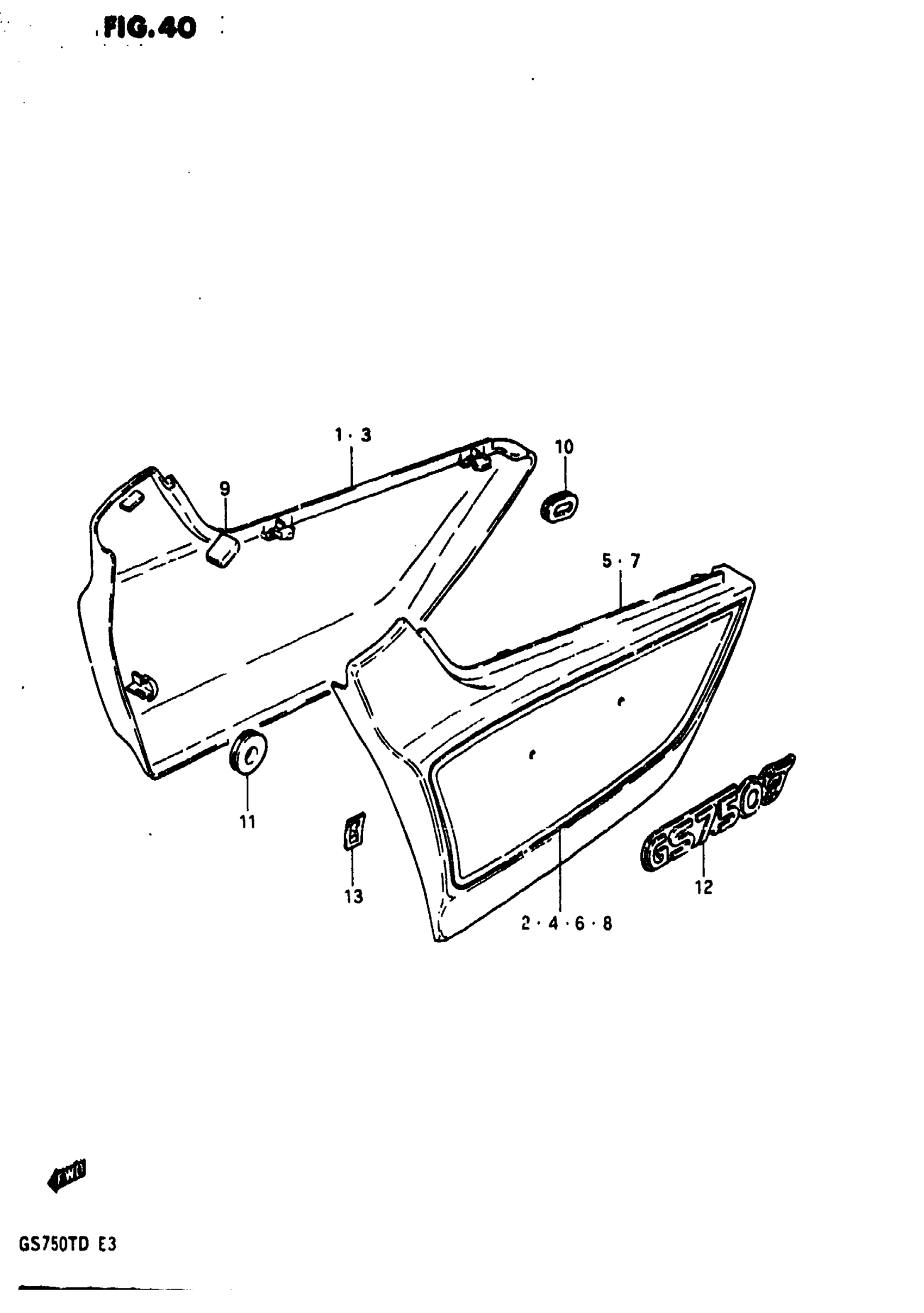

Suzuki GS750T (1983) FRAME COVER (MODEL D) Diagram

#

Description
Price

1

COVER,FRAME, RH | Includes Item(s) 2 This part replaces 47101-45870-019.

47111-45900

Unavailable

2

TAPE, RH

68130-45910-78U

Unavailable

3

COVER,FRAME, RH | Includes Item(s) 4 This part replaces 47101-45880-019.

47111-45900

Unavailable

4

TAPE, RH

68130-45910-82S

Unavailable

5

COVER FRAME, L | Includes Item(s) 6 This part replaces 47201-45870-019.

47211-45900

Unavailable

6

TAPE, LH

68140-45910-78U

Unavailable

7

COVER FRAME, L | Includes Item(s) 8 This part replaces 47201-45880-019.

47211-45900

Unavailable

8

TAPE, LH

68140-45910-82S

Unavailable

9

CUSHION, FRONT

09329-02002

$2.40

10

CUSHION This part replaces 09320-03005.

09320-03004

$2.12

11

CUSHION, LOWER

09320-08018

$3.04

12

EMBLEM

68131-45920

Unavailable

13

NUT

09148-03002

$2.15
