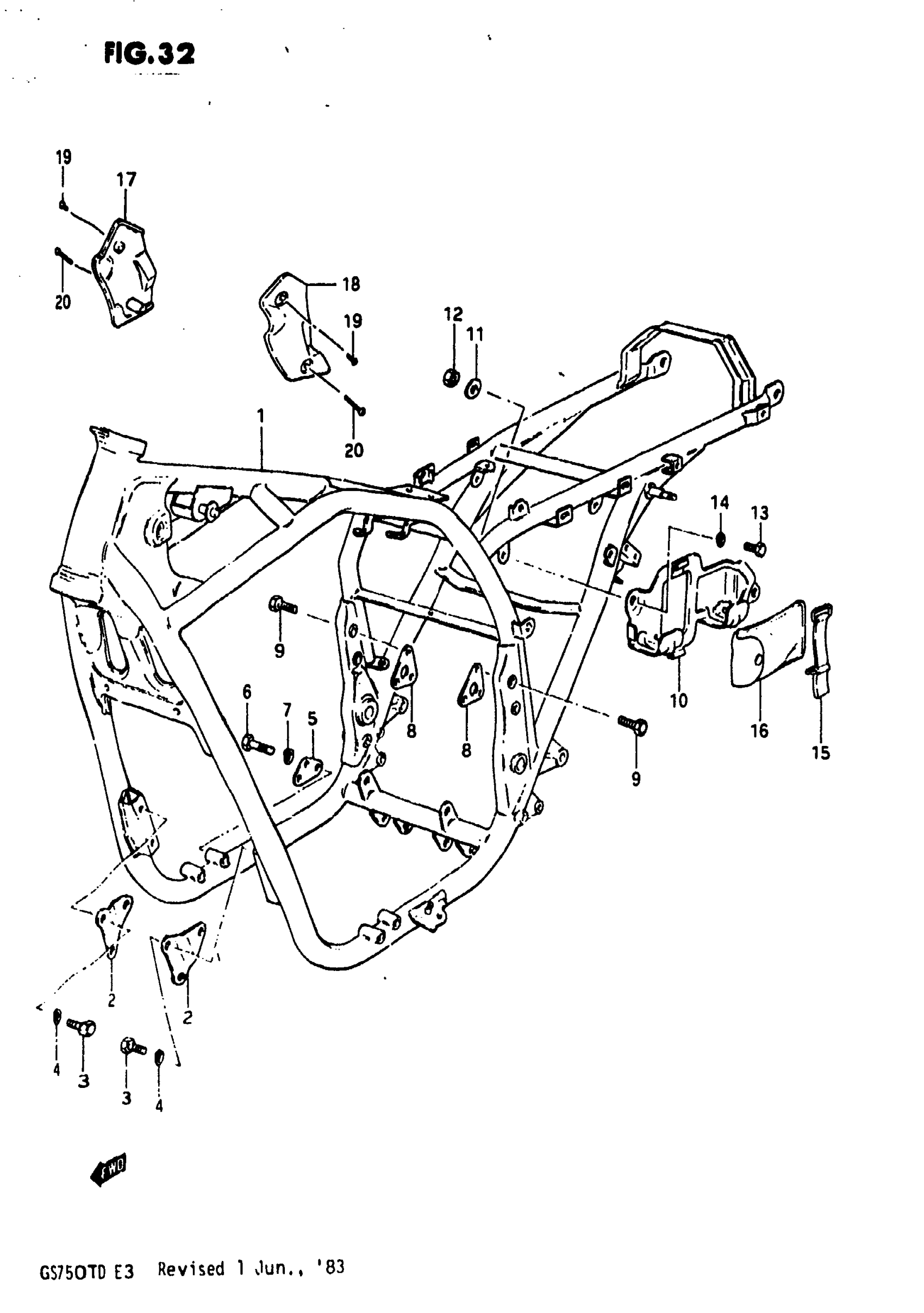

Suzuki GS750T (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z This part replaces 41100-45950-019.

41100-45951-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-45951-019

Unavailable

2

PLATE, NO. 1 (SILVER) This part replaces 41911-45950-019.

41911-45950-13L

Unavailable

3

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

9

BOLT This part replaces 01517-08358.

01550-08357

$3.49

10

HOLDER, TOOL | MODEL Z

41550-45900

Unavailable

10

HOLDER, TOOL | MODEL D

41550-45901

Unavailable

11

WASHER

09160-06021

$2.53

12

.NUT This part replaces 08310-11068.

08310-00067

$2.13

13

BOLT This part replaces 01107-06108.

01500-06107

$2.06

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

BAND This part replaces 09462-00072.

09462-00094

$3.16

16

TOOL ASSY This part replaces 09800-00240.

09800-21068

Unavailable

17

COVER, FRAME HEAD RH

51876-45900

Unavailable

18

COVER, FRAME HEAD LH

51886-45900

Unavailable

19

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

20

SCREW This part replaces 02112-05458.

02112-05457

$1.86
