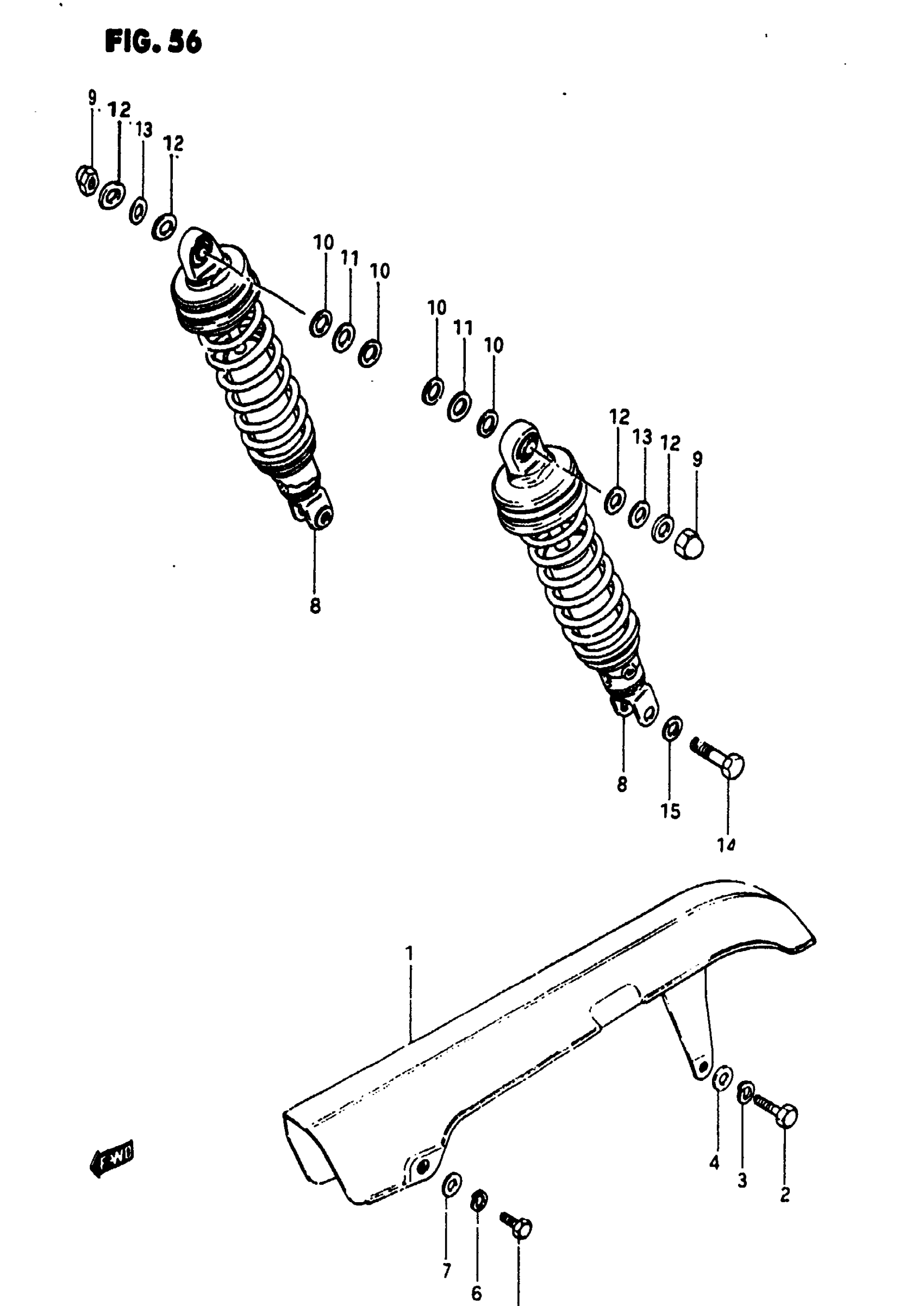

Suzuki GS750T (1983) CHAIN CASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 61310-49201.

61310-49202

Unavailable

1

CHAIN CASE | MODEL D

61310-49501-291

Unavailable

2

BOLT This part replaces 01107-06258.

01500-06257

$1.97

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

BOLT This part replaces 01107-06128.

01500-06127

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER | MODEL Z This part replaces 08322-21068.

08322-01067

$2.13

7

WASHER | MODEL D This part replaces 09160-06007.

09160-06084

$1.78

8

SHOCK ABSORBER, REAR

62100-45920

Unavailable

9

NUT This part replaces 08313-11108.

08313-10107

$2.50

10

WASHER This part replaces 08322-11128.

08322-01127

$1.84

11

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

12

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

13

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

14

BOLT

09104-10002

$3.55

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15
