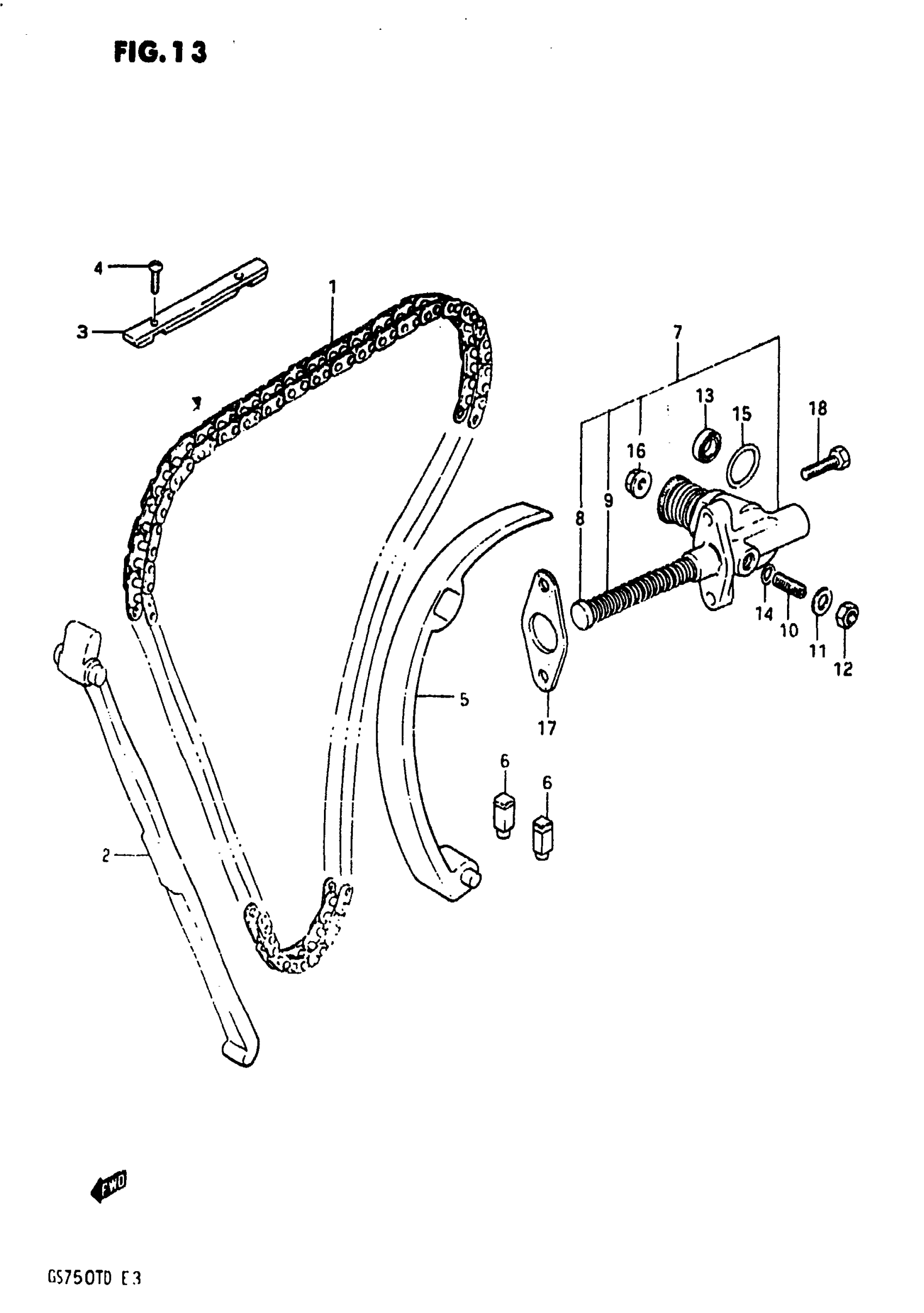

Suzuki GS750T (1983) CAM CHAIN (MODEL D) Diagram

#

Description
Price

1

CHAIN,CAMSHAFT This part replaces 12760-45440.

12760-40C01

$142.74

2

GUIDE, CAM CHAIN

12771-45451

Unavailable

3

GUIDE, CAM CHAIN

12782-47040

Unavailable

4

SCREW This part replaces 02112-05128.

02112-05127

$1.97

5

TENSION, CAM CHAIN

12810-44150

Unavailable

6

CUSHION

12814-44101

$6.60

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 16 This part replaces 12830-47011.

12830-0930V

Unavailable

8

PUSH ROD

12833-47001

Unavailable

9

SPRING

09440-12017

$2.45

10

SCREW This part replaces 12838-45010.

12838-45001

$8.42

11

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

12

NUT This part replaces 08310-11085.

08310-0008A

$1.84

13

OIL SEAL

09284-10006

$3.42

14

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

15

O RING

09280-21013

$2.28

16

NUT This part replaces 08316-16065.

08316-1006B

$2.50

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

18

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.47
