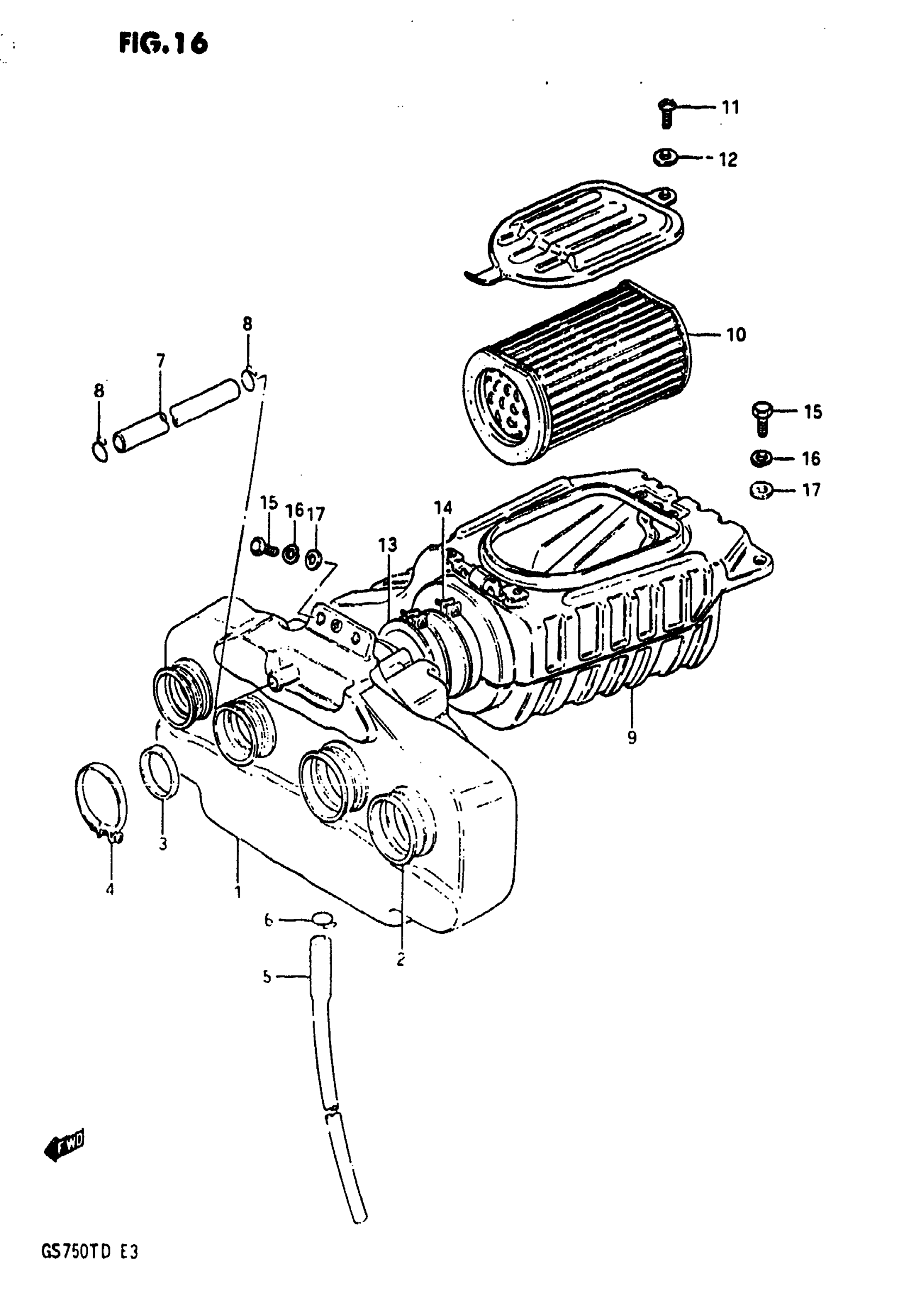

Suzuki GS750T (1983) AIR CLEANER (MODEL D) Diagram

#

Description
Price

1

CASE, FRONT | Includes Item(s) 2 - 3 This part replaces 13710-45910.

13710-45900

Unavailable

2

HOSE, OUTLET

13881-45450

Unavailable

3

RING

13885-45450

Unavailable

4

..CLAMP This part replaces 09402-60306.

09402-60208

$5.11

5

TUBE,DRAIN This part replaces 13870-00010.

13870-11459

$15.51

6

CLIP

09401-14301

$2.35

7

HOSE,11X15X2000 This part replaces 13851-00240.

09352-11154-00B

$48.35

8

CLIP, NO.2

09401-14301

$2.35

9

CASE SET, REAR | Includes Item(s) 10 - 14

13700-45810

Unavailable

10

FILTER

13780-45500

Unavailable

11

SCREW This part replaces 02112-05128.

02112-05127

$1.97

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

HOSE, JOINT

13795-49000

Unavailable

14

CLAMP This part replaces 13796-49000.

09402-70902

$5.64

15

BOLT This part replaces 01107-06208.

01500-06207

$2.28

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13
