1983 Suzuki GS750S Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

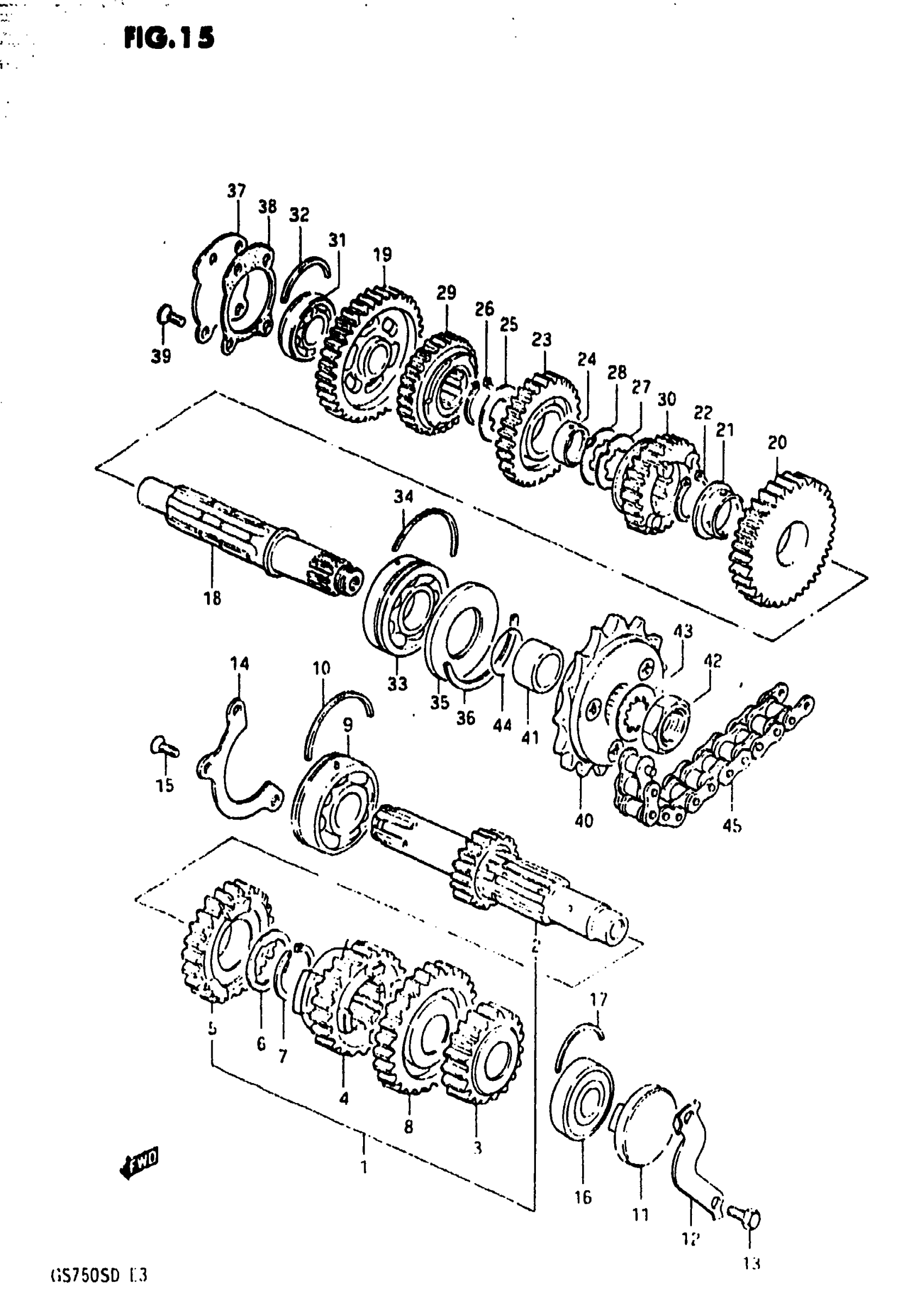

1983 Suzuki GS750S Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-45400

1
Out of stock

2

COUNTERSHAFT (NT:14)

24121-45401

1
Out of stock

3

GEAR, 2ND DRIVE (NT:18)

24221-49001

1
Out of stock

4

GEAR, 3RD DRIVE (NT:21)

24231-49000

1
Out of stock

5

GEAR, 4TH DRIVE (NT:24)

24240-49000

1
Out of stock

6

WASHER

09167-28001

1
Out of stock

7

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

8

GEAR, 5TH DRIVE (NT:26)

24250-49000

1
Out of stock

9

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

10

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

11

PLUG, COUNTERSHAFT LH

09241-47004

1
Out of stock

12

HOLDER

23117-45000

1
Out of stock

13

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

14

HOLDER, BEARING

24741-45000

1
Out of stock

15

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

16

BEARING, LH

09262-20044

1
Out of stock

17

C RING

09390-47003

1
Out of stock

18

DRIVESHAFT

24131-49002

1
Out of stock

19

GEAR, 1ST DRIVEN (NT:36)

24310-45000

1
Out of stock

20

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-49200.

24321-00A00

1
Out of stock

21

BUSH

09301-28001

1
Out of stock

22

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

23

GEAR 3RD DRIVEN This part replaces 24331-49201.

24331-49202

1
Out of stock

24

BUSH

24332-49000

1
Out of stock

25

WASHER, RH

09167-28001

1
Out of stock

26

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

27

WASHER, LH (T:1.5)

09167-28002

1
Out of stock

28

WASHER, LH (T:1.0)

09169-28001

1
Out of stock

29

GEAR, 4TH DRIVEN (NT:27)

24341-45100

1
Out of stock

30

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-45500.

24351-00A00

1
Out of stock

31

BEARING, LH This part replaces 09262-20041.

09262-20044

1
Out of stock

32

C RING

09390-47003

1
Out of stock

33

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

34

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

35

OIL SEAL

09283-32012

1
Out of stock

36

C RING

09390-62008

1
Out of stock

37

PLATE

24761-45000

1
Out of stock

38

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

1
Out of stock

39

SCREW This part replaces 02122-06168.

02122-06167

4
Out of stock

40

SPROCKET ASSY,E This part replaces 27510-49010.

27510-49012

1
Out of stock

41

SPACER

09180-25052

1
Out of stock

42

1

$15.18

In stock

43

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

1
Out of stock

44

O RING

09280-25001

1
Out of stock

45

CHAIN, DRIVE This part replaces 27600-45410.

27600-49210

1
Out of stock
