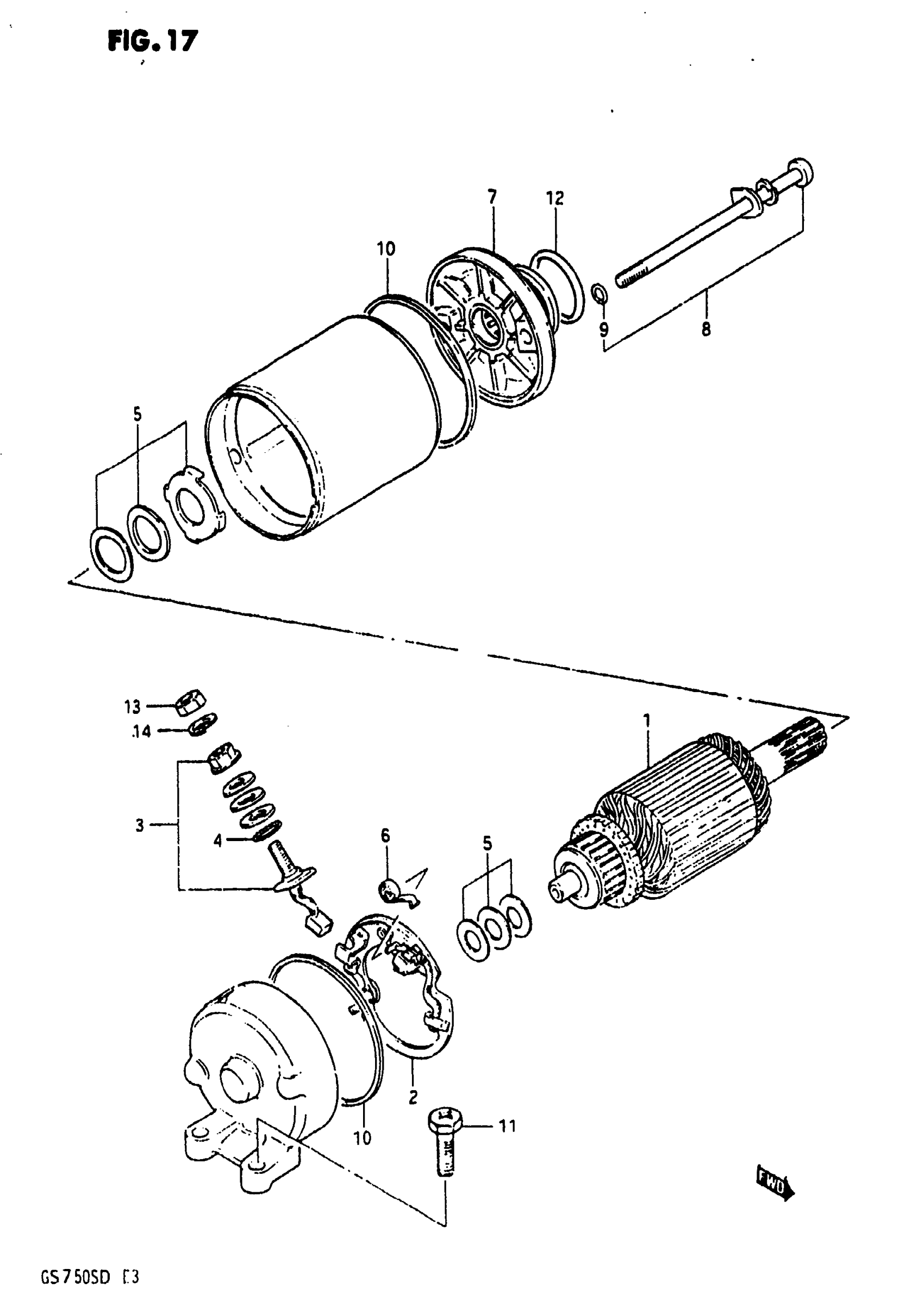

Suzuki GS750S (1983) STARTING MOTOR Diagram

#

Description
Price

0

MOTOR ASSY, STARTING | Includes Item(s) 1 - 10

31100-49050

Unavailable

1

ARMATURE

31311-31300

Unavailable

2

HOLDER SET, BRUSH (-)

31132-31300

Unavailable

3

TERMINAL SET, BRUSH (+)

31130-31300

Unavailable

4

O RING

31143-49040

$3.71

5

SHIM SET

31170-31300

Unavailable

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET SET

31150-31300

Unavailable

8

BOLT SET

31280-31300

Unavailable

9

O RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

12

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

13

.NUT This part replaces 08310-22068.

08310-00067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
