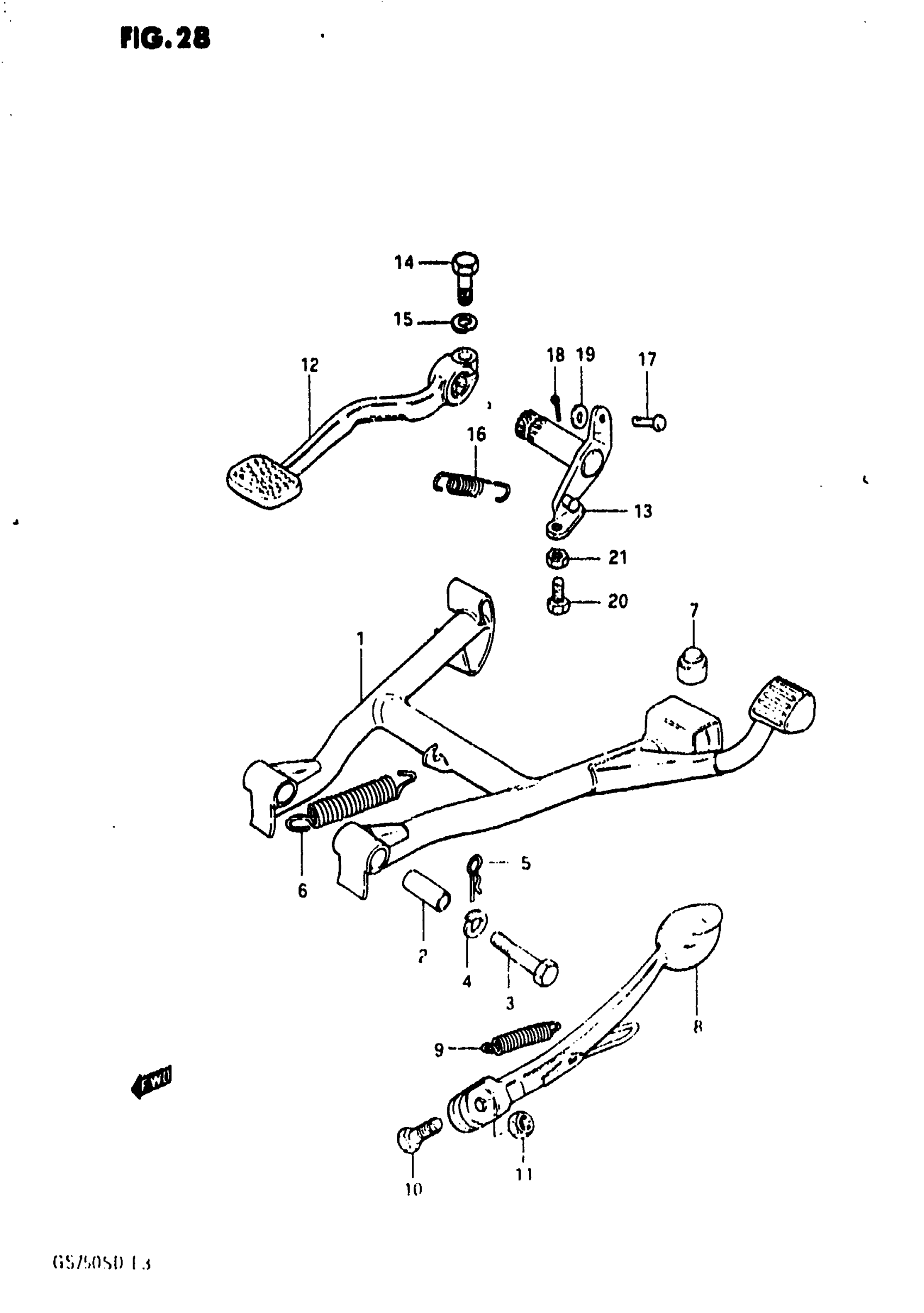

Suzuki GS750S (1983) STAND Diagram

#

Description
Price

1

STAND, CENTER This part replaces 42100-49301.

42100-08C00

Unavailable

2

SPACER (10.7x15.9x38)

09180-10040

$2.56

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING This part replaces 09443-20001.

09443-20001-XC0

$7.53

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42310-49300

Unavailable

9

SPRING This part replaces 09443-17008.

09443-17008-XC0

$6.98

10

BOLT (10X30)

09100-10067

$2.61

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

PEDAL,BRAKE This part replaces 43111-49310.

43111-49311

Unavailable

13

ARM, BRAKE PEDAL ROD

43120-49301

Unavailable

14

BOLT This part replaces 01107-08308.

01500-08307

$3.04

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

SPRING This part replaces 09443-12022.

09443-12022-XC0

$5.63

17

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

BOLT This part replaces 01107-06258.

01500-06257

$1.97

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13
