1983 Suzuki GS750S Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

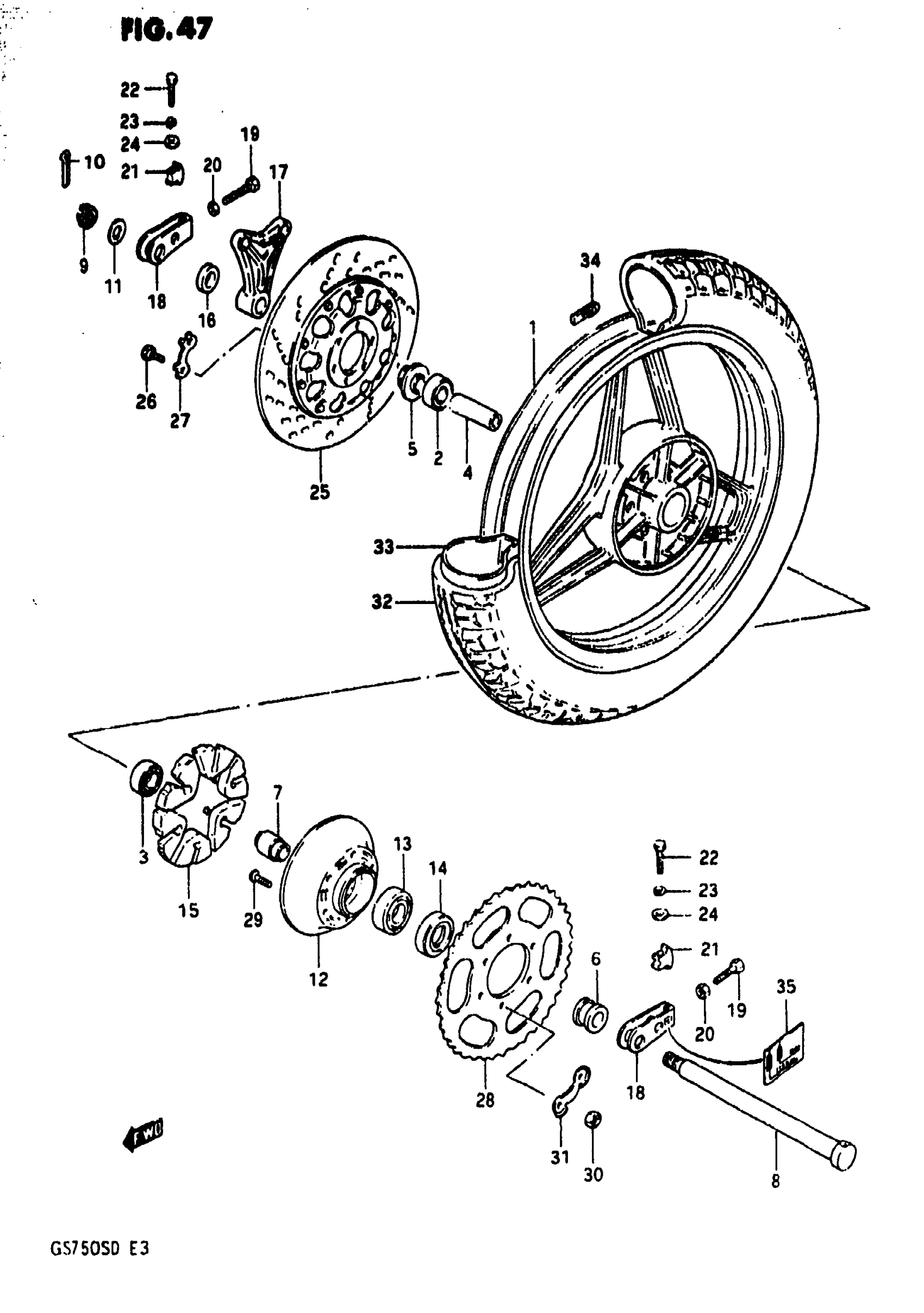

1983 Suzuki GS750S Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (18x2.15) (BLACK)

64111-45550-291

1
Out of stock

2

BEARING, RH

08133-62047

1
Out of stock

3

BEARING, LH This part replaces 08153-62047.

09262-20042

1
Out of stock

4

SPACER

64731-45000

1
Out of stock

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

1
Out of stock

6

SPACER, AXLE LH (20x33x28.3)

09180-20054

1
Out of stock

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

1
Out of stock

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

1
Out of stock

9

NUT This part replaces 08314-31188.

08314-3118A

1
Out of stock

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

11

WASHER (19x34x4)

09160-19008

1
Out of stock

12

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

1
Out of stock

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

14

OIL SEAL

09285-33001

1
Out of stock

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

6
Out of stock

16

SPACER, RH

09180-20070

1
Out of stock

17

BRACKET, REAR CALIPERS

69721-47011

1
Out of stock

18

ADJUSTER, CHAIN

61410-31001

2
Out of stock

19

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

20

2

$1.93

In stock

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

22

BOLT This part replaces 01107-08608.

01500-0860B

2
Out of stock

23

2

$2.28

In stock

24

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

25

DISK, REAR BRAKE

59210-18450

1
Out of stock

26

BOLT

09100-08094

6
Out of stock

27

WASHER

09169-08016

3
Out of stock

28

SPROCKET, REAR (NT:41)

64511-45001

1
Out of stock

29

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

30

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

31

WASHER

09169-10007

3
Out of stock

32

TIRE (4.00H18) | BS

65100-45430

1
Out of stock

32

TIRE (4.00H18) | IRC

65100-45410

1
Out of stock

33

TUBE, INNER | BS This part replaces 65200-45030.

65200-49015

1
Out of stock

33

TUBE, INNER | IRC

65200-49015

1
Out of stock

34

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

34

BALANCER, (30G)

55412-45100

—
Out of stock

34

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

1
Out of stock

35

LABEL, CHAIN WEAR INDICATOR

68377-49000

1
Out of stock
