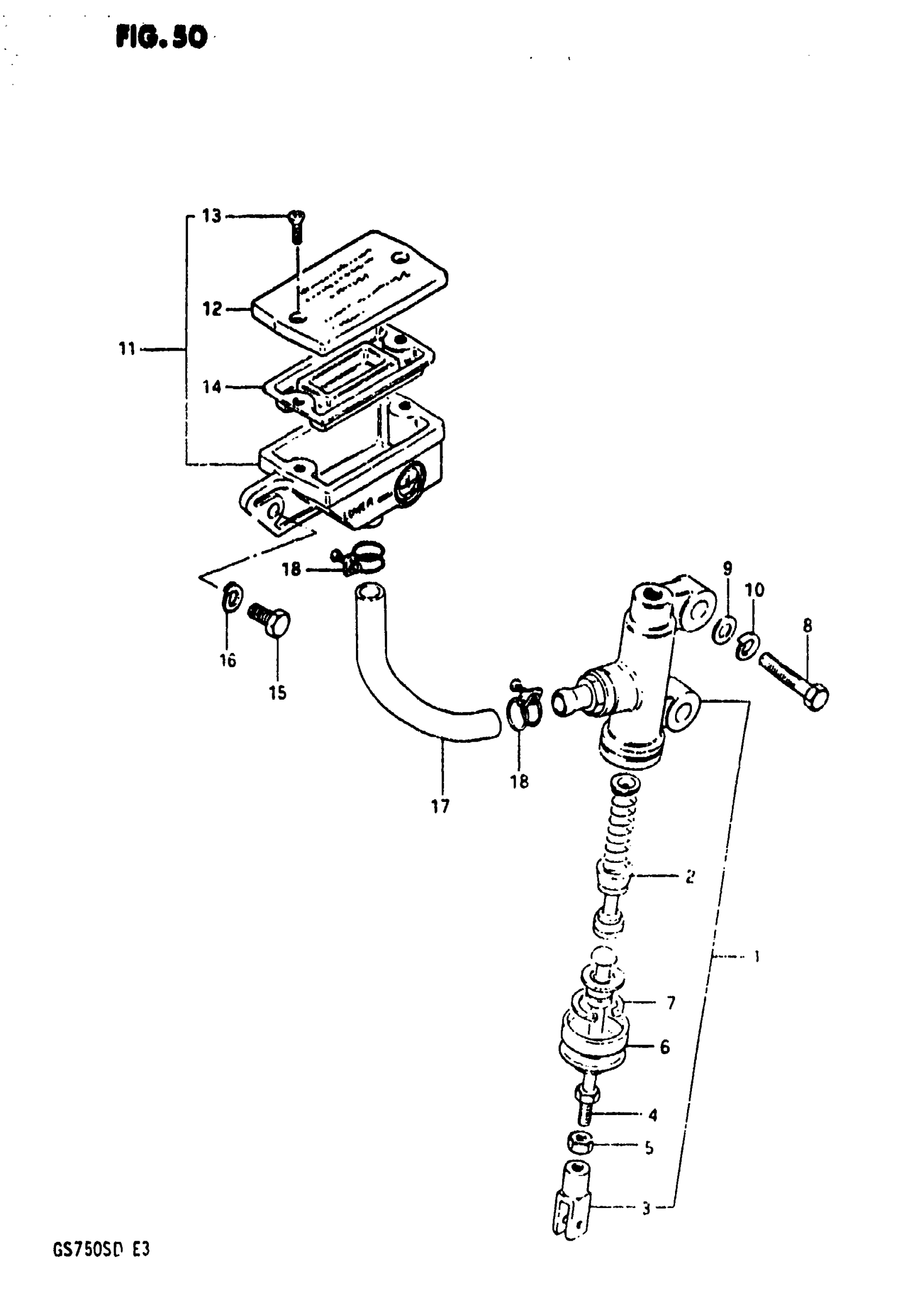

Suzuki GS750S (1983) MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,R | Includes Item(s) 2 - 7 This part replaces 69600-47010.

69600-47011

Unavailable

2

PISTON & CUP SET

69600-45820

$45.83

3

YOKE

69692-47010

Unavailable

4

ROD, PUSH

69670-45010

Unavailable

5

NUT This part replaces 69693-47010.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

BOLT This part replaces 01107-08308.

01500-08307

$3.04

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

RESERVOIR TANK ASSY | Includes Item(s) 12 - 14

69740-49330

Unavailable

12

CAP This part replaces 69669-49330.

59669-41C00

$32.56

13

SCREW

69689-49300

$1.91

14

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$9.78

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

HOSE

69731-49300

Unavailable

18

CLAMP This part replaces 09400-16302.

09400-16304

$3.10
