Partiron

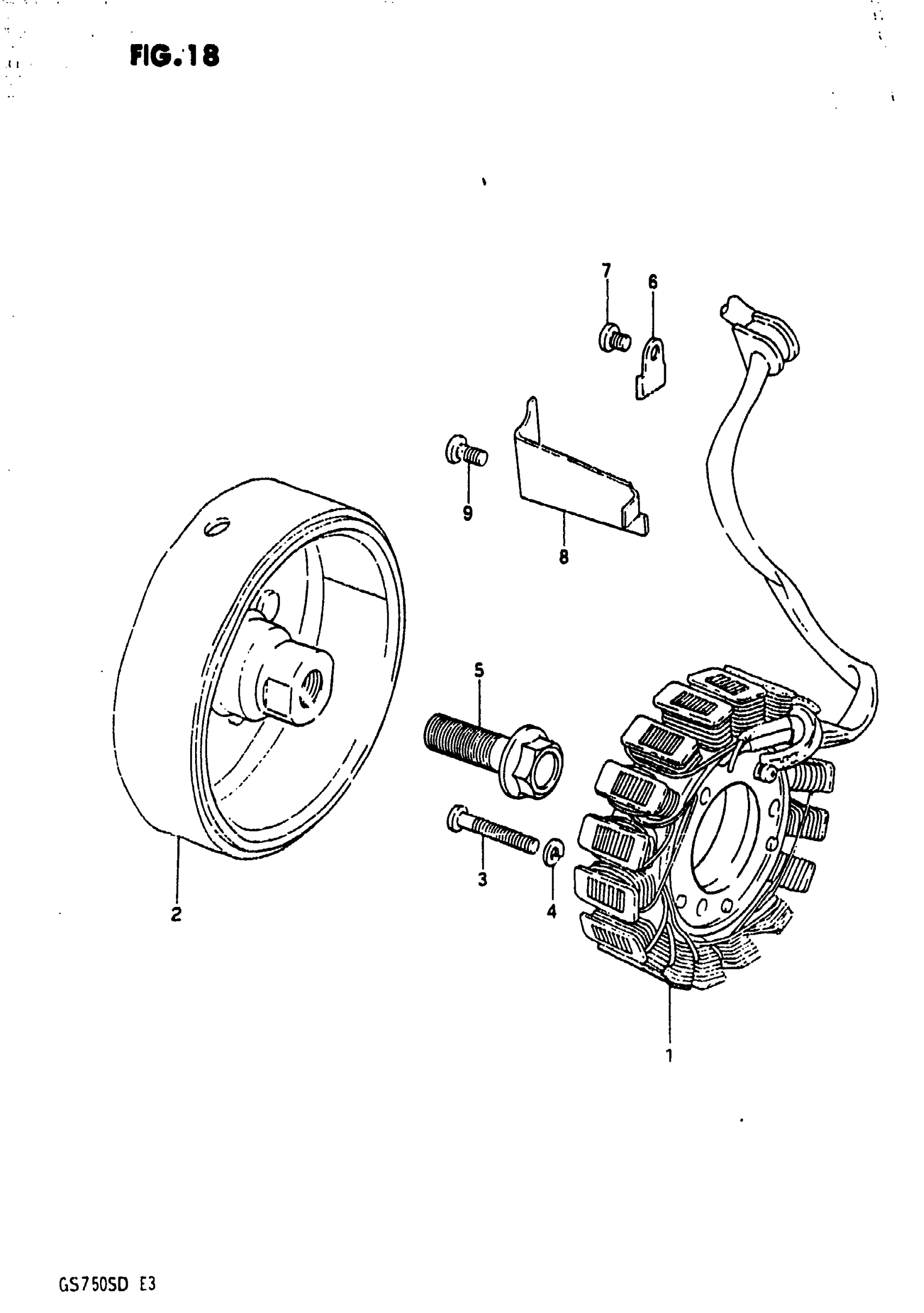

Suzuki GS750S (1983) GENERATOR Diagram

#

Description
Price

1

STATOR

31401-45120

Unavailable

2

ROTOR

31402-45120

Unavailable

3

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

BOLT

09103-12004

$4.00

6

CLAMP

31497-45000

$1.92

7

SCREW This part replaces 02112-05088.

02112-05087

$1.49

8

CLAMP

31498-45000

$2.15

9

SCREW This part replaces 02112-06108.

02112-06107

$1.49
