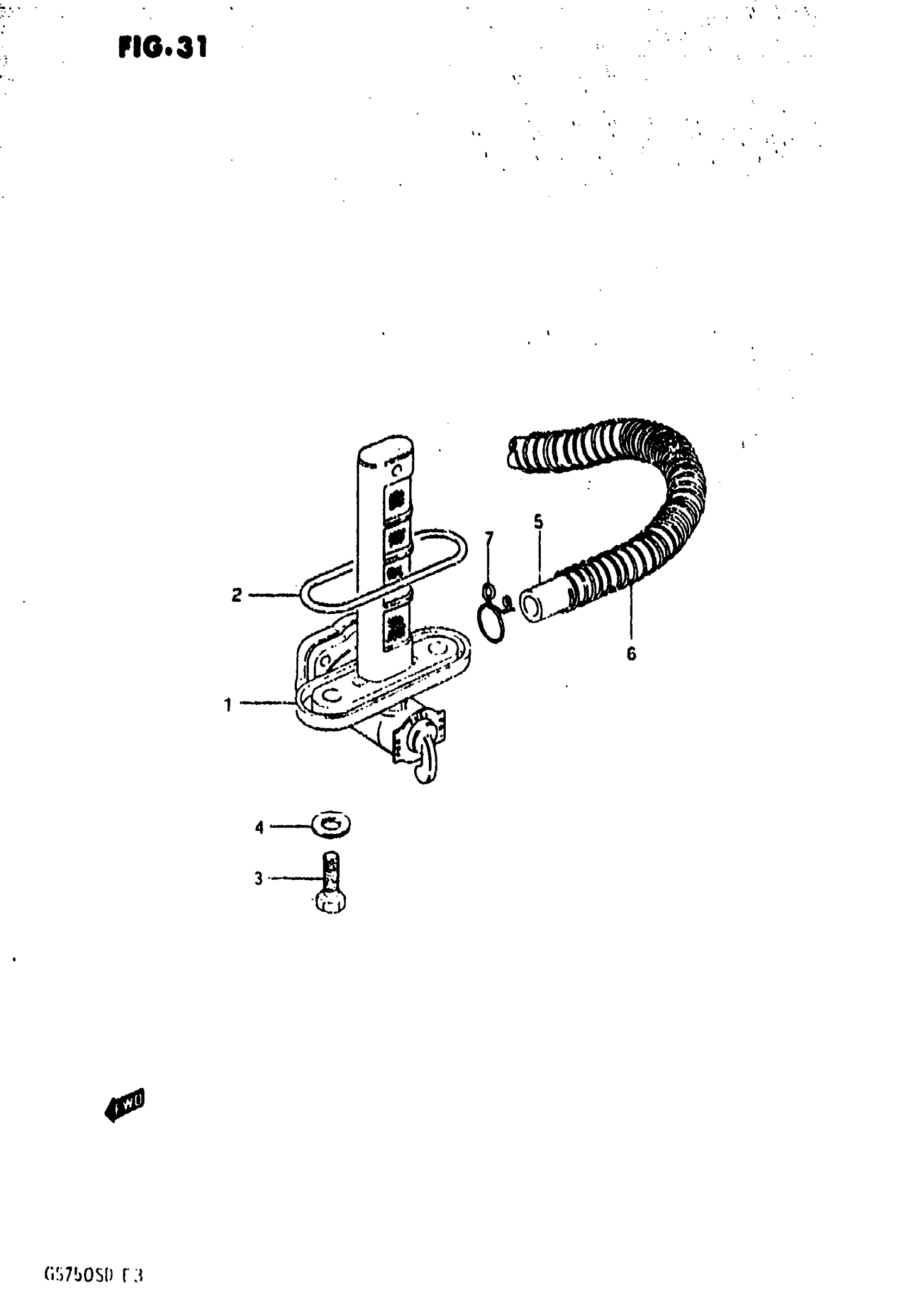

Suzuki GS750S (1983) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-45370.

44300-45373

$66.03

2

O RING This part replaces 44348-49170.

44348-49171

$2.80

3

BOLT This part replaces 09128-06006.

09128-06057

$1.64

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

5

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$13.82

6

SPRING This part replaces 09440-13020.

09440-13051

$9.85

7

CLIP

09401-10403

$1.67
