1983 Suzuki GS750S AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

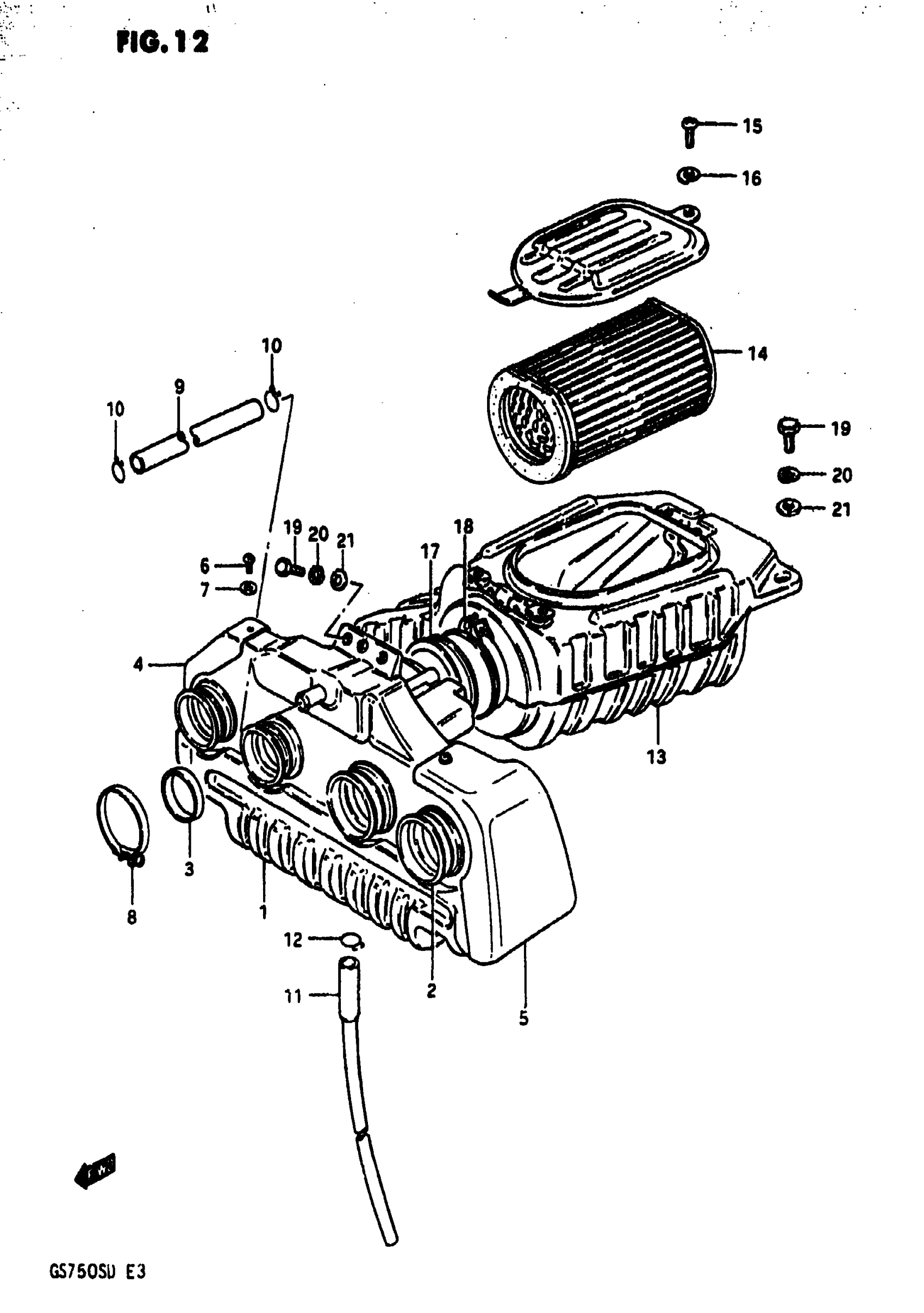

1983 Suzuki GS750S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT | Includes Item(s) 2 - 10

13710-45500

1
Out of stock

2

TUBE, OUTLET

13881-45500

4
Out of stock

3

RING

13885-47030

4
Out of stock

4

COVER, RH This part replaces 13831-45500.

13831-49020

1
Out of stock

5

COVER, LH This part replaces 13832-45500.

13832-49020

1
Out of stock

6

4

$1.67

In stock

7

WASHER This part replaces 08322-21048.

08322-01047

4
Out of stock

8

CLAMP This part replaces 09402-62306.

09402-62208

4
Out of stock

9

HOSE This part replaces 13851-00260.

09352-11154-600

1
Out of stock

10

CLIP

09401-14301

2
Out of stock

11

TUBE,DRAIN This part replaces 13870-00010.

13870-11459

1
Out of stock

12

CLIP

09401-14301

1
Out of stock

13

CASE SET, REAR | Includes Item(s) 14 - 18

13700-45810

1
Out of stock

14

FILTER ASSY

13780-45500

1
Out of stock

15

SCREW This part replaces 02112-05128.

02112-05127

1
Out of stock

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

17

TUBE, JOINT

13795-49000

1
Out of stock

18

CLAMP This part replaces 13796-49000.

09402-70902

2
Out of stock

19

BOLT This part replaces 01107-06208.

01500-06207

4
Out of stock

20

4

$2.28

In stock

21

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock
