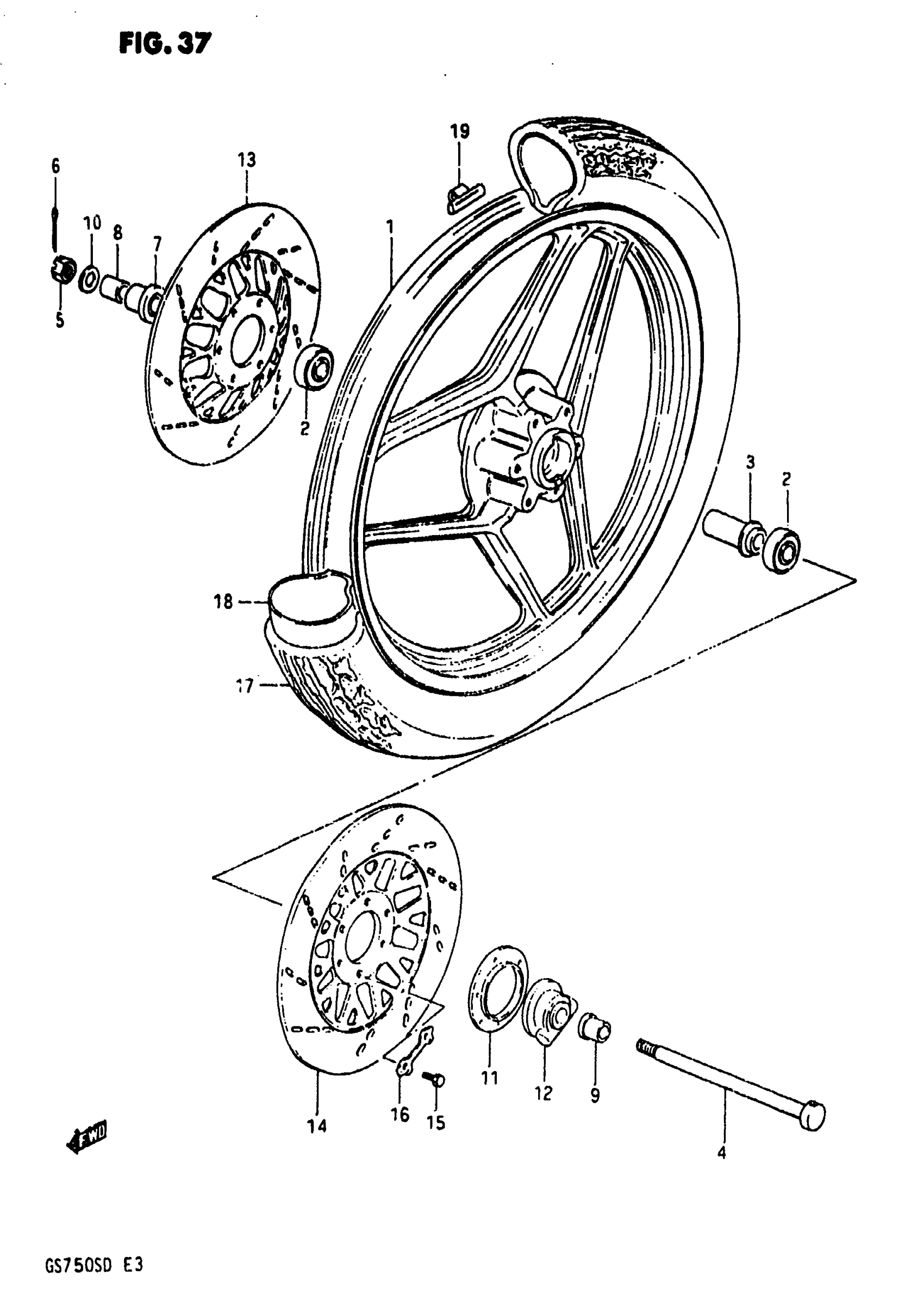

Suzuki GS750S (1983) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (19X1.85) | (BLACK)

54111-49500-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, AXLE RH

54741-49300

Unavailable

9

SPACER, AXLE LH

54741-49000

Unavailable

10

WASHER This part replaces 08322-21128.

08322-01127

$1.84

11

DUST SEAL

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-18401.

54600-18403

Unavailable

13

DISK, FRONT BRAKE RH

59211-45250

Unavailable

14

DISK, FRONT BRAKE LH

59221-45250

Unavailable

15

BOLT

09100-08140

$2.10

16

WASHER

09169-08016

$2.41

17

TIRE (3.25H19) IRC

55100-45011

Unavailable

17

TIRE (3.25H19) BS

55100-45430

Unavailable

18

TUBE This part replaces 55200-15010.

55200-44611

$33.73

18

TUBE This part replaces 55200-15030.

55200-44611

$33.73

19

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

19

BALANCER (30G)

55412-45100

Unavailable

19

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
