1983 Suzuki GS750S Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

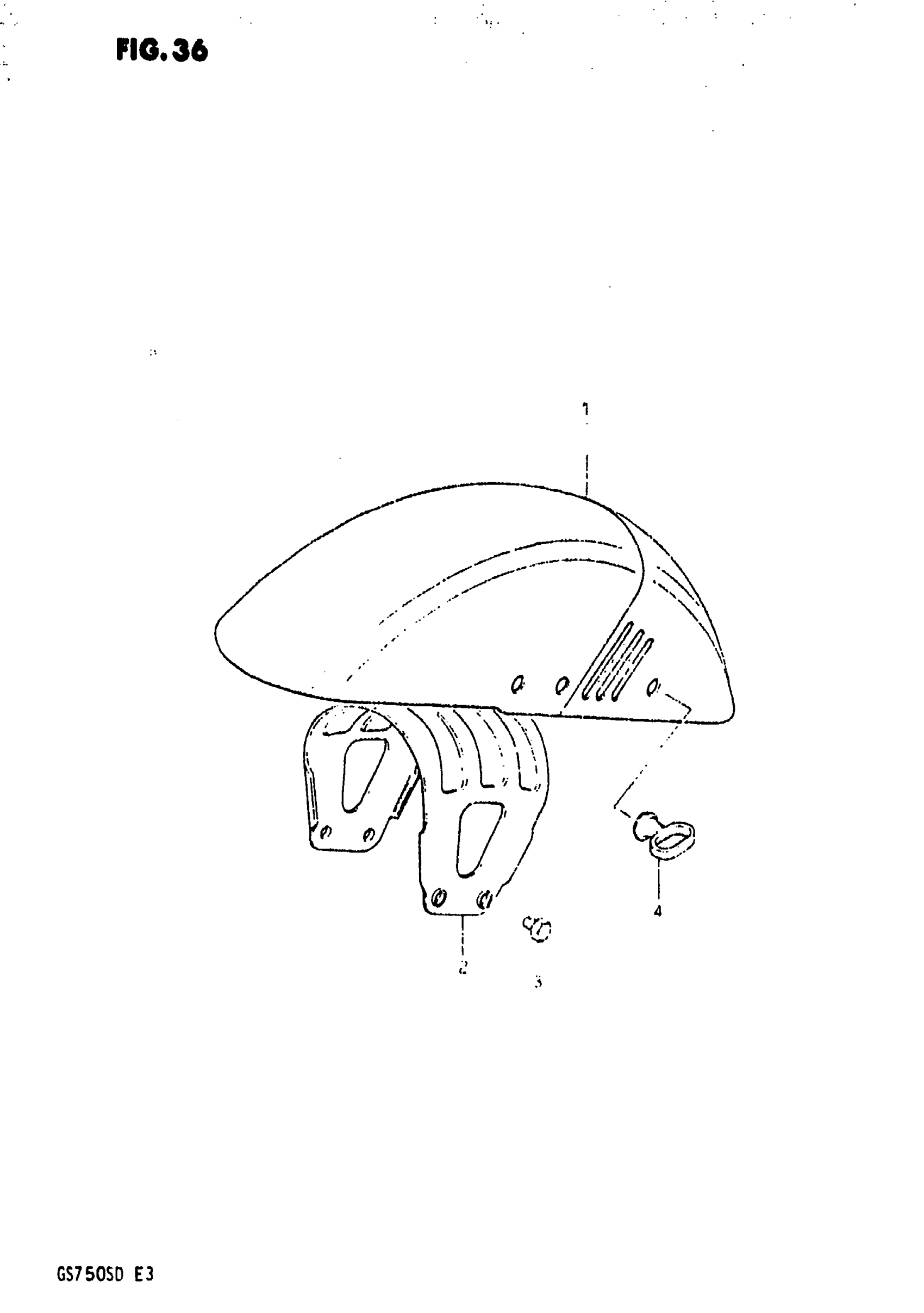

1983 Suzuki GS750S Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (SILVER/BLACK)

53111-49301-80A

1
Out of stock

2

BRACE, FRONT FENDER

53114-49301

1
Out of stock

3

BOLT,TRIM TAB This part replaces 09100-08135.

09100-08215

4
Out of stock

4

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

1
Out of stock
