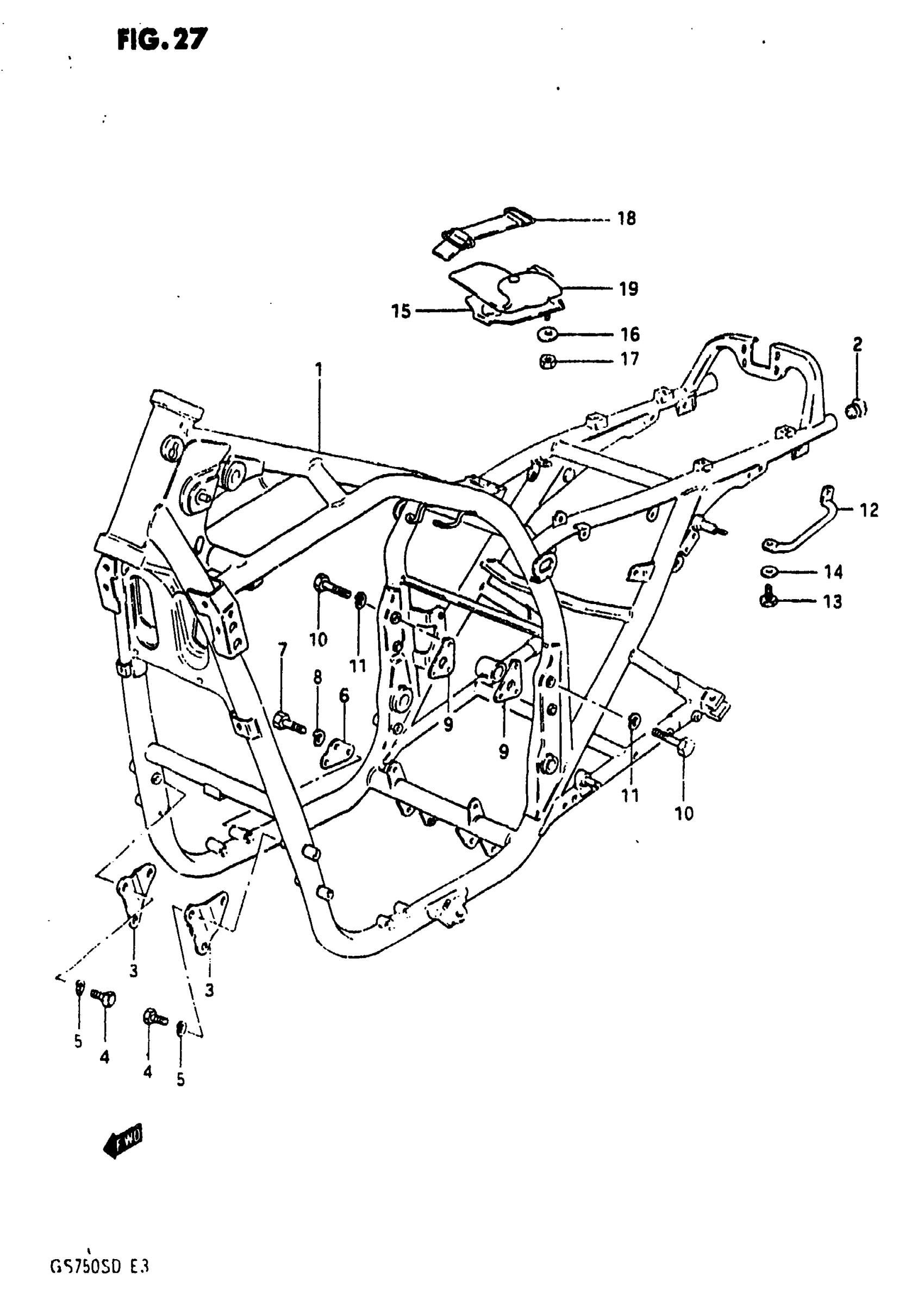

Suzuki GS750S (1983) FRAME Diagram

#

Description
Price

1

FRAME (SILVER)

41100-45503-13L

Unavailable

2

PLUG

09250-22002

$2.00

3

PLATE, NO. 1 (SILVER)

41911-45950-13L

Unavailable

4

BOLT

09104-08021

$3.98

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

6

PLATE, NO. 2 (SILVER)

41921-49000-13L

Unavailable

7

BOLT, LH (8X16) This part replaces 09104-08019.

09104-08035

$2.71

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

9

PLATE, NO. 4 (SILVER)

41940-49000-13L

Unavailable

10

PLUG, DRAIN This part replaces 01107-08163.

01500-0816B

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

12

GRIP, FRAME HANDLE

41610-49301

Unavailable

13

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

14

WASHER This part replaces 08322-11088.

08322-01087

$1.86

15

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$15.06

16

WASHER

09160-06021

Unavailable

17

.NUT This part replaces 08310-11068.

08310-00067

$1.83

18

BAND This part replaces 09462-00072.

09462-00094

$2.90

19

TOOL ASSY This part replaces 09800-00239.

09800-21068

Unavailable
