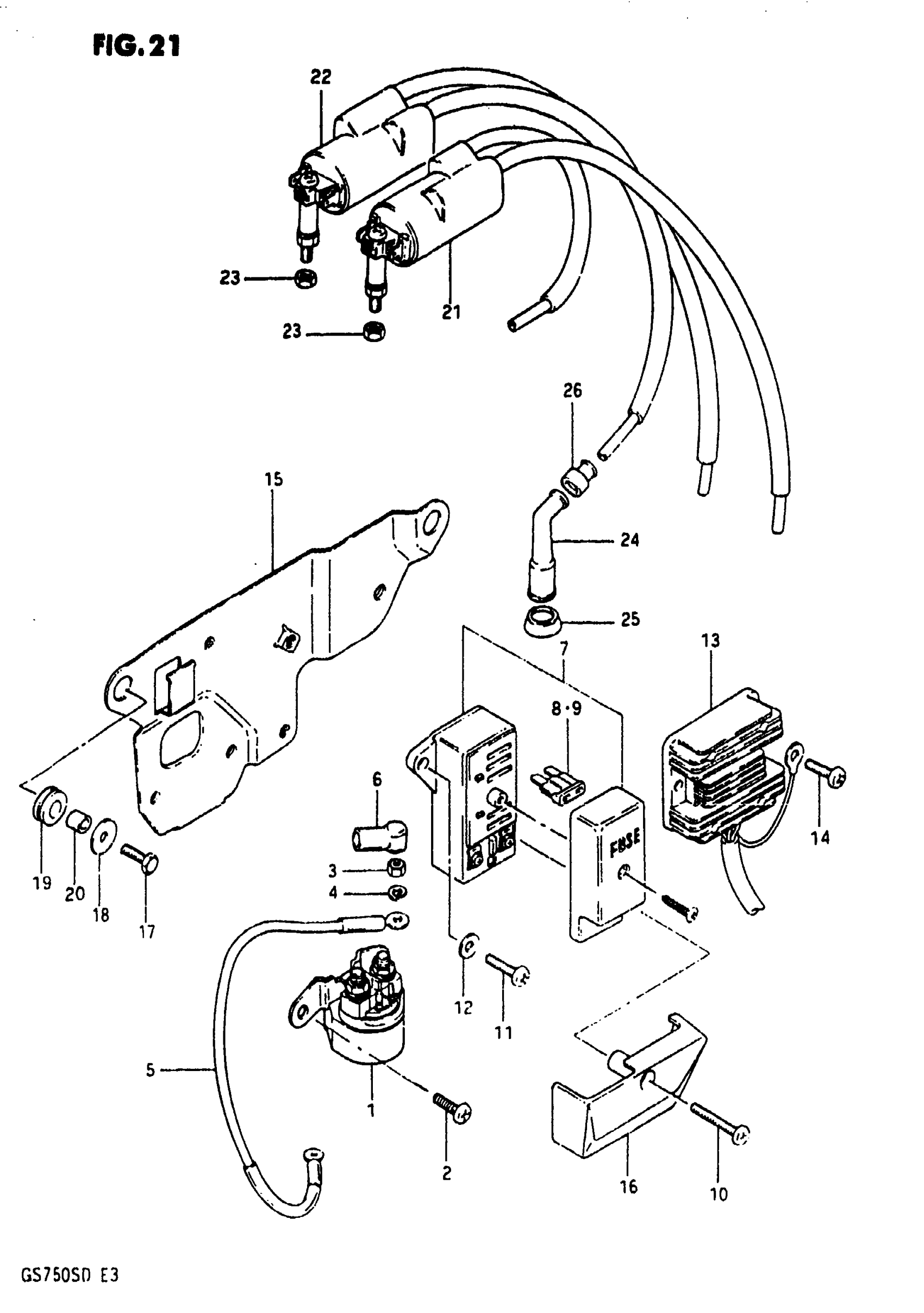

Suzuki GS750S (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR This part replaces 31800-33400.

31800-49100

$97.31

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, (-) This part replaces 33850-49002.

33850-03201

$9.94

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

BOX ASSY,FUSE | Includes Item(s) 8 - 9 This part replaces 36740-49300.

36740-45D00

Unavailable

8

FUSE (10A)

09481-10101

$2.07

9

FUSE (15A)

09481-15101

$2.53

10

SCREW This part replaces 02112-06355.

02112-0635B

$2.19

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

RECTIFIER ASSY This part replaces 32800-49320.

32800-49X50

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

NO DESCRIPTION AVAILABLE This part replaces 47410-49310.

47410-49311

Unavailable

16

COVER, PARTS HOLDER

47419-49301

Unavailable

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

18

WASHER This part replaces 09160-06063.

09160-06054

$1.62

19

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

20

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

21

COIL ASSY, IGNI This part replaces 33410-49210.

33410-31311

$161.13

22

COIL ASSY, IGNI This part replaces 33420-49210.

33410-31311

$161.13

23

.NUT This part replaces 08310-11068.

08310-00067

$2.13

24

CAP, SPARK PLUG

33510-45010

$24.99

25

SEAL, SPARK PLUG

33541-38210

$4.68

26

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
