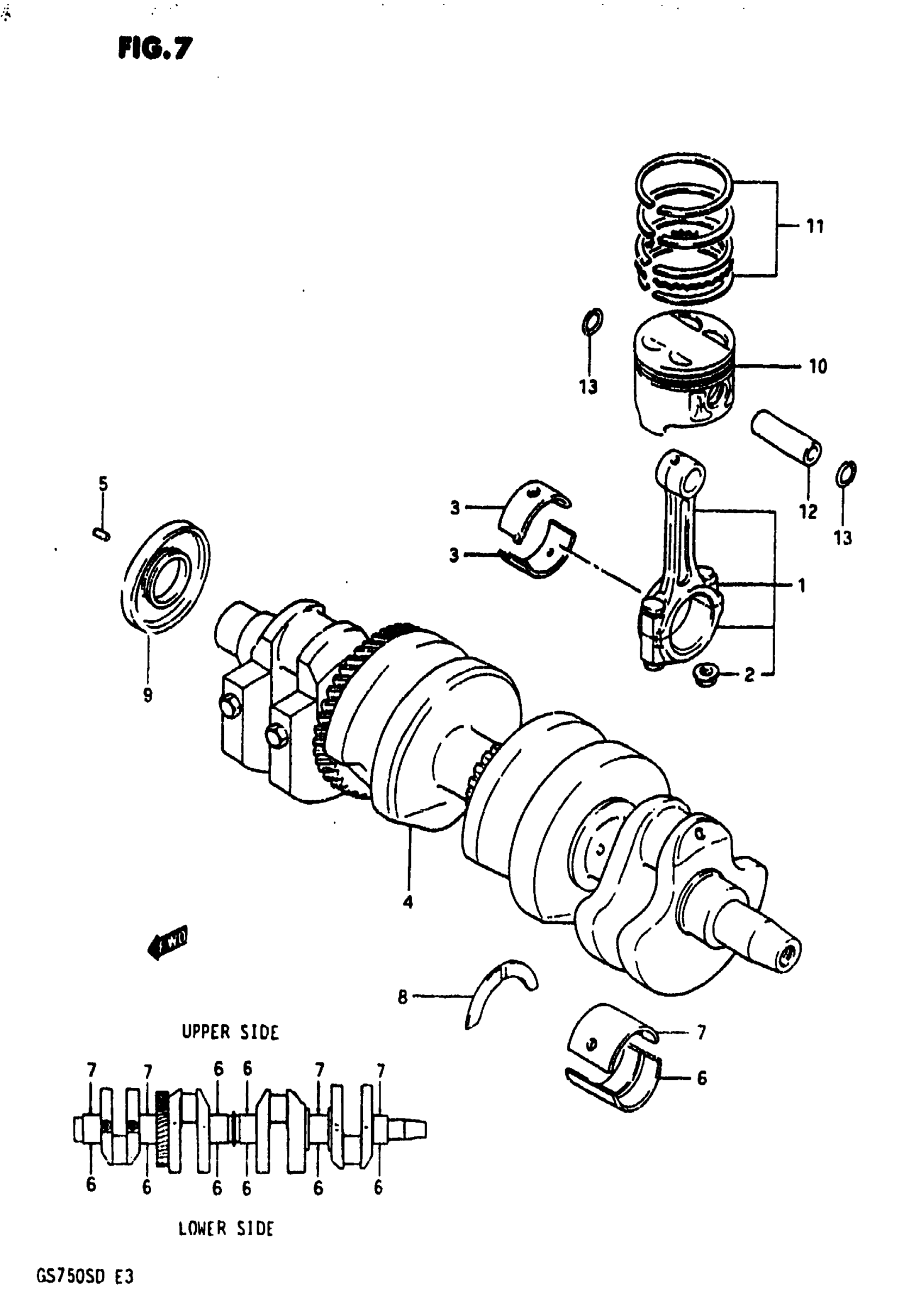

Suzuki GS750S (1983) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-45500

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-45510-010.

12164-31E00-0A0

$23.00

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-45510-020.

12164-31E00-0B0

$19.55

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-45510-030.

12164-31E00-0C0

$23.00

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-45510-040.

12164-31E00-0D0

$23.00

4

CRANKSHAFT | Includes Item(s) 5

12220-45500

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANKSHAFT (GREEN) This part replaces 12229-45400-010.

12229-09301-0A0

Unavailable

6

BEARING, CRANKSHAFT (BLACK) This part replaces 12229-45400-020.

12229-09301-0B0

Unavailable

6

BEARING, CRANKSHAFT (BROWN) This part replaces 12229-45400-030.

12229-09301-0C0

Unavailable

6

BEARING, CRANKSHAFT (YELLOW) This part replaces 12229-45400-040.

12229-09301-0D0

Unavailable

7

BEARING, CRANKSHAFT (GREEN) This part replaces 12229-45410-010.

12229-06B10-0A0

$12.00

7

BEARING, CRANKSHAFT (BLACK) This part replaces 12229-45410-020.

12229-06B10-0B0

$10.21

7

BEARING, CRANKSHAFT (BROWN) This part replaces 12229-45410-030.

12229-06B10-0C0

$10.21

7

BEARING, CRANKSHAFT (YELLOW) This part replaces 12229-45410-040.

12229-06B10-0D0

$12.45

8

THRUST BEARING (BLACK)

12228-31302

Unavailable

8

THRUST BEARING (GREEN)

12228-31304

Unavailable

8

THRUST BEARING (WHITE)

12228-31306

Unavailable

9

OIL SEAL This part replaces 09283-30031.

09283-30048

Unavailable

10

PISTON (STD) | STD This part replaces 12111-45410.

12111-45402

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-45410-050.

12103-45840-050

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-45410-100.

12103-45840-100

Unavailable

11

PISTON RING SET | STD This part replaces 12140-45410.

12140-31311

Unavailable

11

PISTON RING SET (OS:0.5) | OPT This part replaces 12140-45410-050.

12140-31311-050

Unavailable

11

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-45410-100.

12140-31311-100

Unavailable

12

PIN, PISTON

12151-45501

$17.37

13

CIRCLIP

09381-18002

$1.67
