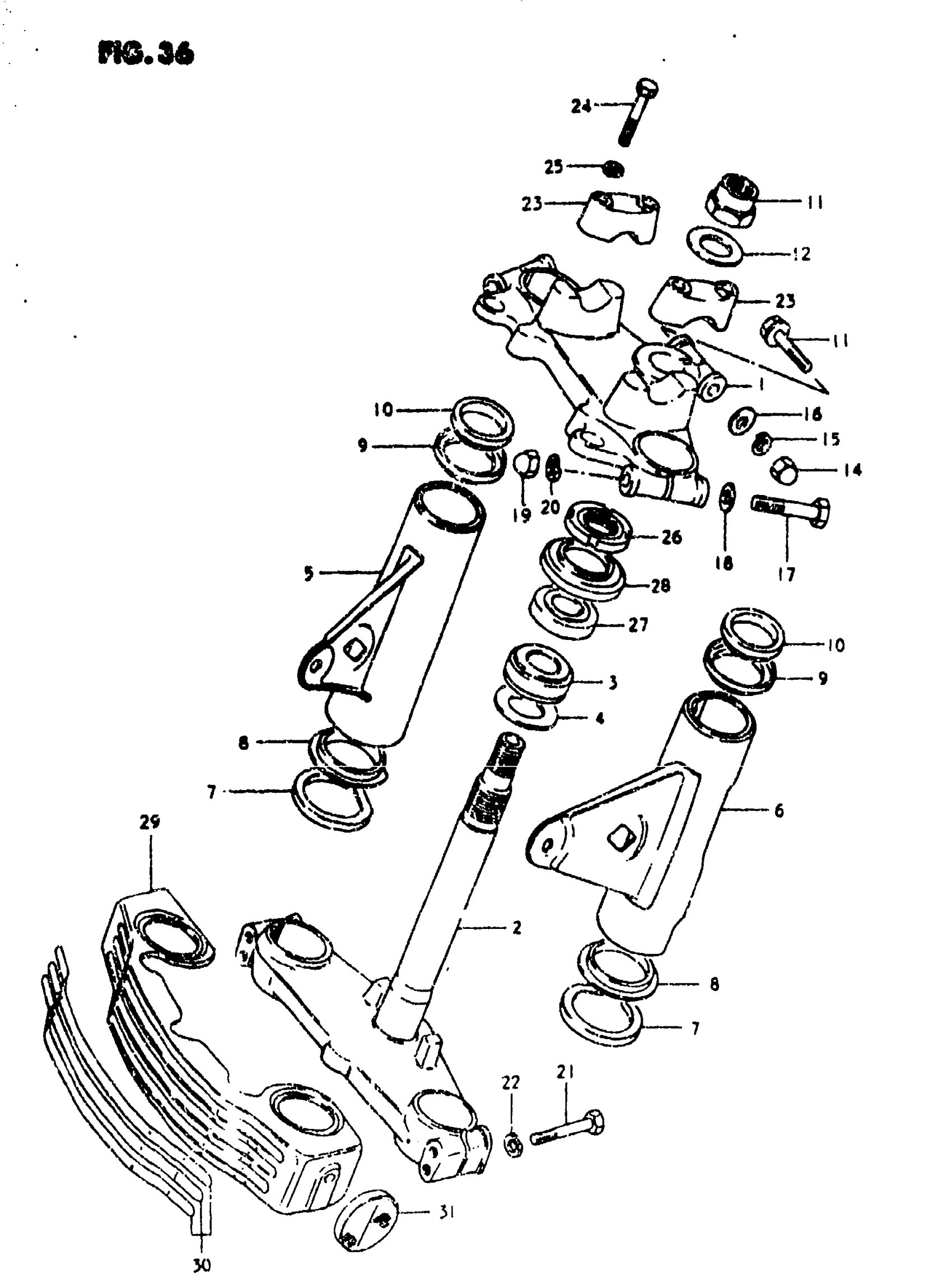

Suzuki GS750L (1981) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING

51311-47200-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-45841.

51400-45862

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH

51530-45210

Unavailable

6

BRACKET, HEADLAMP LH

51540-45210

Unavailable

7

SEAT

51551-45200

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 51553-45210.

51553-45211

Unavailable

9

CAP

51555-31000

Unavailable

10

CUSHION

51556-31000

Unavailable

11

NUT

51353-45000

$9.69

12

WASHER

51356-31700

Unavailable

13

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

14

NUT This part replaces 08313-11085.

08313-1008B

$2.80

15

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

18

WASHER This part replaces 08322-11108.

08322-01107

$2.15

19

NUT This part replaces 08313-11108.

08313-10107

$2.50

20

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

21

BOLT This part replaces 01107-08458.

01500-08453

$2.50

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

CLAMP, HANDLEBAR UPPER

56211-27200-291

$17.90

24

BOLT

01204-08357

$2.09

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

NUT, STEERING STEM

51631-28000

$17.37

27

BEARING

09265-25008

Unavailable

28

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

29

COVER, FRONT FORK | MODEL T This part replaces 51871-49100.

51871-49102

Unavailable

29

COVER, FRONT FORK | MODEL X This part replaces 51871-49101.

51871-49102

Unavailable

30

TAPE

68200-49810

Unavailable

31

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
