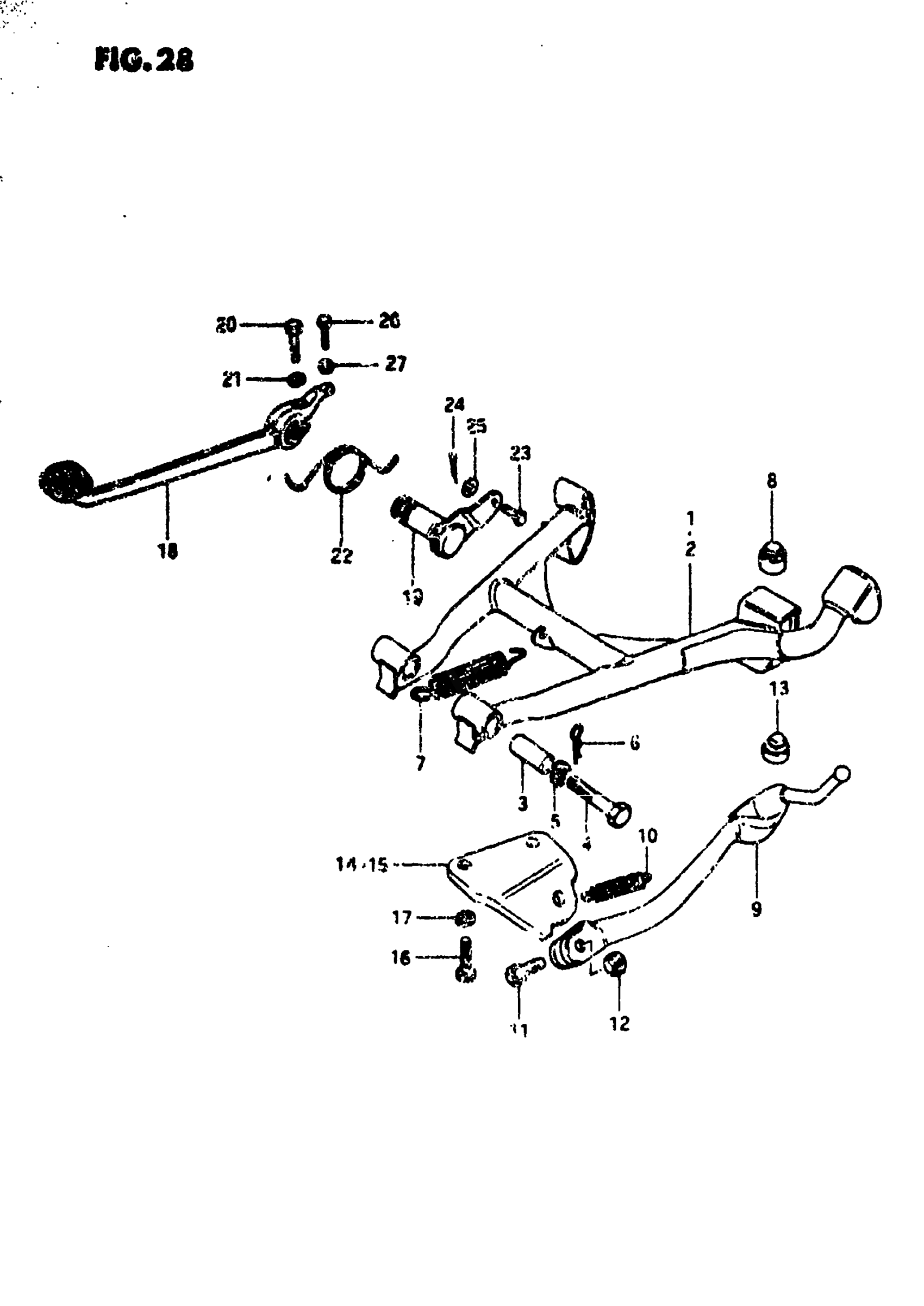

Suzuki GS750L (1981) STAND Diagram

#

Description
Price

1

STAND, CENTER | MODEL T

42100-49102

Unavailable

2

STAND, CENTER | MODEL X

42100-45250

Unavailable

3

SPACER

09180-10040

$2.56

4

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

CLIP This part replaces 09385-10001.

09385-10005

$1.56

7

SPRING This part replaces 09443-20001.

09443-20001-XC0

$7.53

8

CUSHION | MODEL T

09321-10001

$2.61

8

CUSHION | MODEL X

09321-10002

$2.22

9

STAND, PROP

42310-45000

Unavailable

10

SPRING This part replaces 09443-17005.

09443-17008-XC0

$6.98

11

BOLT

09100-10067

$2.61

12

NUT This part replaces 08310-22108.

08310-00107

$2.19

13

CUSHION

09320-07001

$2.92

14

BRACKET | MODEL T

42330-49000

Unavailable

15

BRACKET | MODEL X

42330-45250

Unavailable

16

BOLT This part replaces 09100-10007.

09100-10287

$3.48

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

PEDAL, BRAKE

43110-49200

Unavailable

19

ARM, BRAKE PEDAL ROD

43120-49200

Unavailable

20

BOLT This part replaces 01107-08258.

01500-08257

$2.50

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

SPRING This part replaces 09448-37002.

09448-37002-XC0

Unavailable

23

PIN

09200-06029

Unavailable

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

BOLT This part replaces 01107-06208.

01500-06207

$2.28

27

.NUT This part replaces 08310-11068.

08310-00067

$2.13
