1981 Suzuki GS750L Rear Combination Lamp Diagram

← All diagrams

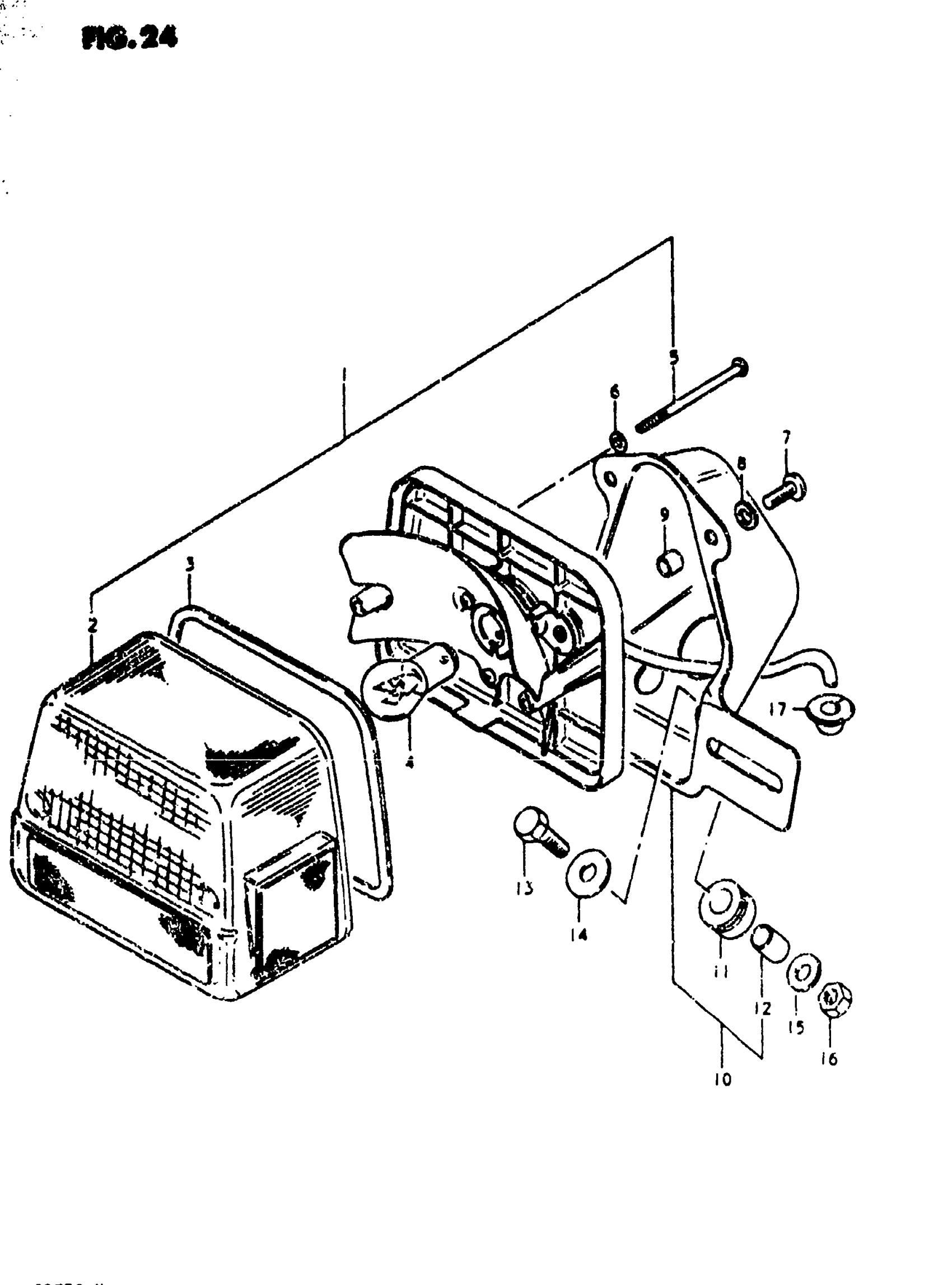

Find the part on the Rear Combination Lamp diagram for your 1981 Suzuki GS750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS750L Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 9 This part replaces 35720-49130.

35720-49130-999

1
Out of stock

2

LENS

35712-49130

1
Out of stock

3

GASKET

35713-49130

1
Out of stock

4

BULB (12V,23/8W)

09471-12035

1
Out of stock

5

SCREW

35723-44130

2

$2.50

In stock

6

GASKET

35627-43010

2

$2.65

In stock

7

2

$2.10

In stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

9

SPACER

35766-39210

2
Out of stock

10

BRACKET ASSY | Includes Item(s) 11 - 12

35730-49130

1
Out of stock

11

CUSHION

35765-22210

3

$3.95

In stock

12

SPACER

35766-37120

3
Out of stock

13

3

$2.10

In stock

14

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

15

3

$1.84

In stock

16

3

$1.82

In stock

17

GROMMET, LEAD WIRE

09308-07004

2

$2.58

In stock
