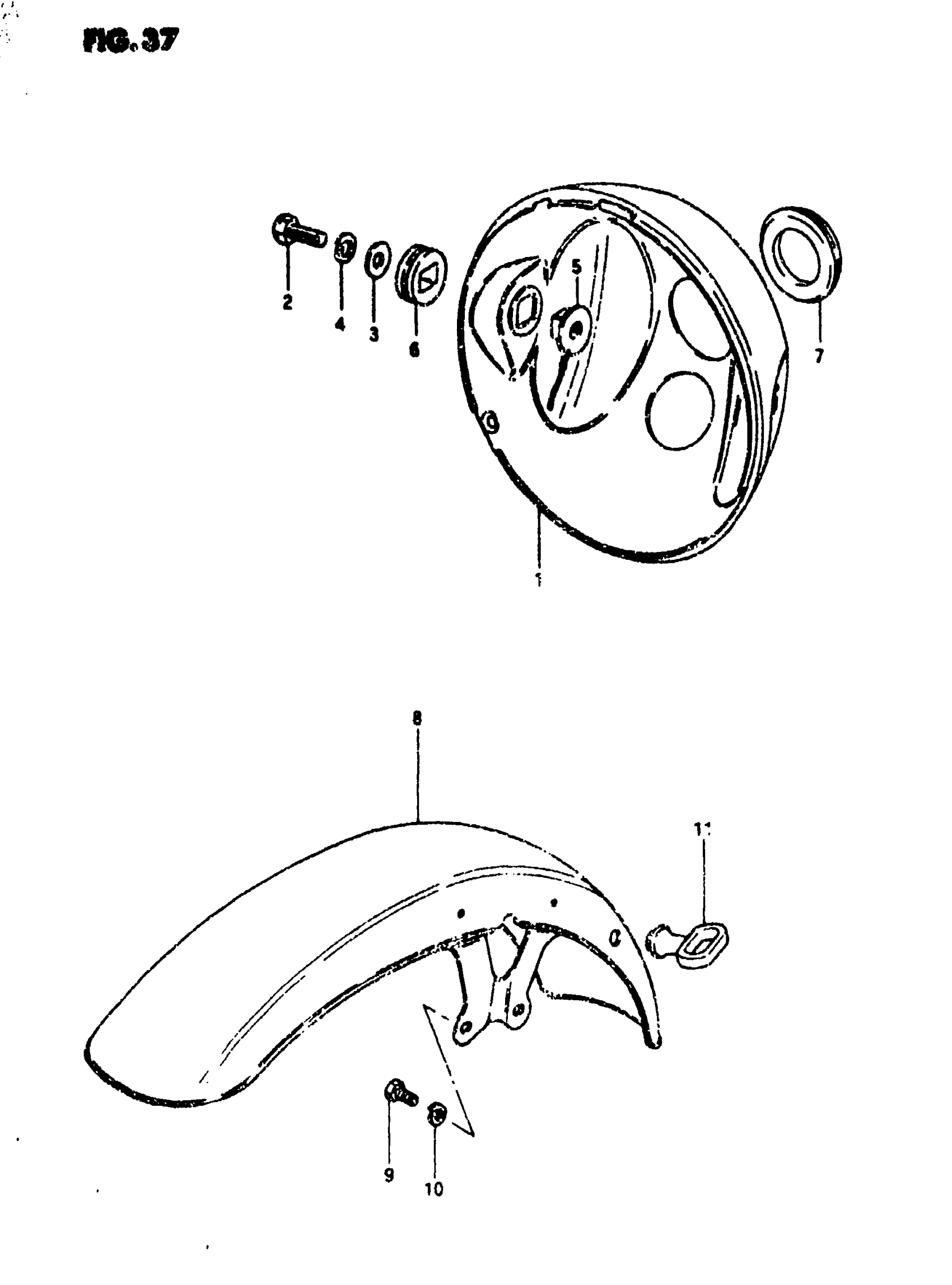

Suzuki GS750L (1981) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEADLAMP

51810-33600

Unavailable

2

BOLT

01204-08207

$2.30

3

WASHER This part replaces 08322-11088.

08322-01087

$2.13

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

6

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

7

GROMMET

51845-31031

$4.52

8

FENDER, FRONT This part replaces 53110-49112.

53110-45311

Unavailable

9

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
