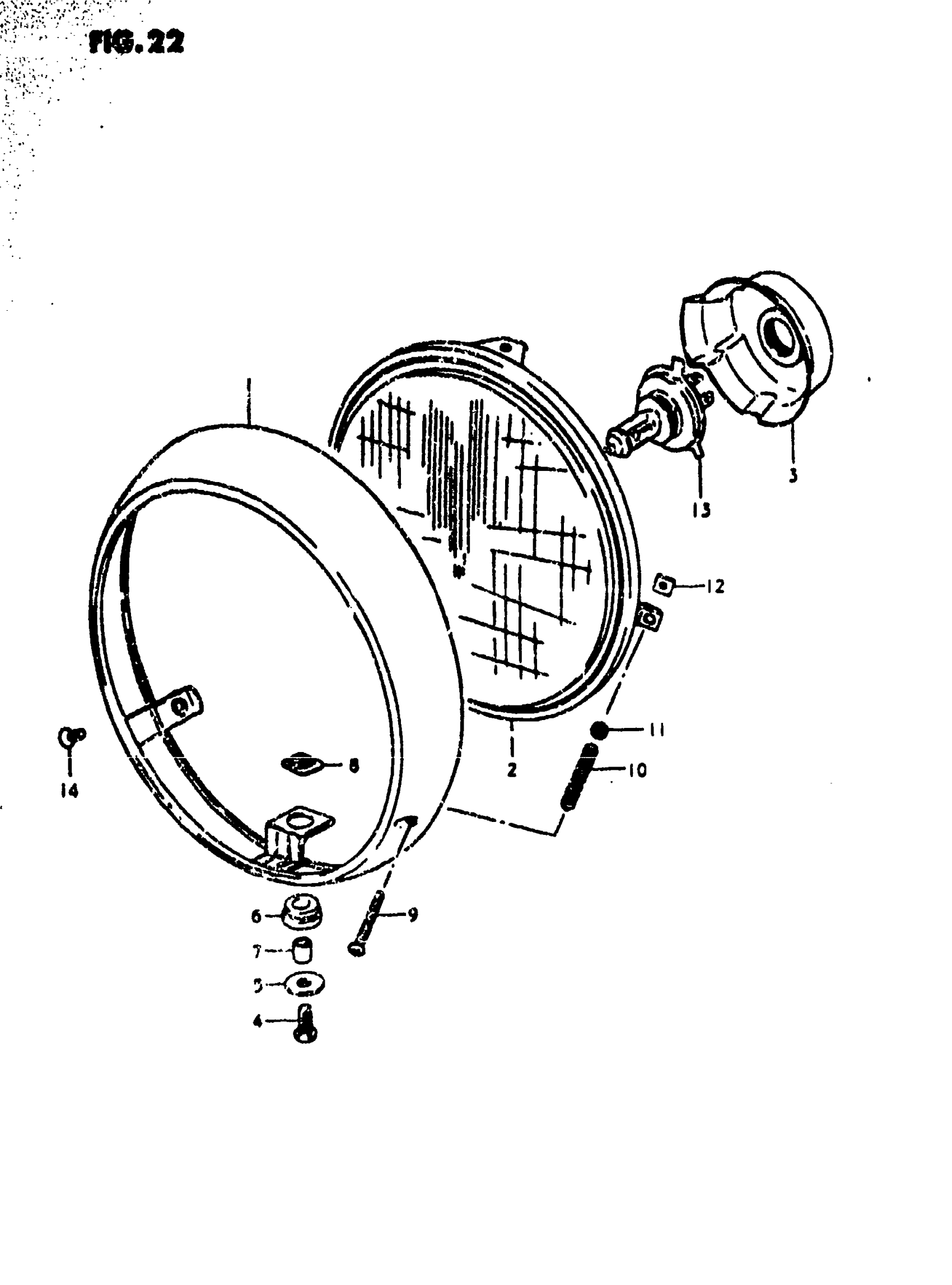

Suzuki GS750L (1981) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | Includes Item(s) 1 - 12

35100-45231-999

Unavailable

1

RIM

35111-45231

Unavailable

2

UNIT

35121-45230

Unavailable

3

COVER | MODEL T

35173-45230

Unavailable

3

COVER | MODEL X

35173-45200

Unavailable

4

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-45230

$3.30

8

NUT

35155-48510

$2.28

9

SCREW | MODEL T This part replaces 35151-48510.

35151-45230

Unavailable

9

SCREW, ADJUSTER | MODEL X

35151-45230

Unavailable

10

SPRING This part replaces 35154-45230.

35154-48510

Unavailable

11

WASHER This part replaces 35157-48510.

35157-27630

$3.25

12

NUT This part replaces 35152-48510.

35135-45600

$3.65

13

BULB (12V, 60/55W)

09471-12060

$25.15

14

SCREW This part replaces 02132-05108.

02122-05107

$1.49
