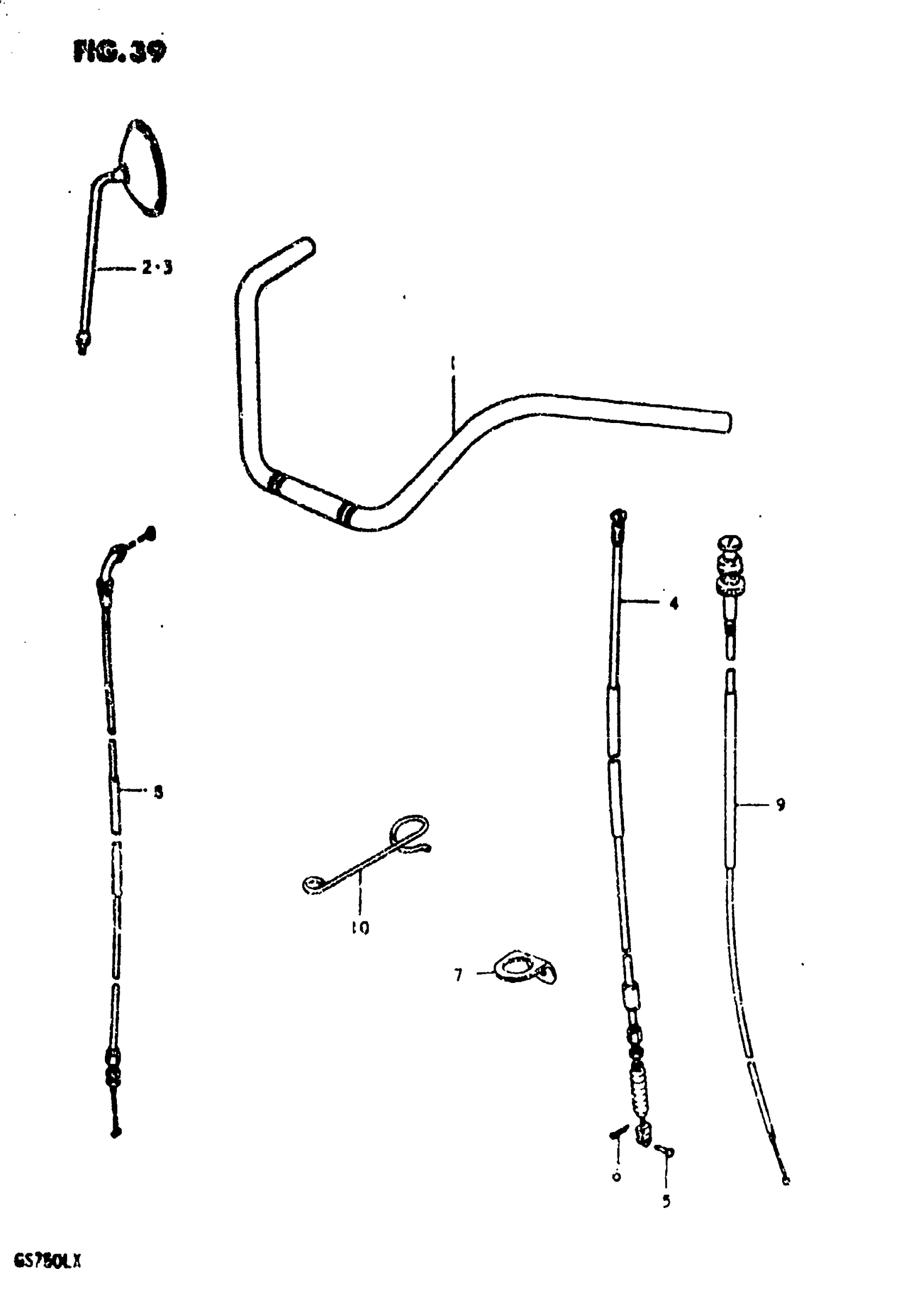

Suzuki GS750L (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL T

56111-45200

Unavailable

1

HANDLEBAR | MODEL X This part replaces 56111-45210.

56110-45210

Unavailable

2

MIRROR ASSY,RR | MODEL T This part replaces 56500-49100.

56500-44202

$69.23

2

MIRROR ASSY,RR | MODEL X This part replaces 56500-44200.

56500-44202

$69.23

3

MIRROR ASSY,LH | MODEL T This part replaces 56600-49100.

56600-44202

$97.60

3

MIRROR ASSY,LH | MODEL X This part replaces 56600-44200.

56600-44202

$97.60

4

CABLE, CLUTCH | MODEL T

58200-45210

Unavailable

4

CABLE, CLUTCH | MODEL X This part replaces 58200-45220.

58200-49140

Unavailable

5

PIN

09200-06011

Unavailable

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

GUIDE

59243-45010

Unavailable

8

CABLE,THROTTLE | MODEL T This part replaces 58300-45210.

58300-47X02

Unavailable

8

CABLE, THROTTLE | MODEL X This part replaces 58300-45220.

58300-45221

Unavailable

9

CABLE, STARTER This part replaces 58400-47000.

58400-45110

Unavailable

10

CLAMP This part replaces 58626-45100.

58626-45101

Unavailable
