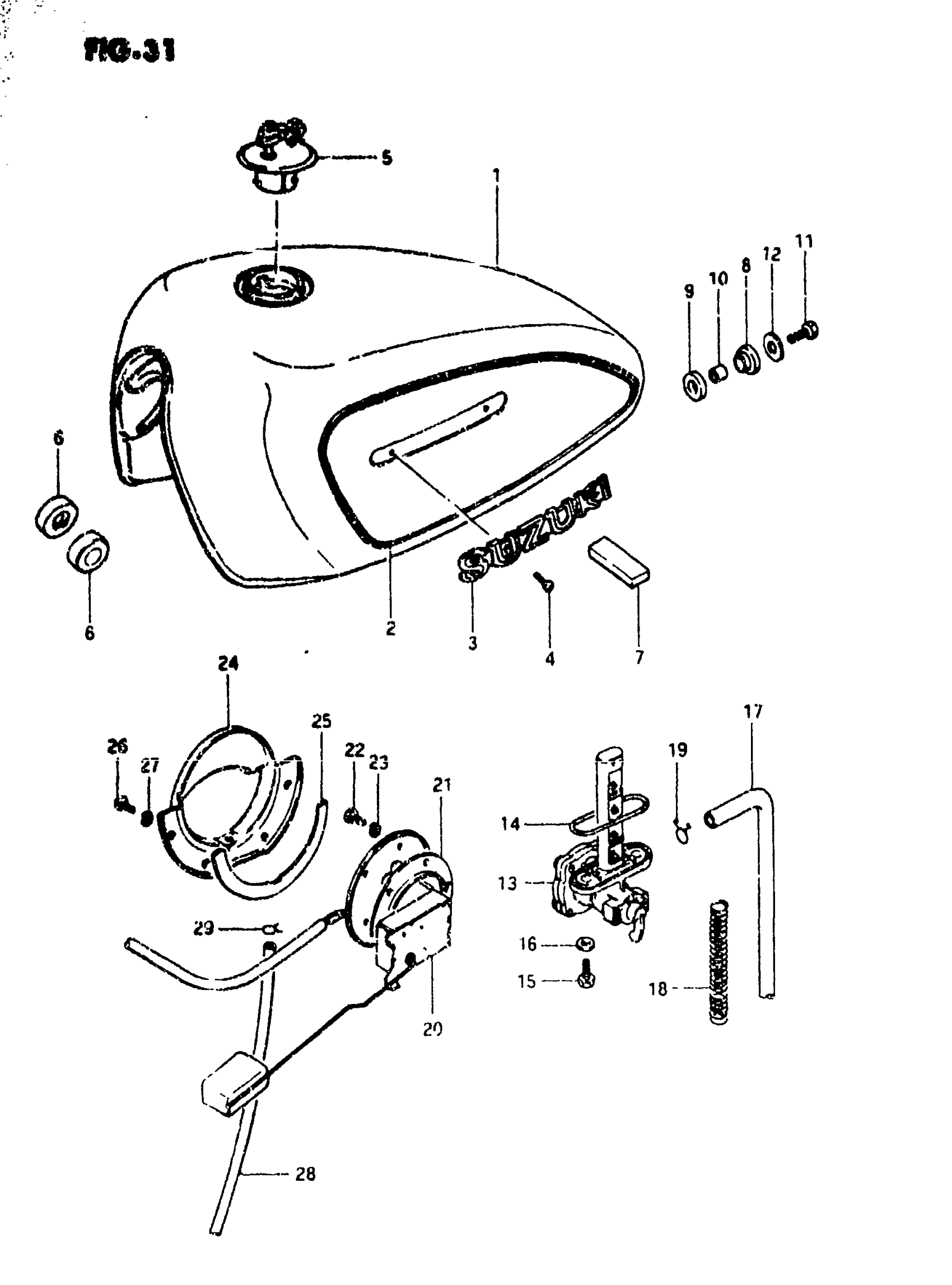

Suzuki GS750L (1981) FUEL TANK (GS750LX) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-45210-019.

44110-45212-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-45210-05N.

44110-45212-13L

Unavailable

2

TAPE SET (GOLD)

68110-45210-764

Unavailable

3

EMBLEM This part replaces 68111-45200.

68111-45010

$22.93

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.28

5

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$105.35

6

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

7

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

$4.36

8

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.68

9

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.02

10

SPACER

09180-08067

$2.40

11

BOLT This part replaces 01107-08308.

01500-08307

$2.80

12

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.10

13

COCK ASSY,FUEL | Includes Item(s) 14 This part replaces 44300-34470.

44300-45373

$66.03

14

O RING This part replaces 44348-49170.

44348-49171

$2.80

15

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53

16

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

17

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$13.82

18

SPRING This part replaces 09440-13017.

09440-13043

$7.72

19

CLIP

09401-10403

$1.67

20

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 21

34810-49100

Unavailable

21

GASKET

34825-45100

$5.30

22

BOLT This part replaces 01104-05108.

01500-0510B

$1.81

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

24

PLATE This part replaces 34885-49002.

34885-49005

Unavailable

25

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

Unavailable

26

SCREW This part replaces 02112-05088.

02112-05087

$1.45

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

28

HOSE This part replaces 09343-05165.

09352-50005-00B

$12.58

29

CLIP

09401-08402

$1.38
