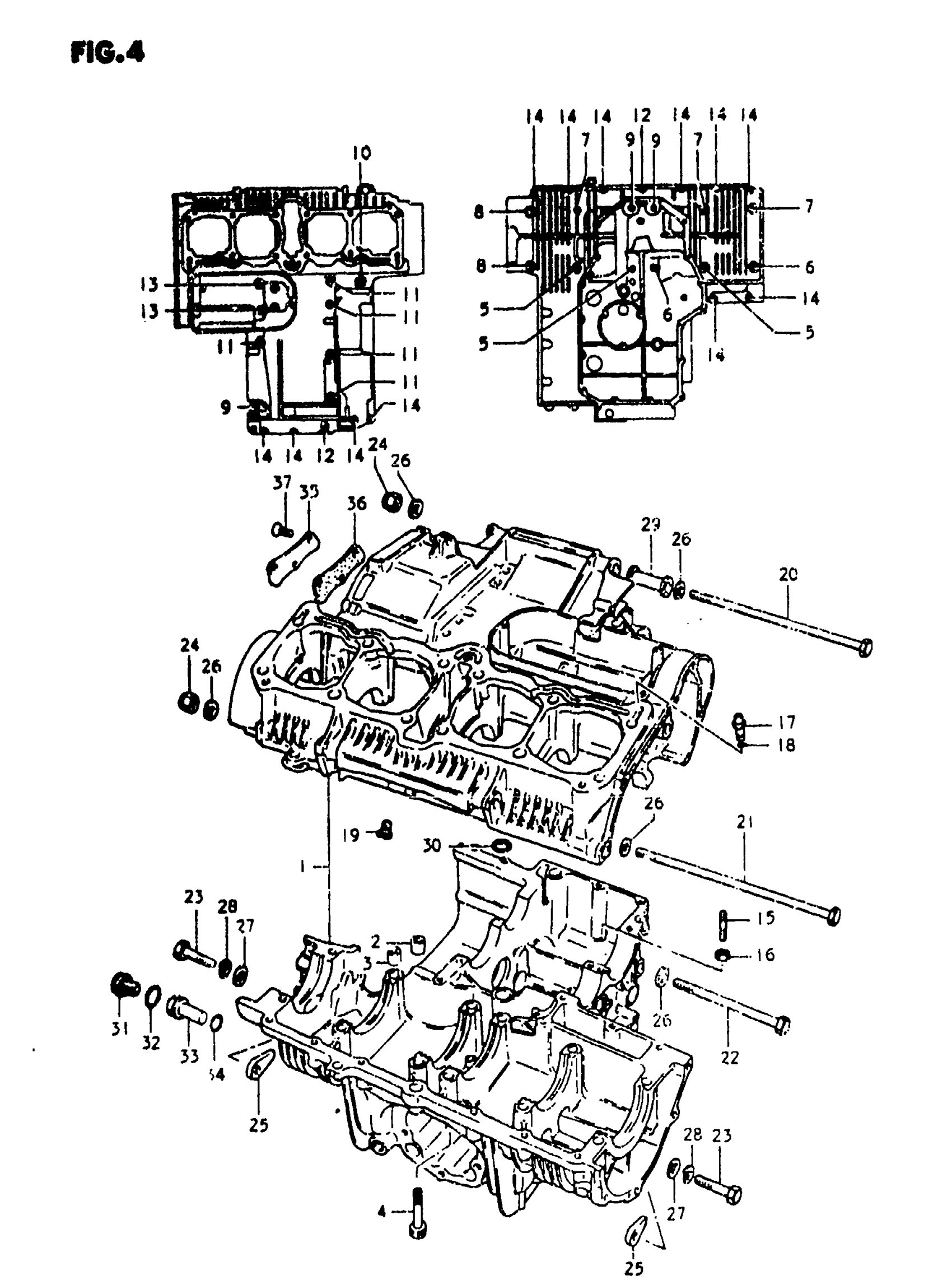

Suzuki GS750L (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-45830.

11300-45832

Unavailable

1

CRANKCASE SET | FOR CRANKSHAFT THRUST BEARING; Includes Item(s) 2 - 19 This part replaces 11300-45831.

11300-45832

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 09106-08015.

07130-0860B

Unavailable

5

BOLT (8X140)

09103-08040

$5.52

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

7

BOLT This part replaces 01517-08958.

01550-08957

$5.37

8

BOLT This part replaces 01517-08708.

01550-08707

$3.91

9

BOLT This part replaces 01517-08658.

01550-08657

$4.68

10

BOLT (6x95)

01517-06958

Unavailable

11

BOLT This part replaces 01517-06808.

01550-06807

Unavailable

12

BOLT This part replaces 01517-06608.

01550-06607

$4.17

13

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

14

BOLT This part replaces 01517-06408.

01550-06407

$2.69

15

BOLT,STUD This part replaces 01421-06358.

01421-0635A

$2.38

16

NUT This part replaces 08316-16068.

08319-31067

$2.03

17

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

18

O RING, NOZZLE This part replaces 09280-03001.

09280-03003

$1.91

19

JET, OIL GALLERY MISSION

09493-24005

Unavailable

20

BOLT (10x230)

09100-10140

Unavailable

21

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

Unavailable

22

BOLT (10x165)

09100-10078

$12.70

23

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

24

NUT

09159-10011

$3.23

25

NUT

09159-10020

$5.18

26

WASHER This part replaces 08322-11108.

08322-01107

$2.15

27

WASHER

09160-10005

$1.87

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

29

SPACER (L:65) This part replaces 11610-49000.

11610-49300

$18.02

30

O RING

09280-13001

$2.72

31

PLUG, OIL GALLERY

09247-18001

$8.83

32

O RING

09280-18004

$5.18

33

PIN

11329-45400

Unavailable

34

O RING (D:1.9,ID:9.8) This part replaces 09280-10005.

09280-10016

$3.37

35

CAP, OIL GALLERY

11394-45000

Unavailable

36

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

37

SCREW This part replaces 02122-06168.

02122-06167

$1.49
