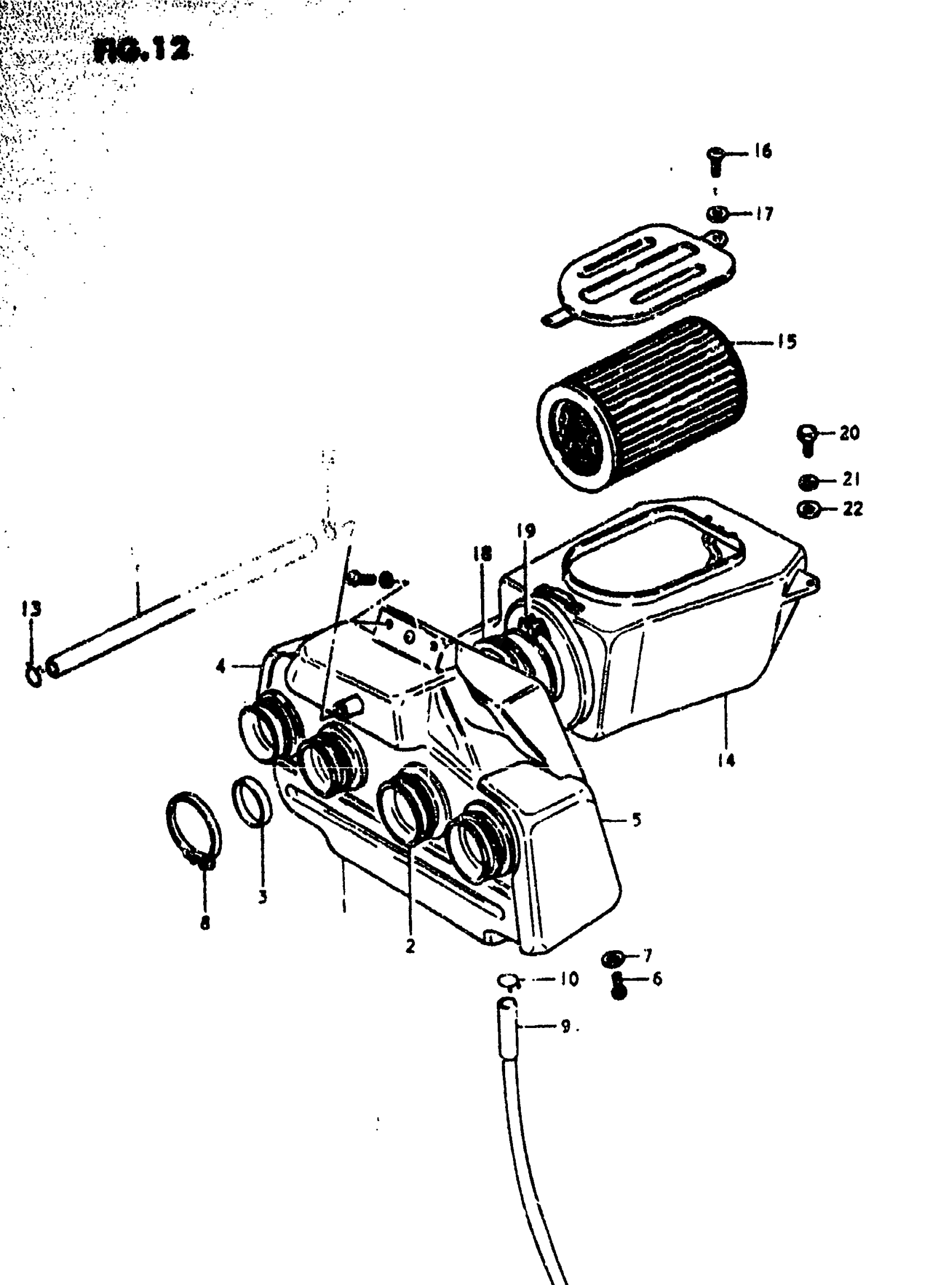

Suzuki GS750L (1981) AIR CLEANER Diagram

#

Description
Price

1

CASE ASSY, FRONT | Includes Item(s) 2 - 7

13710-45400

Unavailable

2

HOSE, OUTLET This part replaces 13881-49200.

13881-49021

$14.53

3

RING This part replaces 13885-49200.

13885-47030

$8.30

4

COVER, RH

13831-49200

Unavailable

5

COVER, LH

13832-49200

Unavailable

6

SCREW This part replaces 02112-05108.

02112-05107

$1.49

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

..CLAMP This part replaces 09402-60306.

09402-60208

$5.11

9

TUBE,DRAIN This part replaces 13870-00020.

13870-11459

$15.51

10

CLIP

09401-14301

$2.35

11

HOSE,11X15X2000 This part replaces 13851-00225.

09352-11154-00B

$48.35

12

CLIP

13859-49200

Unavailable

13

CLIP

09401-14301

$2.35

14

NO DESCRIPTION AVAILABLE | Includes Item(s) 15 - 19 This part replaces 13700-49810.

13700-49830

Unavailable

15

FILTER This part replaces 13780-49200.

13780-45500

Unavailable

16

SCREW This part replaces 02112-05128.

02112-05127

$1.97

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13

18

HOSE, JOINT This part replaces 13801-49200.

13795-49000

Unavailable

19

CLAMP This part replaces 09402-70306.

09402-70306-XC0

$5.55

20

BOLT This part replaces 01107-06208.

01500-06207

$2.28

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26
