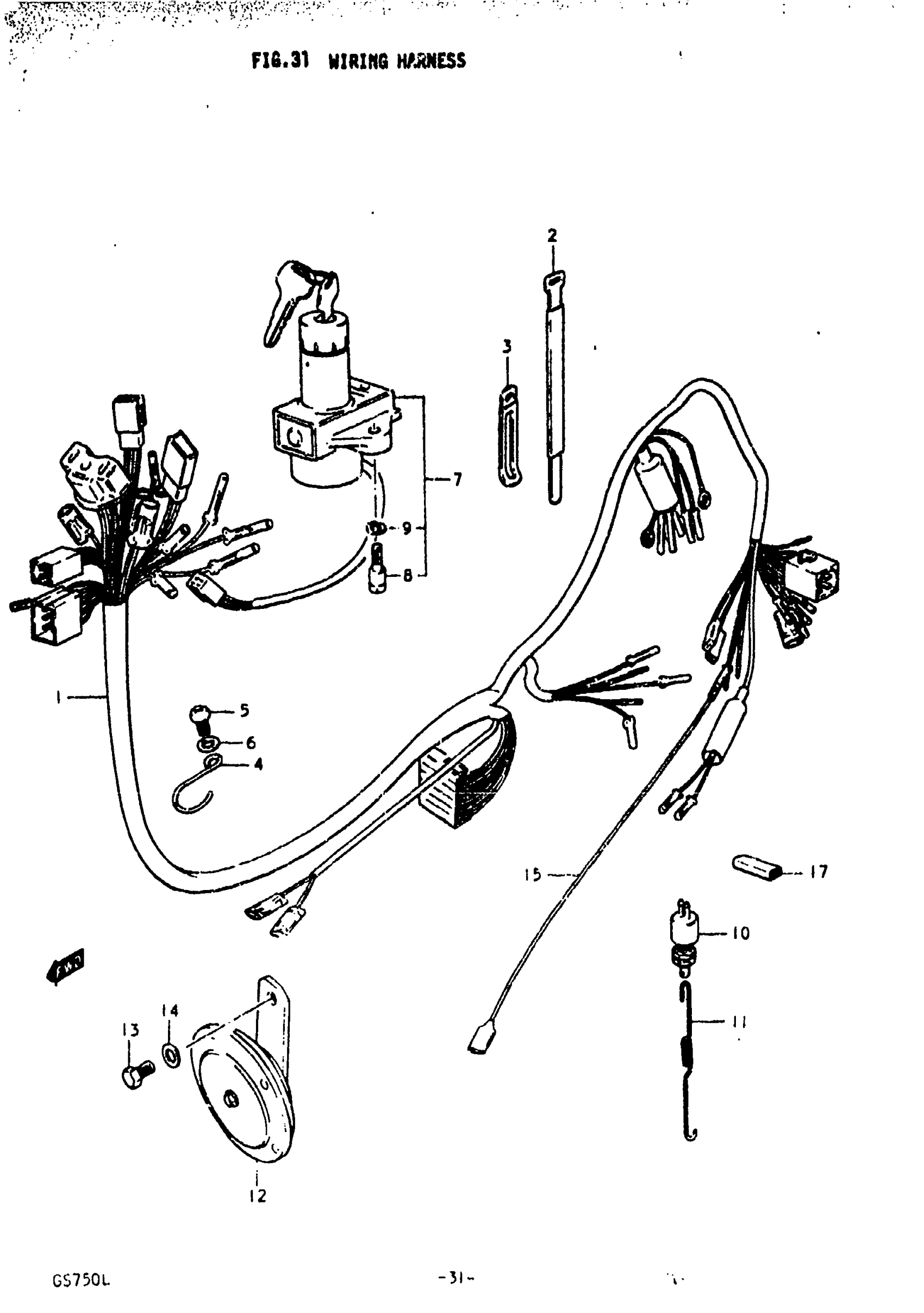

Suzuki GS750L (1979) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-45200.

36610-45201

Unavailable

2

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

4

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

5

SCREW This part replaces 02112-06128.

02112-06127

$1.84

6

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

7

SWITCH ASSY, IGNITION | Includes Item(s) 8 - 9 This part replaces 37100-47010.

37100-45301

Unavailable

8

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

SWITCH, BRAKE LAMP

37610-53011

$30.75

11

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

12

HORN ASSY This part replaces 38500-64130.

38502-49001

Unavailable

13

BOLT This part replaces 01107-08128.

01500-08127

$2.62

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

Unavailable

16

PROTECTOR, WIRING HARNESS

36611-38000

Unavailable
