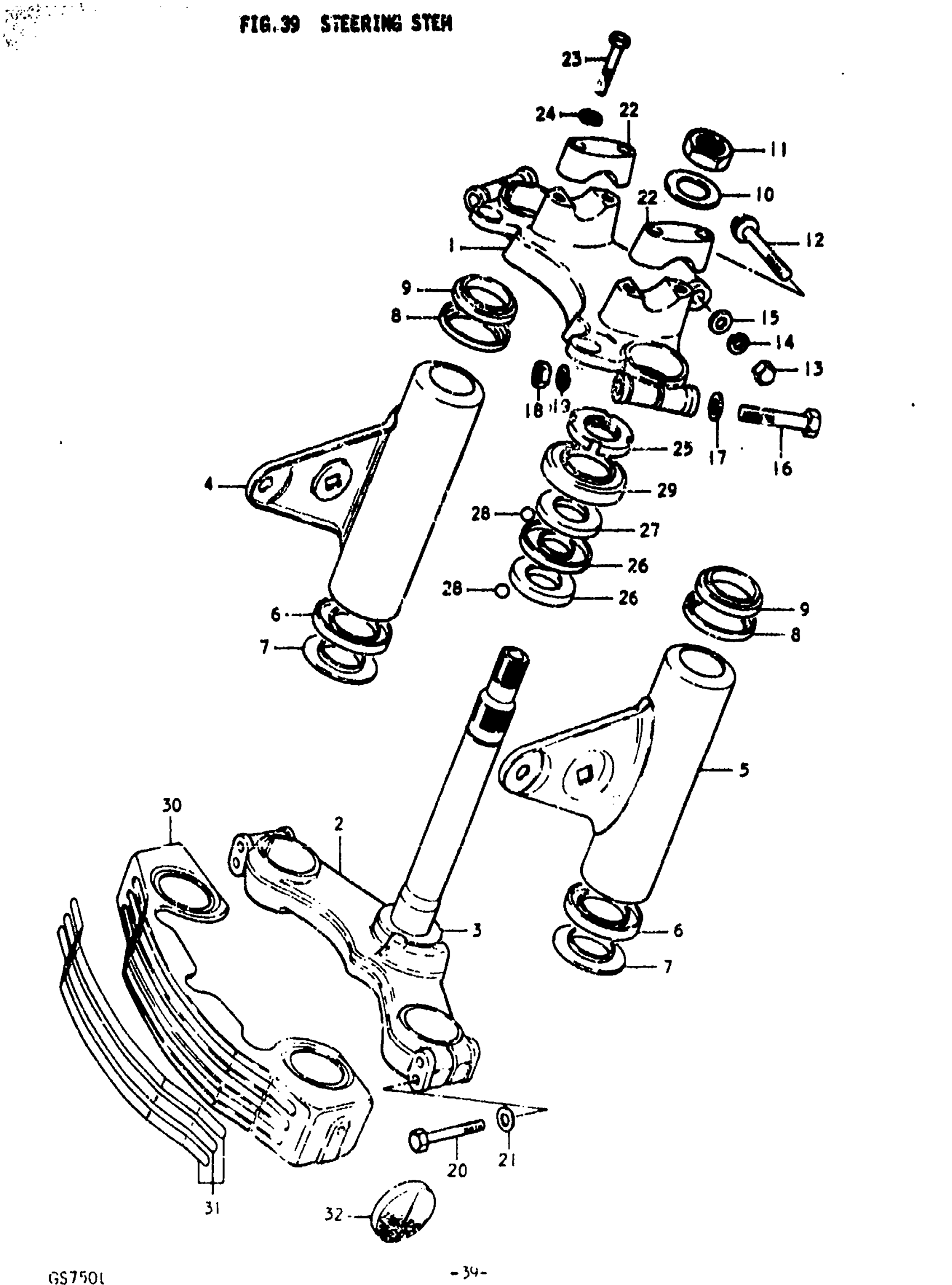

Suzuki GS750L (1979) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-45201-291

Unavailable

2

STEERING STEM | Includes Item(s) 3

51410-45201

Unavailable

3

OUTER RACE

51621-33001

$16.25

4

BRACKET, HEADLAMP RH

51530-45200

Unavailable

5

BRACKET, HEADLAMP LH This part replaces 51540-45200.

51540-45201

Unavailable

6

SEAT

51551-31000

Unavailable

7

CUSHION

51553-45200

Unavailable

8

CAP, HEADLAMP BRACKET

51555-31000

Unavailable

9

CUSHION, UPPER

51556-45200

Unavailable

10

WASHER

51356-31700

Unavailable

11

NUT

51353-45000

$9.69

12

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

13

NUT This part replaces 08313-11088.

08313-10087

$2.28

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

NUT This part replaces 08313-11108.

08313-10107

$2.50

19

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

20

BOLT This part replaces 01107-08458.

01500-08453

$2.50

21

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

22

CLAMP, HANDLEBAR UPPER

56211-27200-291

$17.90

23

BOLT

01204-08357

$2.09

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NUT, STEERING STEM

51631-28000

$17.37

26

INNER RACE

51611-33002

$13.81

27

OUTER RACE, UPPER

51621-30001

Unavailable

28

STEEL BAL@

06111-08003

$1.49

29

DUST SEAL, UPPER

51643-30000

Unavailable

30

COVER, FRONT FORK

51870-49100

Unavailable

31

TAPE SET, FRONT FORK COVER

68200-49810

Unavailable

32

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
