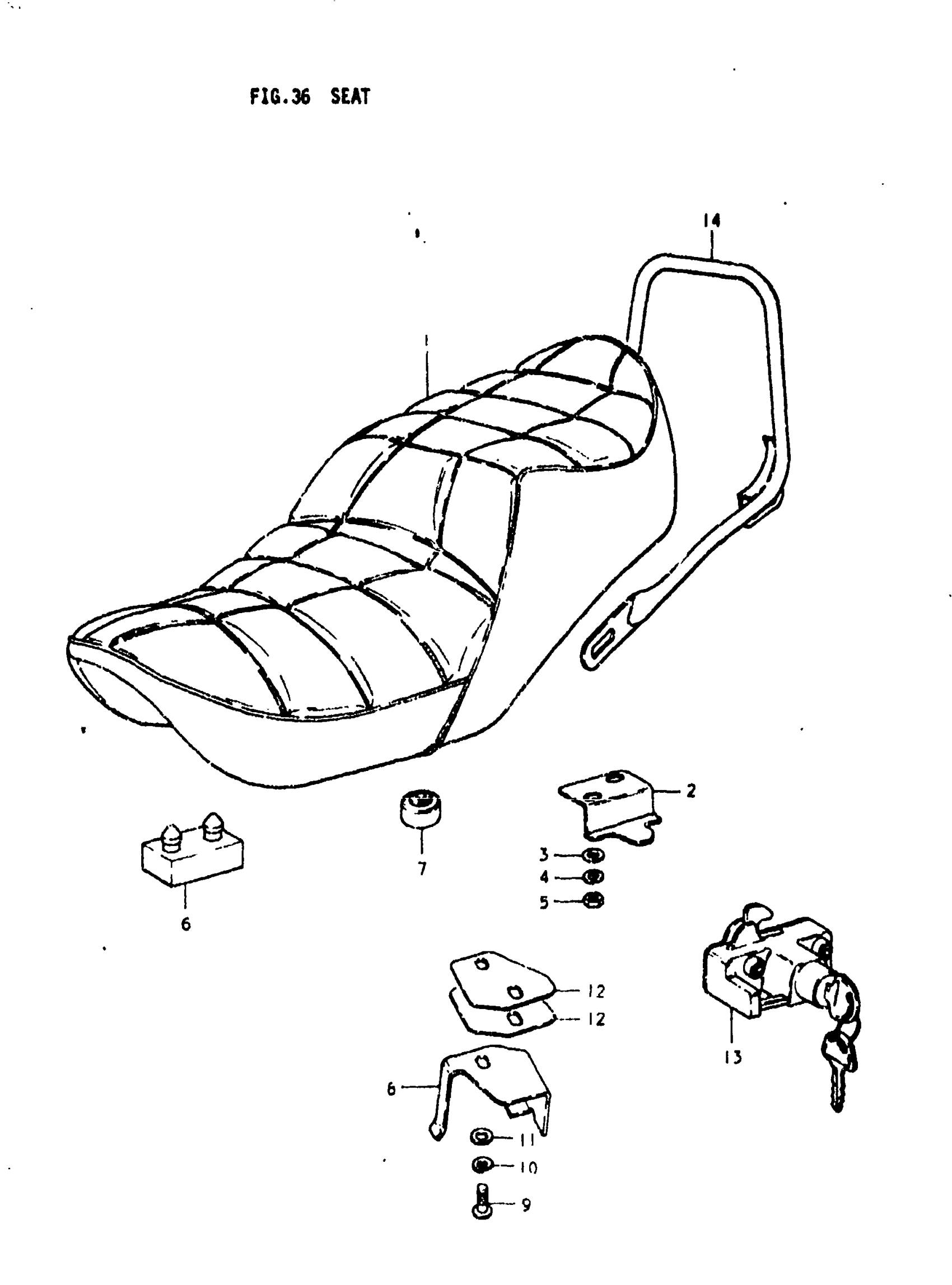

Suzuki GS750L (1979) SEAT Diagram

#

Description
Price

1

SEAT | Includes Item(s) 2 - 5

45100-45200-40N

Unavailable

2

PLATE, SEAT HOOK

45118-45200

Unavailable

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NUT

08311-12068

Unavailable

6

CUSHION

09321-08006

$2.90

7

CUSHION

09321-10001

$2.61

8

STRIKER, SEAT LOCK

45213-49100

Unavailable

9

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

SHIM

45217-49100

Unavailable

13

LOCK ASSY, SEAT This part replaces 95700-49810.

95700-49811

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 46210-45200.

46210-45201

Unavailable
