1979 Suzuki GS750L RH Handle Switch Diagram

← All diagrams

Find the part on the RH Handle Switch diagram for your 1979 Suzuki GS750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

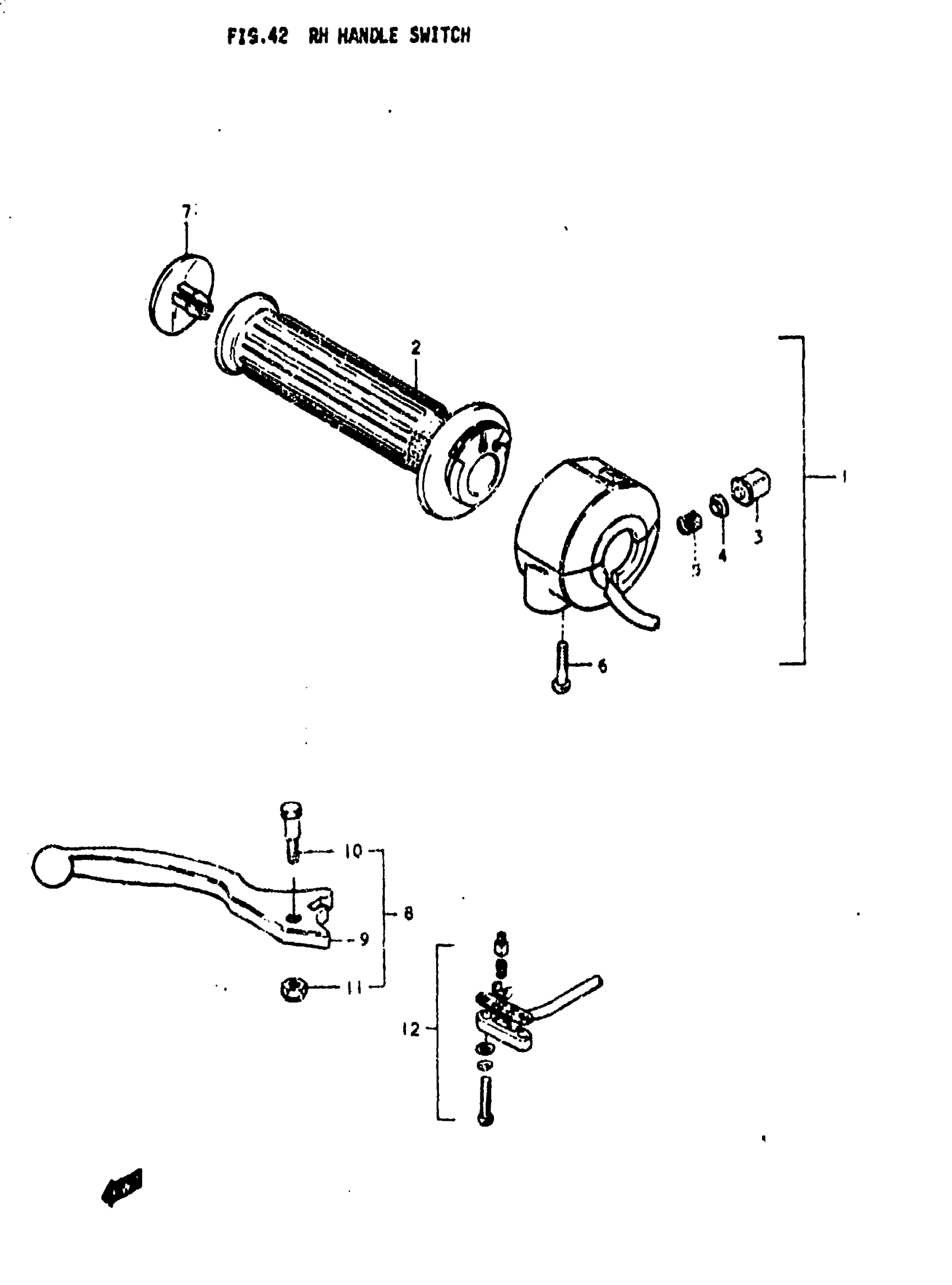

1979 Suzuki GS750L RH Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY,THROT | Includes Item(s) 2 - 6 This part replaces 57100-45200.

57100-45040

1
Out of stock

2

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

1
Out of stock

3

BUTTON, STARTING

57371-45000

1
Out of stock

4

CONTACT

57372-45000

1
Out of stock

5

SPRING

57382-45000

1
Out of stock

6

SCREW This part replaces 02112-05258.

02112-05257

2
Out of stock

7

CAP, GRIP END RH

57215-49100

1
Out of stock

8

LEVER, BRAKE | Includes Item(s) 9 - 11 This part replaces 57300-49100.

57420-49101

1
Out of stock

9

LEVER, BRAKE This part replaces 57420-49100.

57420-49101

1
Out of stock

10

BOLT This part replaces 57431-18620.

57431-18621

1
Out of stock

11

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

12

SWITCH ASSY, ST This part replaces 57460-49100.

57460-45500

1
Out of stock
