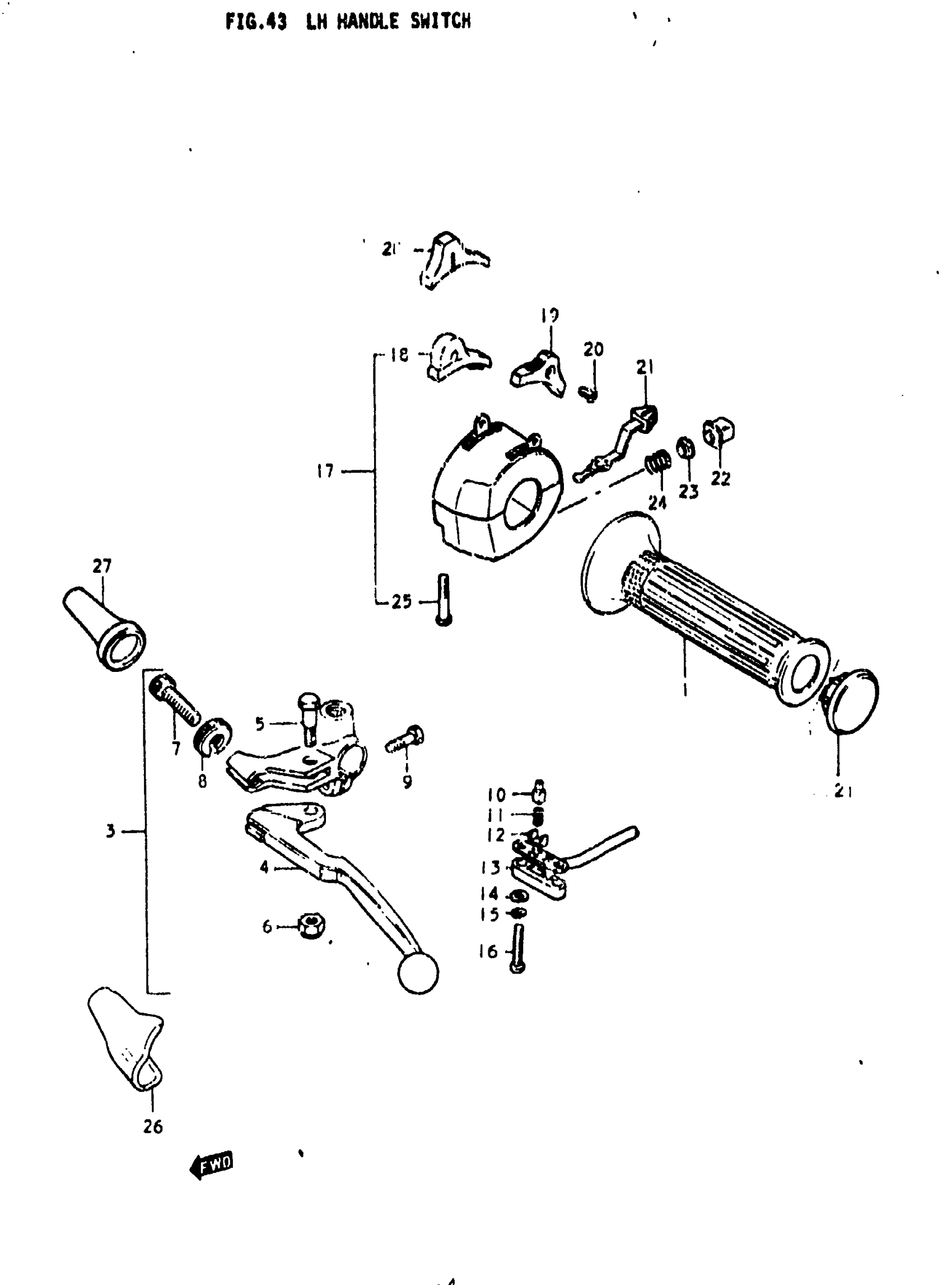

Suzuki GS750L (1979) LH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-44100.

57211-49500

$13.14

2

CAP, GRIP END LH

57216-49100

Unavailable

3

LEVER ASSY,CLUT | Includes Item(s) 4 - 16 This part replaces 57500-49110.

57500-49301

Unavailable

4

LEVER, CLUTCH This part replaces 57620-49110.

57620-49111

$21.26

5

BOLT This part replaces 57431-11010.

57431-11013

$5.95

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

7

ADJUSTER, CABLE

57441-11010

$5.14

8

NUT

57442-11010

$2.80

9

BOLT This part replaces 01107-06208.

01500-06207

$1.99

10

HOLDER This part replaces 57461-18600.

57465-18601

$3.97

11

HOLDER This part replaces 57462-18600.

57465-18601

$3.97

12

HOLDER This part replaces 57463-18600.

57465-18601

$3.97

13

COVER

57481-33010

$5.50

14

WASHER This part replaces 08322-21038.

08322-01037

$1.95

15

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

16

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

17

SWITCH ASSY, HANDLE LH | Includes Item(s) 18 - 25

37400-45603

Unavailable

18

KNOB, STOPPER

57414-45602

Unavailable

19

KNOB DIMMER SWITCH

37421-45012

$6.95

20

SCREW This part replaces 02122-03068.

02122-03067

$1.81

21

KNOB, TURN SIGNAL LAMP SWITCH

37513-45011

$8.15

22

BUTTON, HORN

57371-45000

$5.10

23

CONTACT

57372-45000

$5.02

24

SPRING

57382-45000

$3.80

25

SCREW This part replaces 02112-05258.

02112-05257

$1.49

26

COVER, CLUTCH LEVER

57661-31000

$6.83

27

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

28

KNOB, LIGHTING | OPT

37411-45012

$4.93
