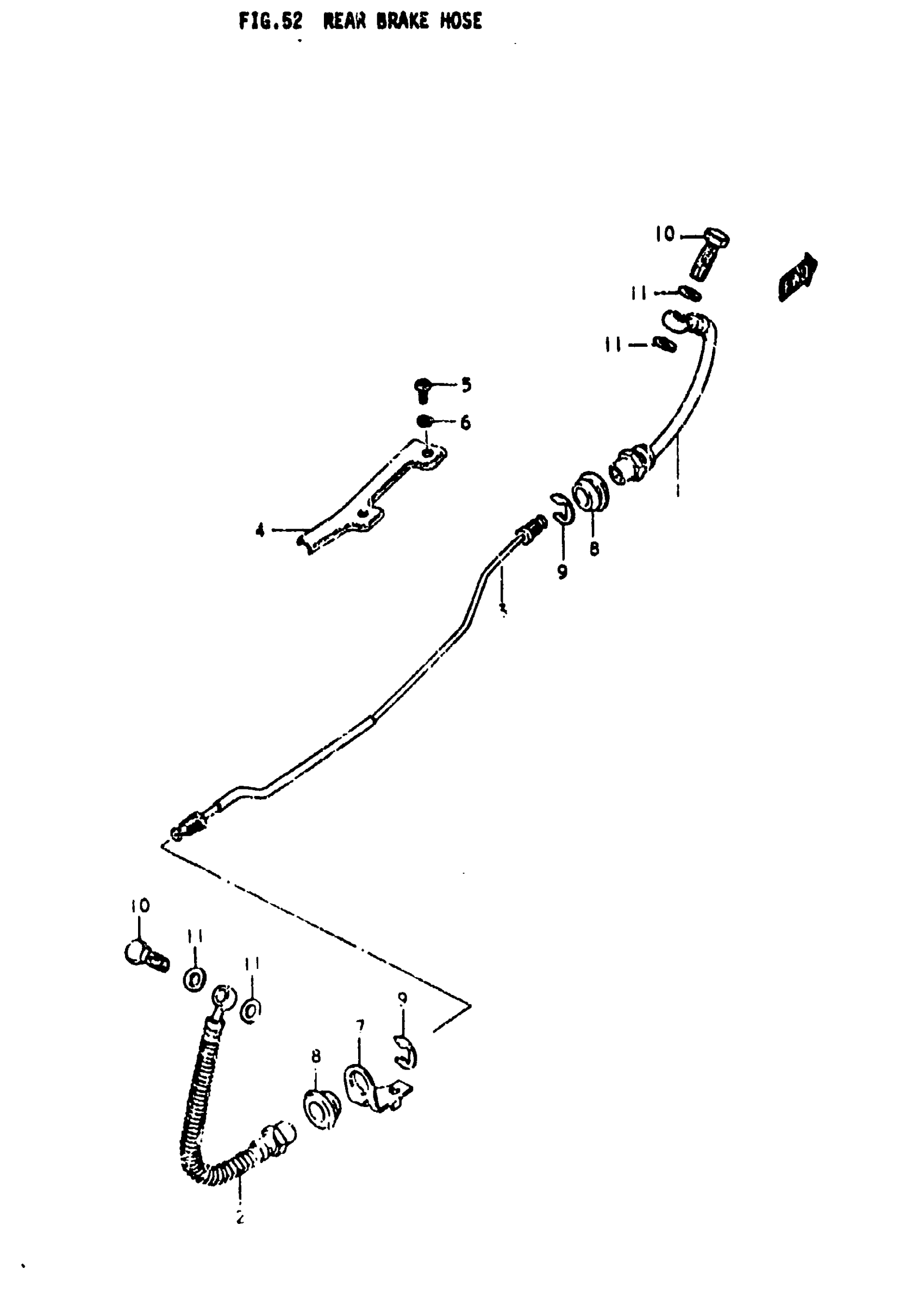

Suzuki GS750L (1979) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE, REAR BRAKE NO.2 This part replaces 69480-45000.

69240-45000

Unavailable

2

HOSE, REAR BRAKE NO.2

69240-45000

Unavailable

3

PIPE, REAR BRAKE

69250-45003

Unavailable

4

COVER, REAR BRAKE PIPE

69245-45000

Unavailable

5

BOLT | 6x8

09100-06011

$1.67

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

GUIDE, BRAKE HOSE

69243-47000

Unavailable

8

GROMMET,BRAKE H This part replaces 59244-36200.

59244-36201

$4.00

9

E-RING, BUSH This part replaces 08332-11098.

08332-1109A

$1.80

10

UNION This part replaces 09360-10003.

09360-10017

$3.42

11

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
